Devices External dimensions and connections
High-
attenuation
radio noise
reduction
filter
Zero-phase
ferrite core-
type radio
noise
reduction
filter

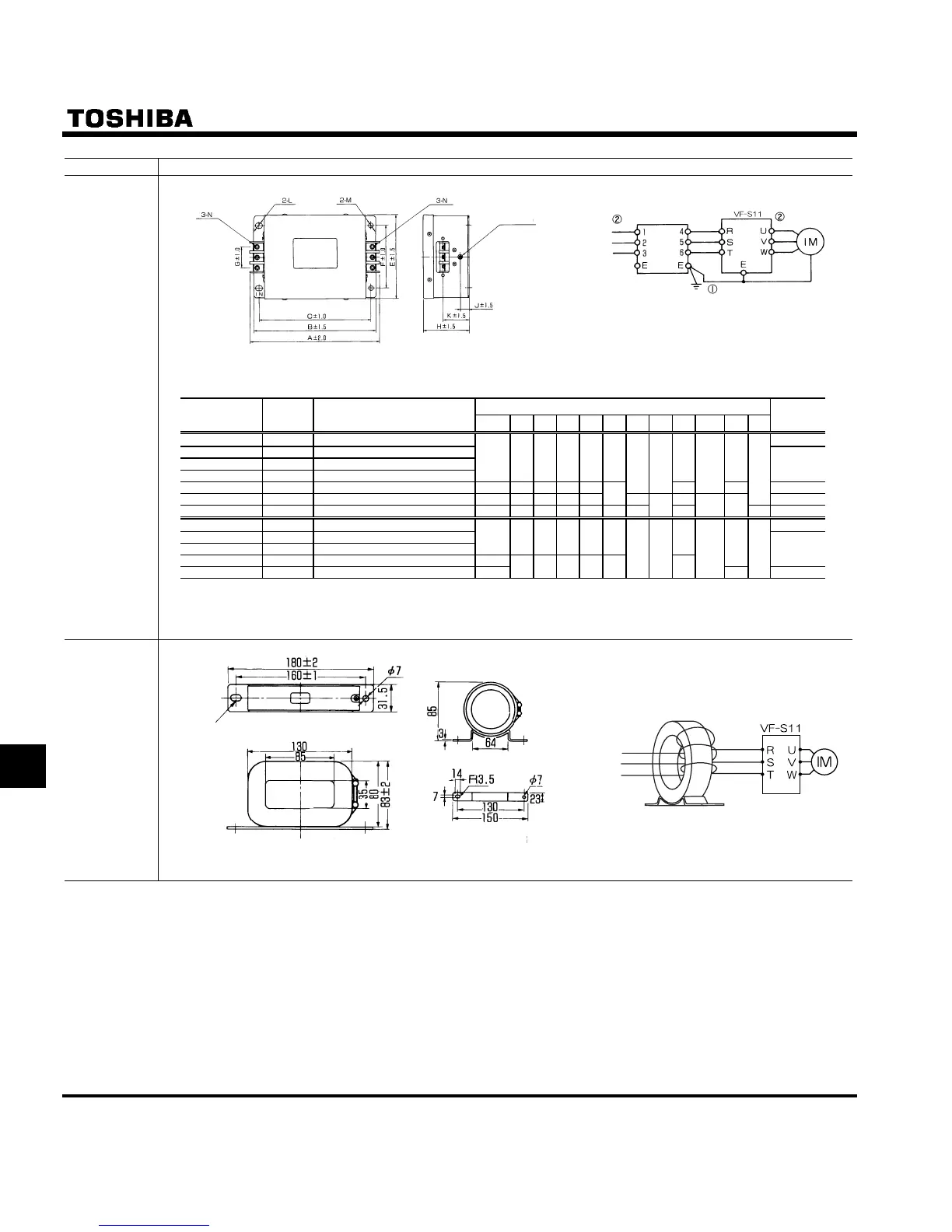

Dimensions (mm)
Reactor model
Rated
current
(A)
Inverter type
ABCEFGHJKMNP
Approx.
weight
(kg)
NF3005A-MJ 5
VFS11-2002PM ∼ VFS11-2007PM
1.0
NF3015A-MJ 15 VFS11-2015PM, VFS11-2022PM
NF3020A-MJ 20 VFS11-2037PM
NF3030A-MJ 30 VFS11-2055PM
174.5 160 145 110 80 32 45 M4
1.6
NF3040A-MJ 40 VFS11-2075PM 217.5 200 185 120 90
70 20
43
φ5.5
M5 2.7
NF3050A-MJ 50 VFS11-2110PM 267.5 250 235 170 140
44
90 60
M4
4.6
NF3080A-MJ 80 VFS11-2150PM 294.5 280 260 170 150 37 100
30
65
φ6.5
M6
M6 7.0
NF3010C-MJ 10
VFS11-4004 ∼ 4037PL
1.4
NF3015C-MJ 15 VFS11-4055PL
NF3020C-MJ 20 VFS11-4075PL
174.5 160 145 110 80 32 45
NF3030C-MJ 30 VFS11-4110PL 177.5
M4
1.6
NF3040C-MJ 40 VFS11-4150PL 217.5
200 185 120 90 44
70 20
43
φ5.5
M5
M4
2.7
Note: Every inverter with a model number ending in -PL comes standard with a built-in noise filter
almost equal in size and performance to this filter.
Notes: (1) Noise filter should be connected to the
inverter main circuit and the
control circuit primary-side.
(2) Output cable should be kept away from
the input cable.
P (Earth terminal)
Power source
LC filter
Zero-phase reactor
Motor
Power source
Unit :mm
Input or output cable should be coiled over
4-times. RC5078 is recommended for the
models 3.7kW or less.
Model: RC9129
Model: RC5078
7 X14 slotted hole
