TP-Link TL-SG5428 User Manual

7
Login local Mode: It requires username and password, which are both admin by default.
Login Mode: It requires no username and password, but a connection password is required.
Note:
1. Before Telnet login, you are required to configure Telnet login mode and login
authentication information through Console connection. The relevant CLI commands
should be entered in the prompted DOS screen shown in Figure 1-5 Log in the Switch
.
2. You will enter to User EXEC Mode after Telnet connection is successfully created, but for
switch security concerns, you are required to set a password which functions to further
access to Privileged EXEC Mode when you configure the login mode.
 Login Local Mode

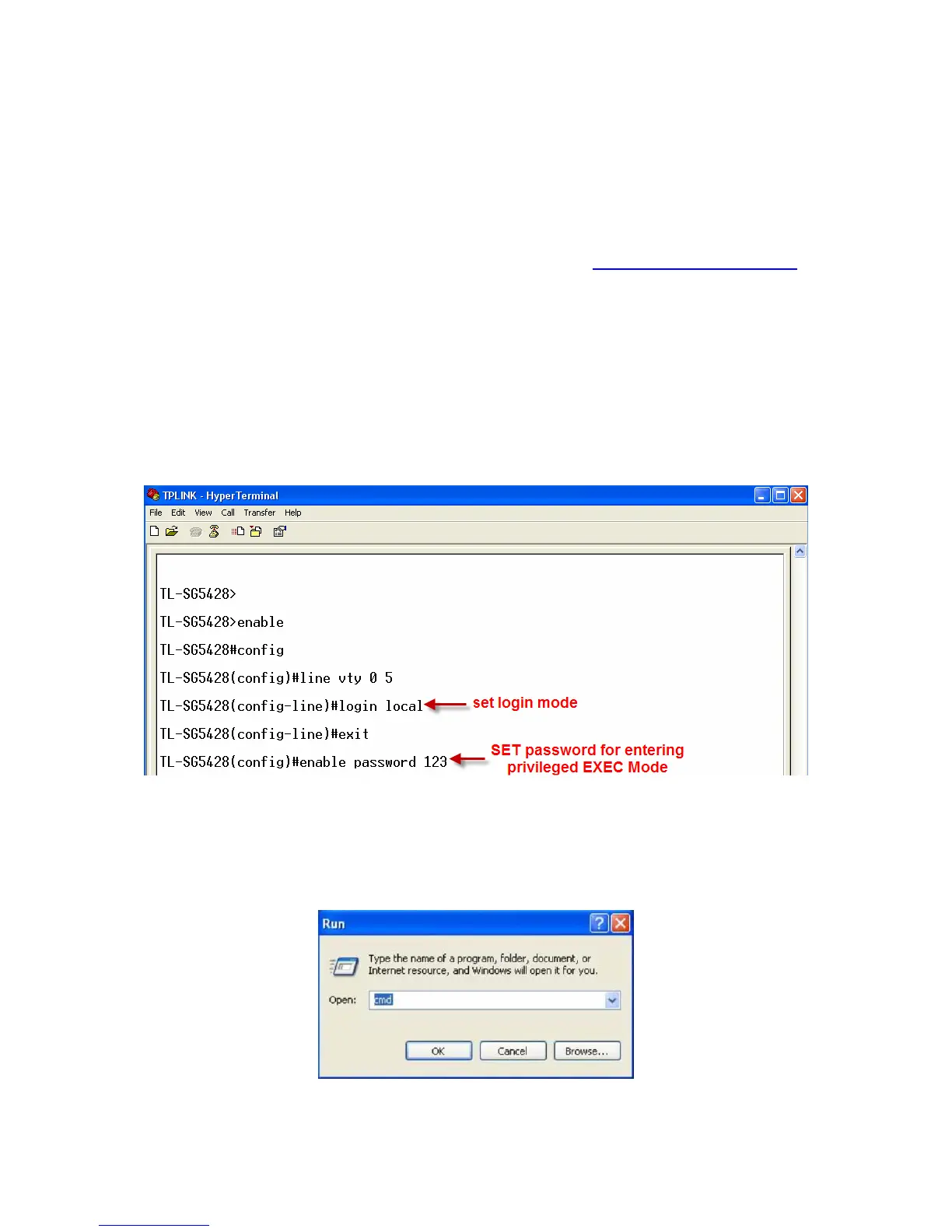

Firstly, configure the Telnet login mode as “login local” and set the password for entering into the
Privileged EXEC Mode as 123 in the prompted DOS screen shown in Figure 1-6.
Figure 1-6 Configure login local mode
Now, you can logon by Telnet in login local mode.
1. Make sure the switch and the PC are in the same LAN. Click Start → Run to open the Run
window, and type cmd in the prompt Run window as Figure 1-7 and click OK.
Figure 1-7 Run Window
