9

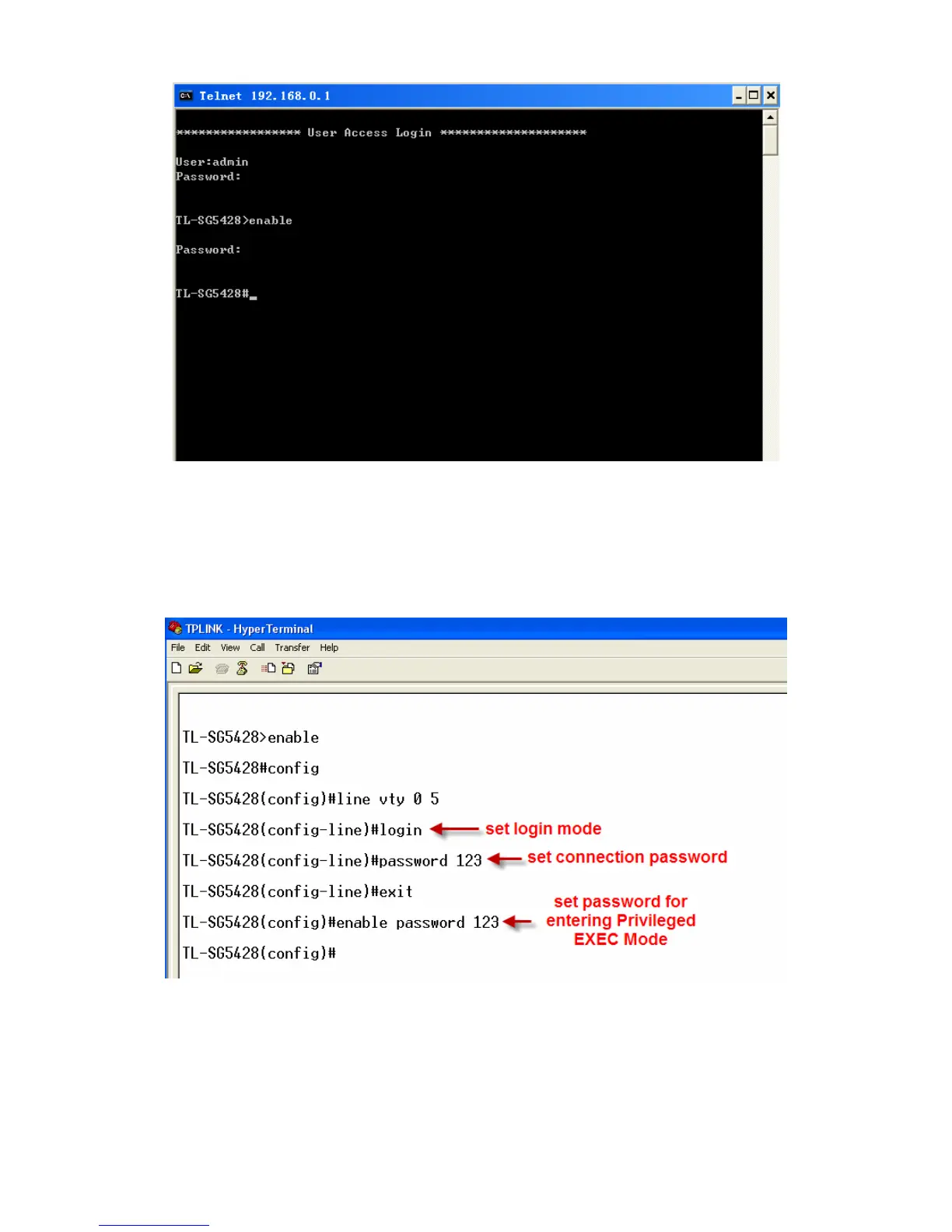

Figure 1-10 Enter into the Privileged EXEC Mode
Login Mode
Firstly configure the Telnet login mode as “login”, and both the connection password and the
Privileged EXEC Mode password as 123 in the prompted DOS screen shown in Figure 1-11.
Figure 1-11 Configure login mode
Now, you can logon by Telnet in login mode:
1. Open Telnet, then type telnet 192.168.0.1 in the command prompt shown as Figure 1-12, and
press the En
ter button.
