TRIATEK FMS-1650 User Manual

SYSTEM SETUP
Confi guring Secondary Analog Inputs
FMS-1650
TRIATEK reserves the right to change product specifications without notice.
- 25 -
Setting up Thermistor Inputs
The FMS-1650 includes two (2) dedicated thermistor inputs for
measuring and monitoring resistive temperature sensors, or
thermistors. These inputs may be configured for use with negative
temperature coefficient (NTC) Type 2 or Type 3 thermistors from BAPI®
or other manufacturers.
BAPI® manufactures several combination temperature and
humidity sensor products which are ideal for use with the FMS-
1650 for complete room monitoring and control applications.
Triatek recommends BAPI® part no. BA/10K-2-H200-R, which is a
combination temperature and humidity sensor includes a NTC Type 2
thermistor for temperature sensing and a ±2% humidity transmitter with
a 0 to 10V output.

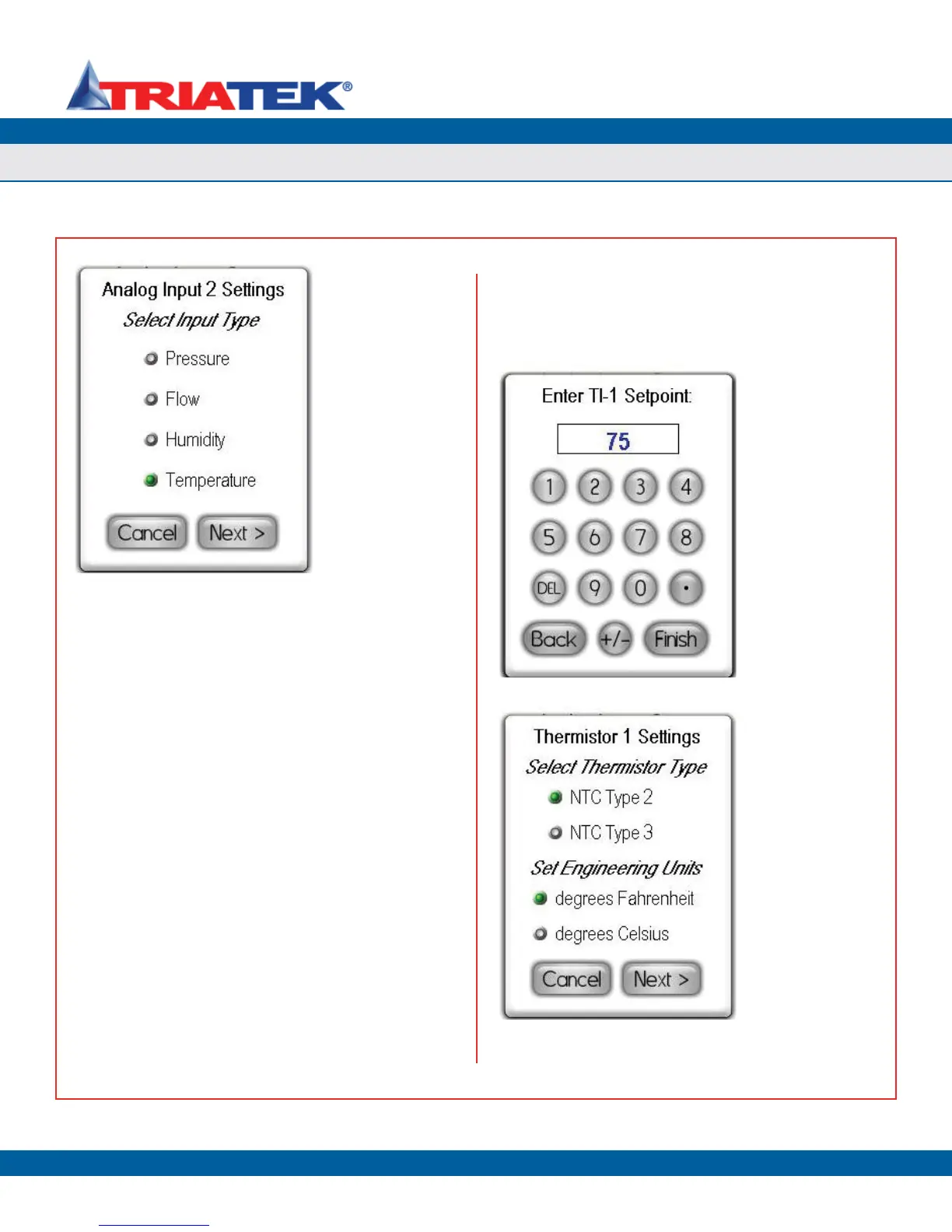

Selecting Thermistor Input 1 or Thermistor Input 2 on the second page
of the Analog Inputs Setup menu invokes the Thermistor x Settings
configuration screen as shown in Figure 50. From this configuration
popup, the user may specify which type of NTC thermistor device
is connected and the engineering units for displaying the monitored
temperature on the main screen. If the thermistor input is being
utilized as part of a temperature control scheme, then clicking the
Next button at the Thermistor x Settings popup invokes the setpoint
entry configuration screen shown in Figure 49 where the user may
enter a target temperature setpoint. The thermistor input must also be
mapped to one of the analog outputs that has been configured for PID
control mode.
Figure 47. In lieu of
using a thermistor
input, a secondary
analog input may
be configured for
temperature sensors
which output a voltage
or current.
Figure 49. A
temperature setpoint
may be entered here
for temperature control
applications using
one of the PID analog
outputs.
Figure 50. The FMS-
1650 supports the
use of NTC Type 2
and 3 thermistors for
temperature control
and/or monitoring
applications.
