TRIATEK FMS-1650 - Setting the Network or MAC Address

UNIT SETUP
Confi guring Network Settings
FMS-1650
TRIATEK reserves the right to change product specifications without notice.
- 19 -
Setting the Network or MAC Address
The Set Address option on the Network Setup menu allows the
network or MAC address to be specified as required. For BACnet®
MS/TP networks, the valid range of MAC addresses that support
master mode is 1 to 127. For Metasys® N2 Open networks, the valid
range of network addresses is 1 to 255.
Selecting the Set Address option on the Network Setup menu invokes
the Enter MAC Address configuration screen if the unit has been
configured for BACnet® protocol support. Otherwise, the Enter
Network Address configuration screen is invoked, which prompts the
user for a new Metasys® N2 node address. Use the slider to specify
a new address. The blue increment and decrement buttons may be
used to change the displayed address one step at a time.
The next section details the options available on the System Setup
menus.
(For overview, see FLOW DIAGRAMS - Page 73)

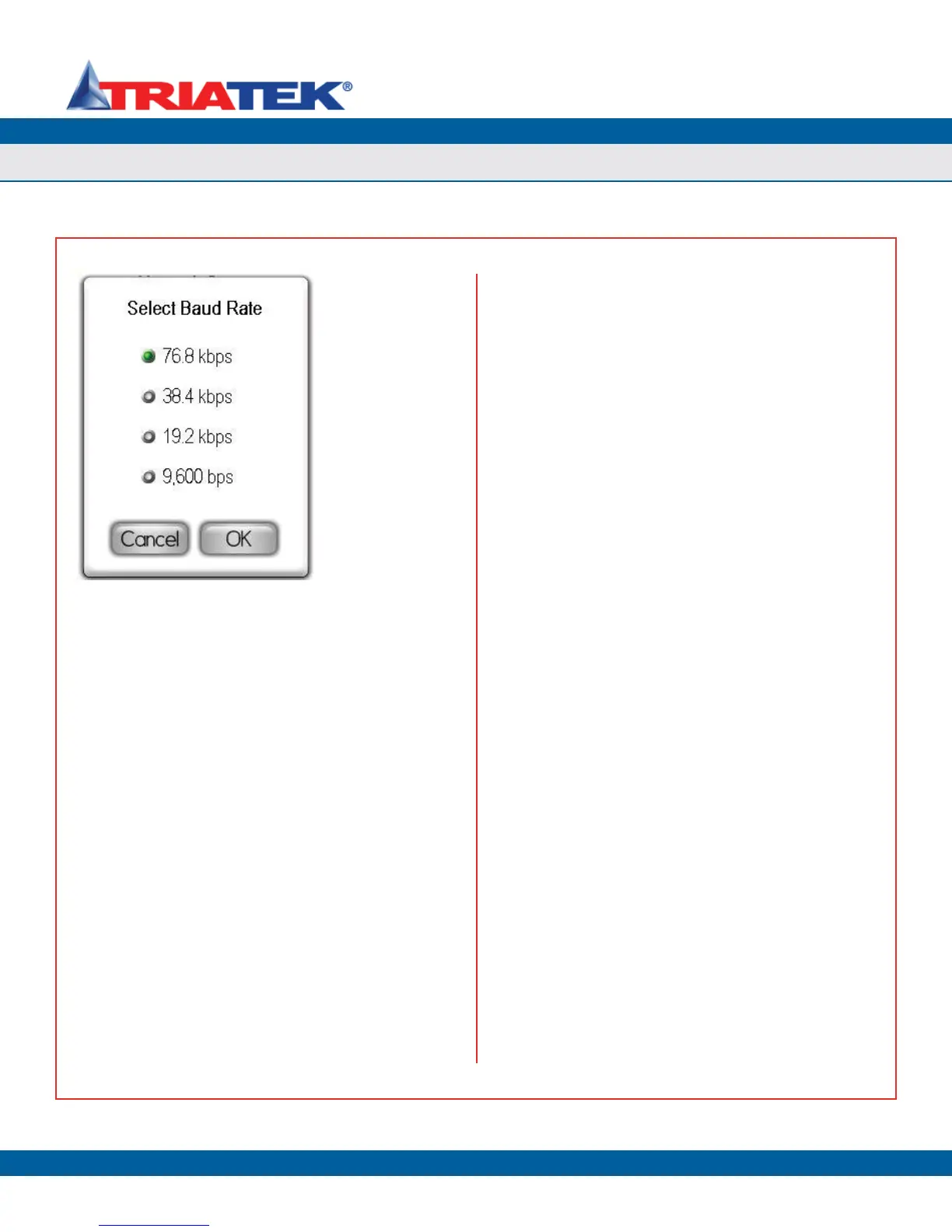

Figure 33. Baud rate
may be selected from
one of four standard
BACnet rates.
