Maintenance
106
T2-C User Guide
2

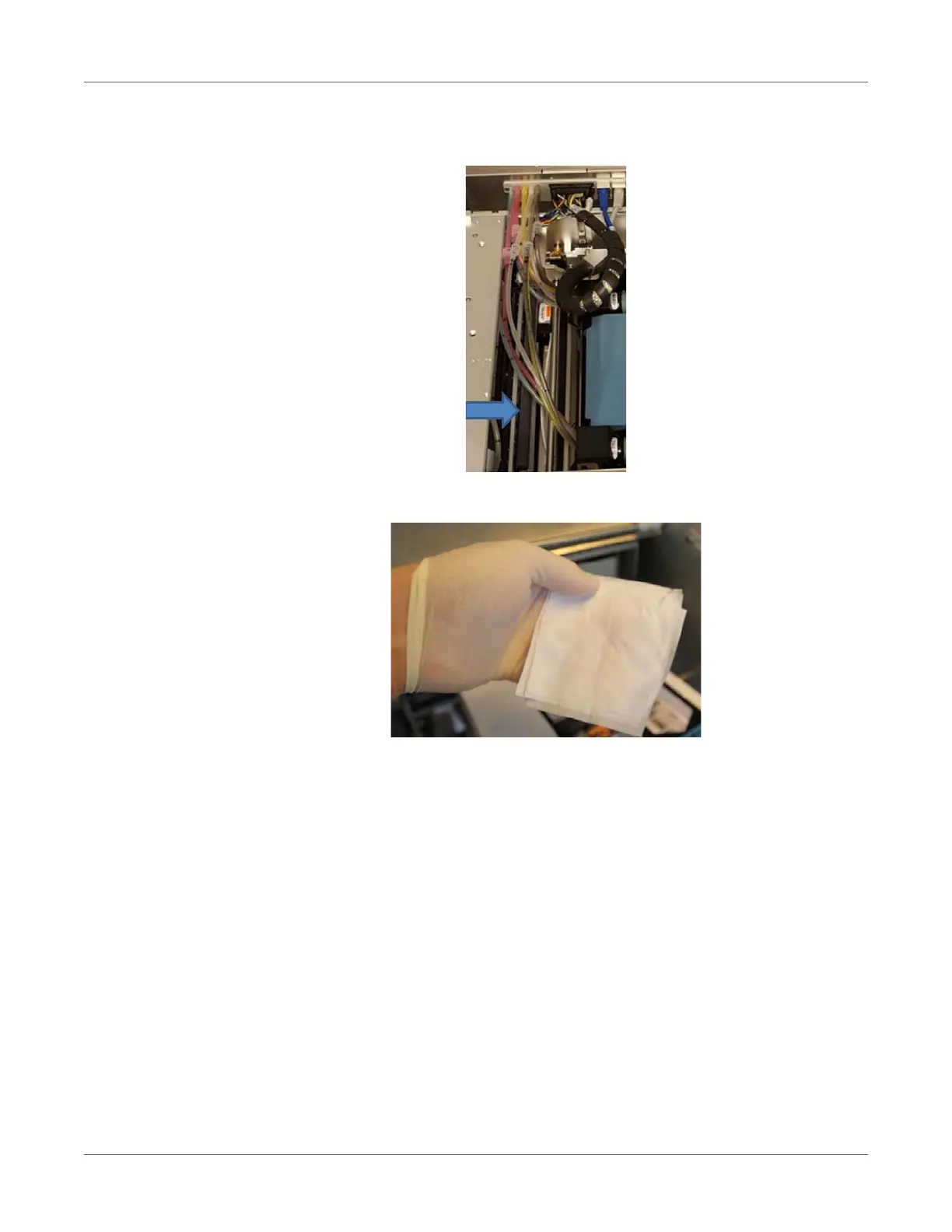

Press the
Home Mainte
nance Module
button in the
TrojanTwo tab > Hand
ling
menu to
gain access to the printhead from below.
3
Use distilled water and make a piece of lint-free
cloth wet.
Note:
USE LINT-FREE CLOTH ONLY! Using other tha
n lint-free cloth can ca
use blocked
printhead nozzles due to lose fibers or scr
atch the printhead damaging it physically.
105
107
