Power on
T2-C User Guide 21
1 Connect the black QA chip reader cables.
Connect one QA chip reader cable to each ink tank. It does not matter which QA chip reader
cable is connected to which ink tank. However, the length of these cables are made to best
fit to the closest ink tank.

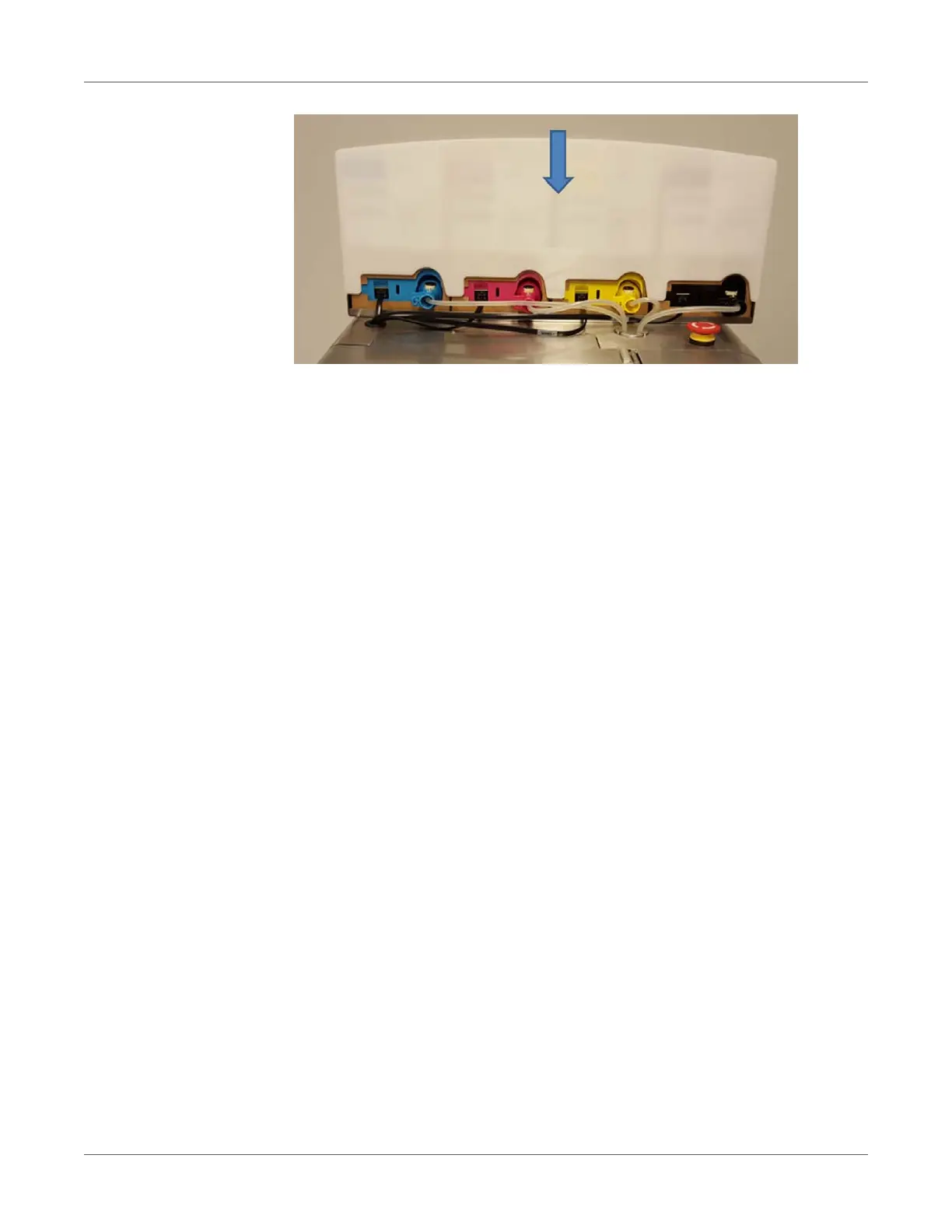

2 Connect the matching ink tube connector to each ink tank. The particular ink tube
connector's color is matched to the corresponding ink tank. Once the connector is pushed
onto the matching slot on the ink tank, the connector clicks into the right position.
Warning: Do not mix up the colors! Each ink tube connector has to be connected to the
matching colored ink tank. Mixing up the ink tube connectors (if the yellow connector is
connected to the black ink tank, for example) will contaminate the inks in the system and
leads to significant financial damage because the contaminated ink is wasted.
