Trojan T2-C User Manual

Loading the label material
32 T2-C User Guide

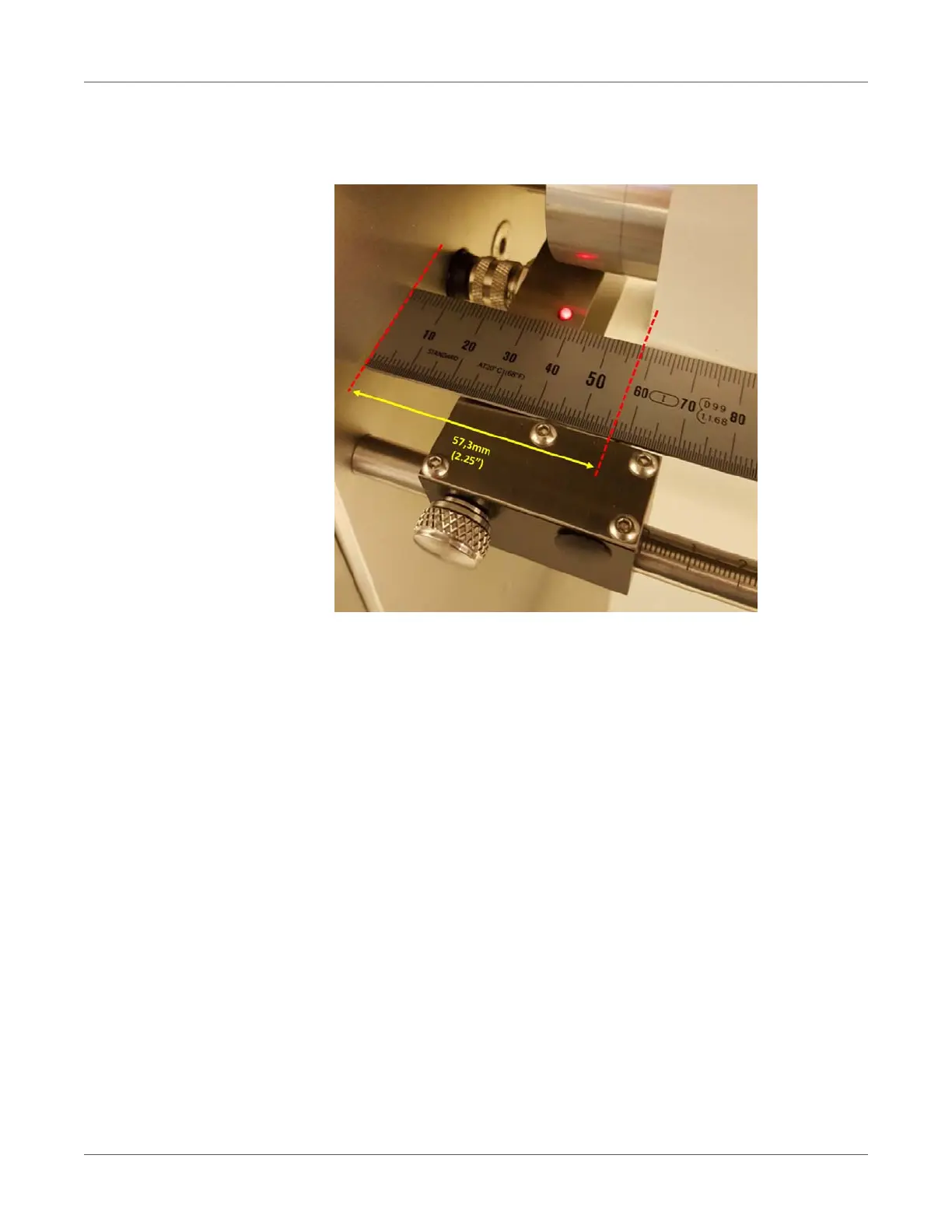

5 Adjust the left edge of the media roll to be 57.3mm (2.25") from the wall. This ensures that
the media left edge will be at the same position as the left edge of the printhead nozzles
(where the printing zone begins).
Note: It does not have to be exactly 57.3mm as that is difficult to measure exactly with an
ordinary ruler. The best way is to set it around 57mm from the wall. The label edge sensor
will make the position correction later, once it is set. See “Adjusting the label edge sensor”
on page 35.

Trojan T2-C Specifications

General

Brand	Trojan
Model	T2-C
Category	Label Maker
Language	English
