Loading the label material
T2-C User Guide 33

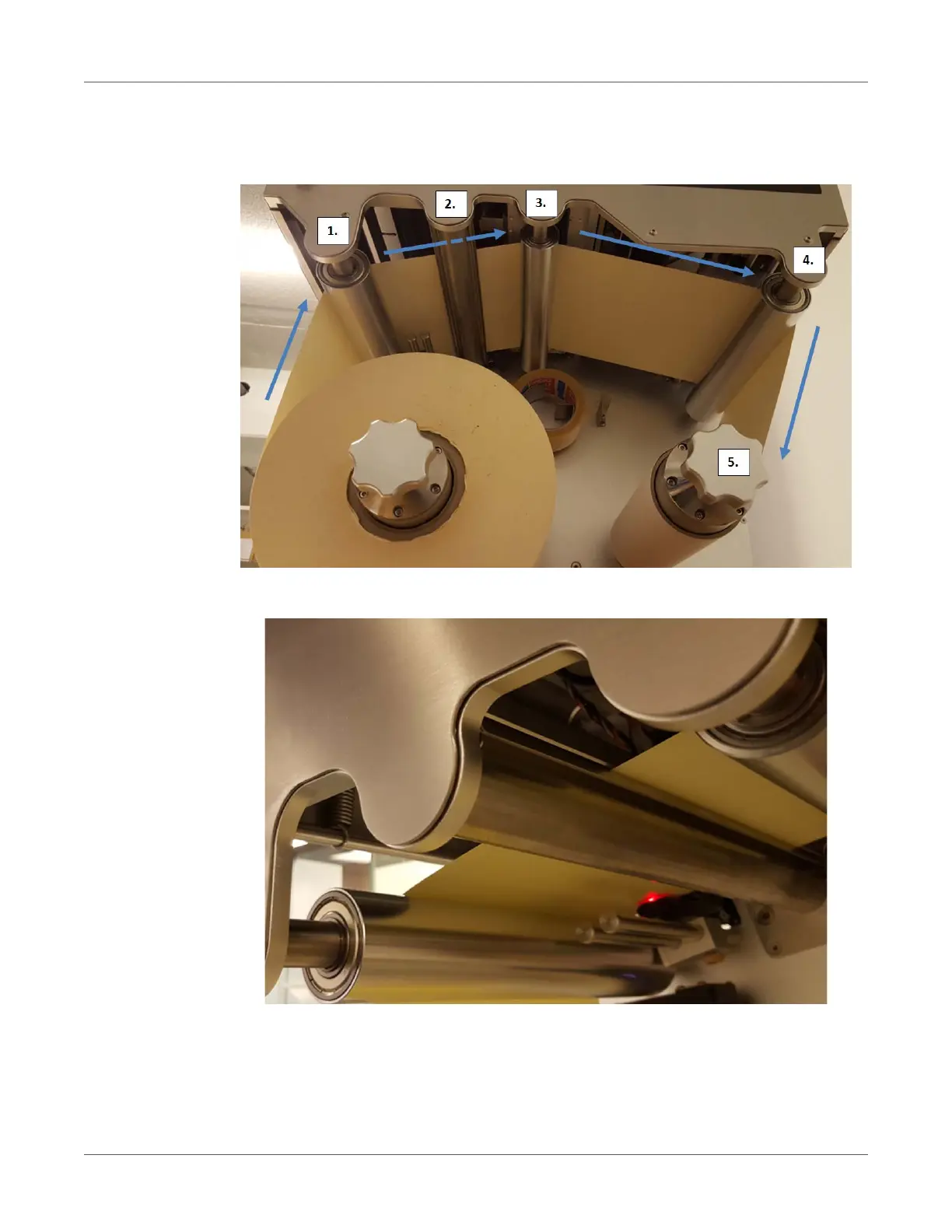

6 Thread the label material over the first metal roll (1), then between the NIP clamps (2), then
over the metal roll under the printhead (3), then over the last metal roll (4) and fix it with
adhesive tape to an empty paper core on the rewinder shaft (5).
Media going through between the NIP clamps:
