GPS MODE
By connecting a GPS Unit, the scanner can operate the following functions.
 Automatic lockout control for Scan Systems, Sites, and Channel Groups
 Navigation to POI (Point Of Interest)
 Location Alerts

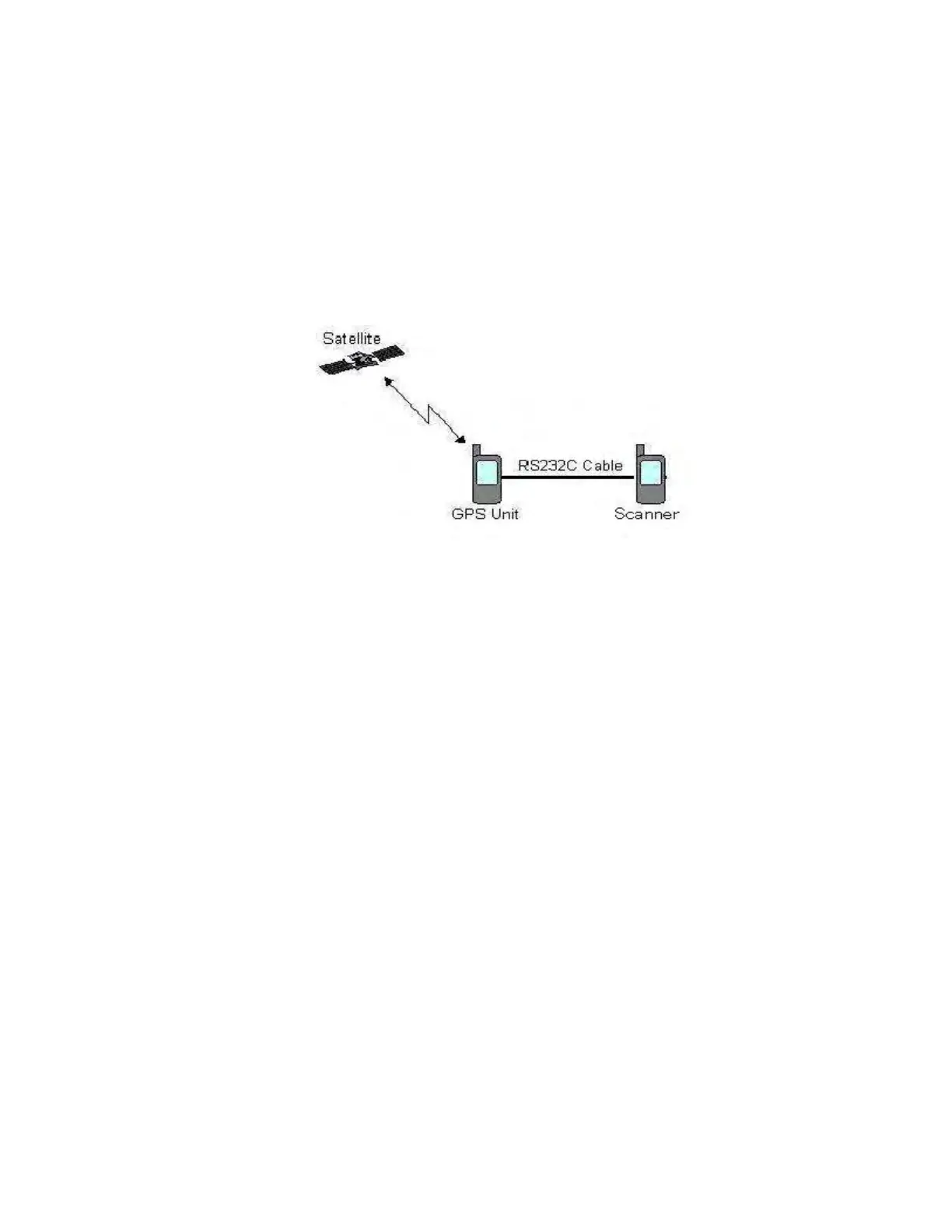

This mode guides to the destination by connecting a GPS Unit to the serial port of the scanner and
receiving location data through it.
You must set the scanner’s baud rate to the same as the GPS unit. This is normally 4800 bps
The formats of the GPS data that the scanner can receive are only GGA (Global Positioning System Fix
Data) and RMC (Recommended Minimum Specific GNSS Data) based on “NMEA-0183 ver.3.01”.
Display Mode in GPS Mode
There are 6 kinds of Display Mode in GPS Mode; GPS DATA, ETA, Clock, Elevation, Speed and Location. And
there are two displays for a GPS Data receipt error.
If you do not select any POI, the Display Mode can be selected from GPS DATA and Location. Press [6 /
RIGHT / disp] in Function Mode to change the Display Mode to the opposite side.
Or, if a POI is selected, the Display Mode can be selected from ETA, Clock, Elevation, Speed and Location.
Press [6 / RIGHT / disp]in Function Mode to toggle the Display Modes in order.
*In GPS Mode, the 4th line displays the background operation of Scanner Mode. However, nothing is
displayed on this area when the scanner goes to GPS Mode from Band Scope Mode.
