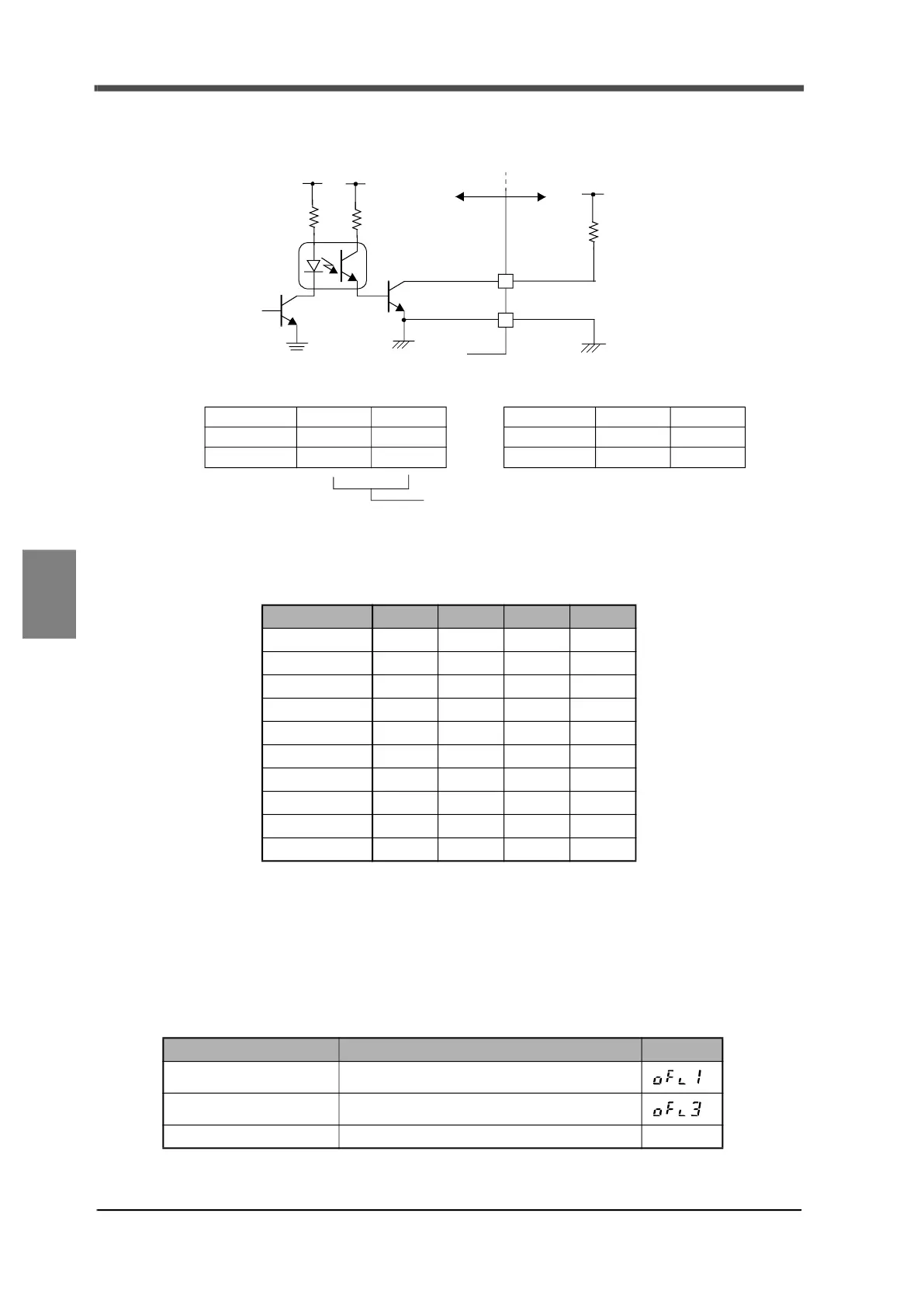

6-12-3.Equivalent circuit (output)
Signal output circuit is open collector output.
6-12-4.BCD data output
Outputs the weight value in 5-digit BCD. Each digit is output as 0/1 data in 4 bits (8, 4, 2, 1).
6-12-5.Polar output (MINUS)
Outputs the polarity of weight value being output as BCD data.
Outputs "0" when the polarity is positive (+), and "1" when negative (-).
6-12-6.Over status output (OVER)
Outputs 1 (over) when the weight value being output as BCD data satisfies the following conditions.
Digit data 8 4 2 1
0 0 0 0 0
1 0 0 0 1
2 0 0 1 0
3 0 0 1 1
4 0 1 0 0
5 0 1 0 1
6 0 1 1 0
7 0 1 1 1
8 1 0 0 0
9 1 0 0 1
Weight value Conditional equation
Net weight (NET) Net weight > Setting value for net over
Gross weight (GROSS) Gross weight > Setting value for gross over
Tare (TARE) Tare > 99999 (over digit)
F701+
Inside
COM
Vext
Vceo=30V (max)
Ic=120mA (max)
● Internal transistor status
Output data Negative Positive
0 OFF ON
1 ON OFF
● Level of output pin
Output data Negative Positive
0 H L
1 L H
Outside
Vcc
+12V
In accordance with the logic switch (28 pin)
