4 Performing Final Discharge Control
28
Performing Final Discharge
Chapter
4
Final discharge control is a procedure to control discharge of raw material for each final from tanks
such as hoppers. A constant amount can be accurately discharged by appropriately combining control
settings such as final/set point 2/set point 1/compensation, judging settings such as over/under/go and
timer settings such as comparison inhibit/judging and so on.
For discharge procedures, ther
e are feed weighing and discharge weighing, and for control procedures,
there are simple comparison control and sequence control.
4-1. Feed weighing and discharge weighing
Feed weighing Weighing procedure to control weight value when feeding raw material into
weighing tank (hopper).
Discharge weighing Weighing procedure to control weight value when refilling raw material into
weighing tank (hopper) and dis
charging raw material from the tank.
4-2. Simple comparison control and sequence control
Difference between simple comparison control and sequence control
Item Simple comparison control Sequence control
Final discharge condition Compares regularly
Starts comparison after the start signal is
input
SP1 Turns ON when the condition is met
Turns ON after the start signal is input
and turns OFF after the condition is met
SP2 Turns ON when the condition is met
Turns ON after the start signal is input
and turns OFF after the condition is met
SP3 Turns ON when the condition is met
Turns ON after the
start signal is input
and turns OFF after the condition is met
Under Turns ON when the condition is met Turns ON when the condition is met
Over Turns ON when the condition is met Turns ON when the condition is met
Go Turns ON when the condition is met Turns ON when the condition is met
Feeding control/
Discharging control
○ ○
External judging function for over/
under comparison
○ ○
External judging function for upp
er/
lower limit comparison
○
×
External hold input function
○
×
Adjust feeding function ×
○
Power failure restoration function ×
○
Pause input function ×
○
Condition for start of next weighing
From the point when the weight value
falls below 25% after completion of the
previous measurement
After the start signal is input after com-
pletion of the previous measurement
4 Performing Final Discharge Control
Raw material
Hopper
Load cell→
Raw material
Load cell→
Hopper

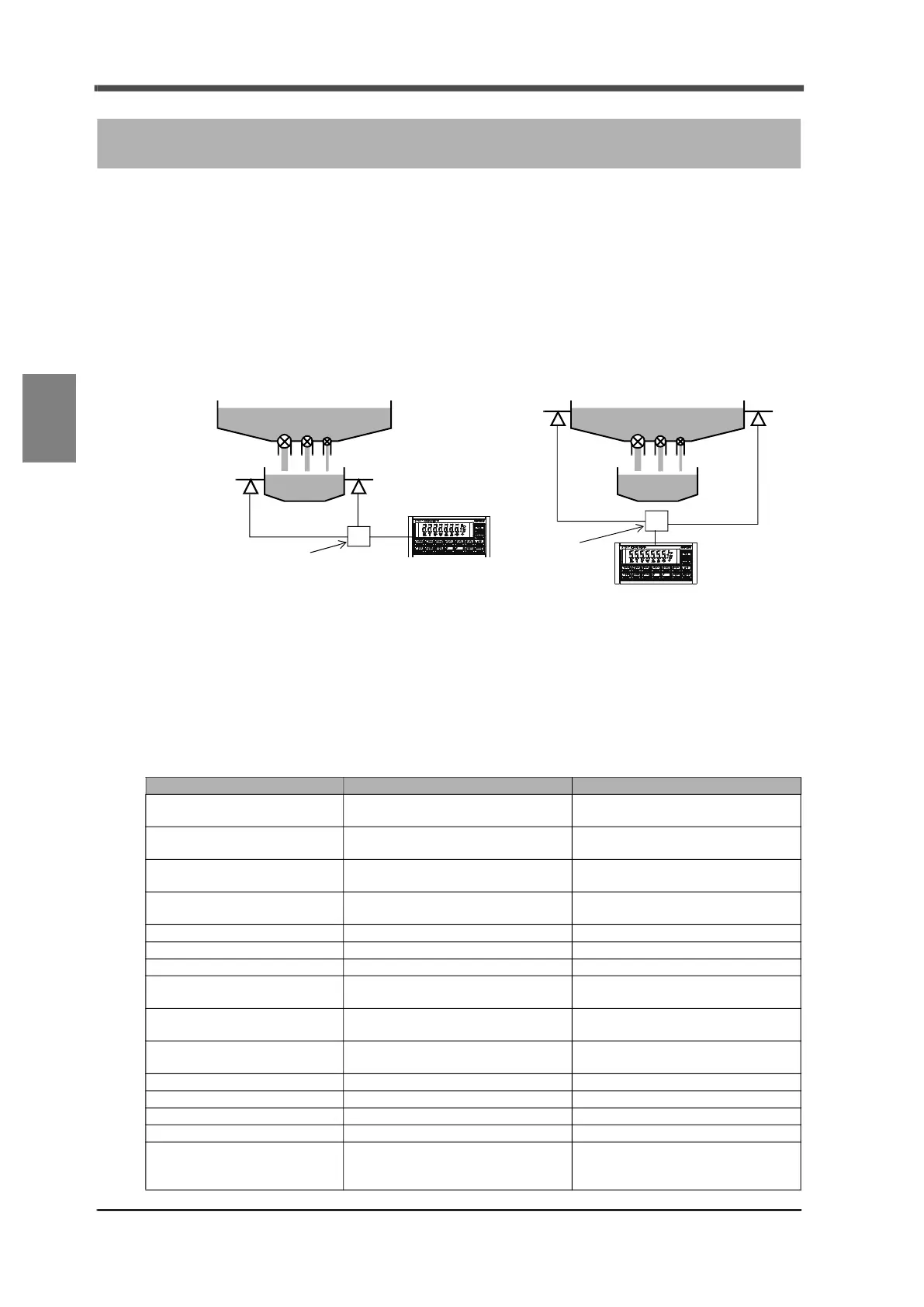

<Feed weighing> <Discharge weighing>
Junction box
Junction box
F701+
F701+
