4 Performing Final Discharge Control
36
Performing Final Discharge
Chapter
4
4-8-7.Restart setting (SP1, SP2, SP3)
This parameter determines the restarting
condition for the weighing operation of F701+.
The restarting condition on restart can be set as
percentages (%) of the ranges of each of SP1
(set point 1), SP2 (set point 2) and SP3 (set
point 3). In addition, [sequence mode (setting mode 2-4)/2: sequence mode (power failure restoration
ON)] must be set in order to re
start weighing after a power failure.

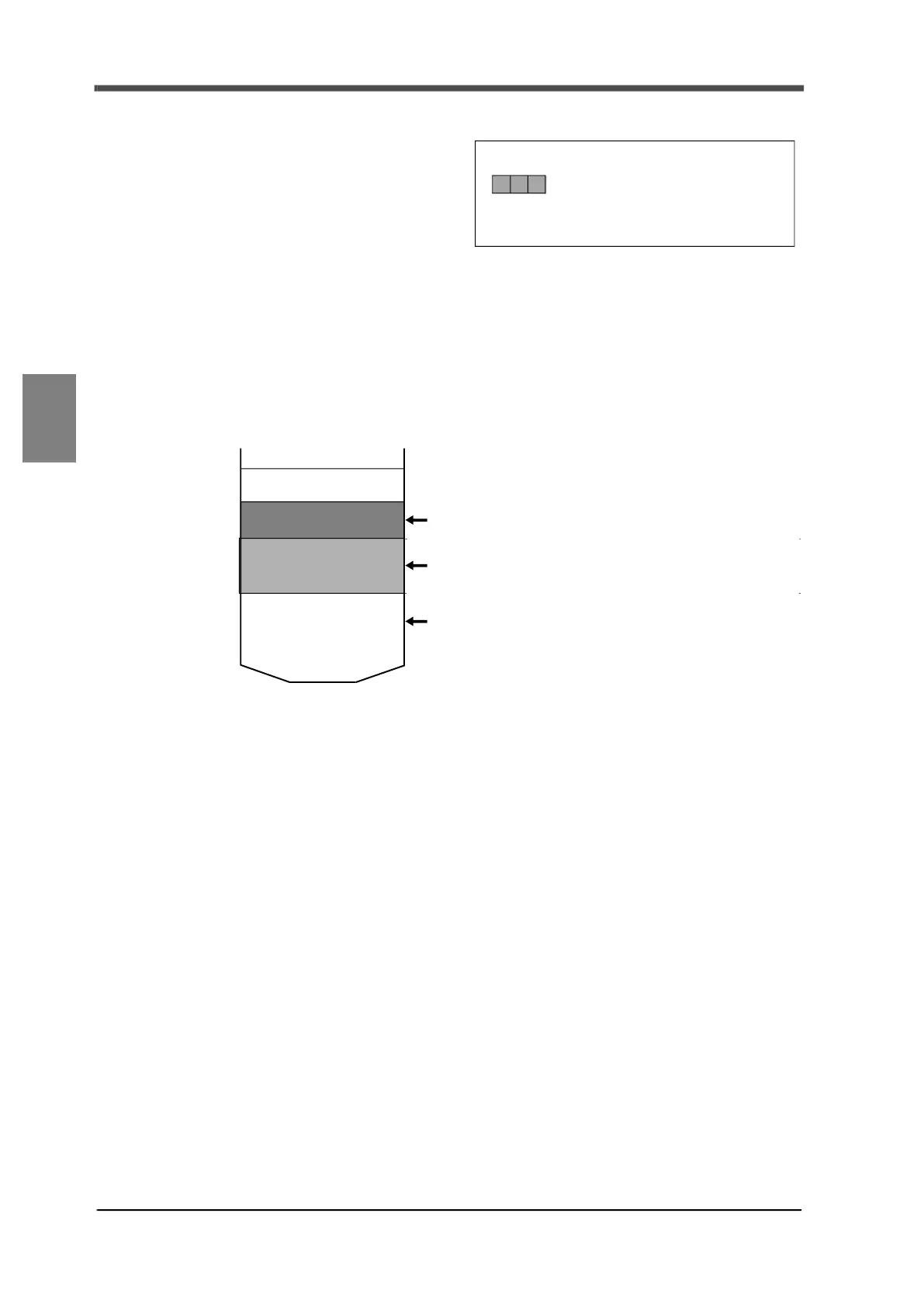

■Example condition for restarting operation using the restart setting
* Refer to P.52 "5-5.Sequence control (with pause input/power failure restoration) [CASE 1]"P.54 "5-
6.Sequence control (with pause input/power failure restoration) [CASE 2]"P.56 "5-7.Sequence
control (with pause input/power failure restoration) [CASE 3]" for the timing chart.
* Area indicates the
range of the weighing setting of SP1, SP2 and SP3.
SP1 (set point 1) area The weight value of (1)
SP2 (set point 2) area The weight value of (2) - (1)
SP1 (set point 1) area The weight value of (3) - (2)
[Restart setting] (Setting mode 5-3, 5-4, 5-5)
(Input range: 0 to 100)
SP1 range Setting mode 5-3
SP2 range Setting mode 5-4
SP3 range Setting mode 5-5
(when weighing 100.00 kg)
Weighing setting Area Restart setting example Operation when restarting
Final
Final - free fall
SP3 area 100%
(100% = 10.00kg)
Final - set point 2
SP2 area 100%
(100% = 30.00kg)
Final - set point 1
SP1 area 100%
(100% = 50.00kg)
[Setting mode 5-5]
Restart setting set point 3
50% (10.00kg × 0.5 = 5.00kg)
100.00kg
(3) 90.00kg *2
(2) 80.00kg *2
(1) 50.00 kg *2
[Setting mode 5-4]
Restart setting set point 2
80% (30.00kg × 0.8 = 24.00kg)
[Setting mode 5-3]
Restart setting set point 1
80% (50.00kg × 0.8 = 40.00kg)
SP3 is ON during adjust
feeding time when over
85.00kg
Only SP3 turns ON
when over 74.00kg
SP2 and SP3 turn ON
when over 40.00kg.
example after pause
