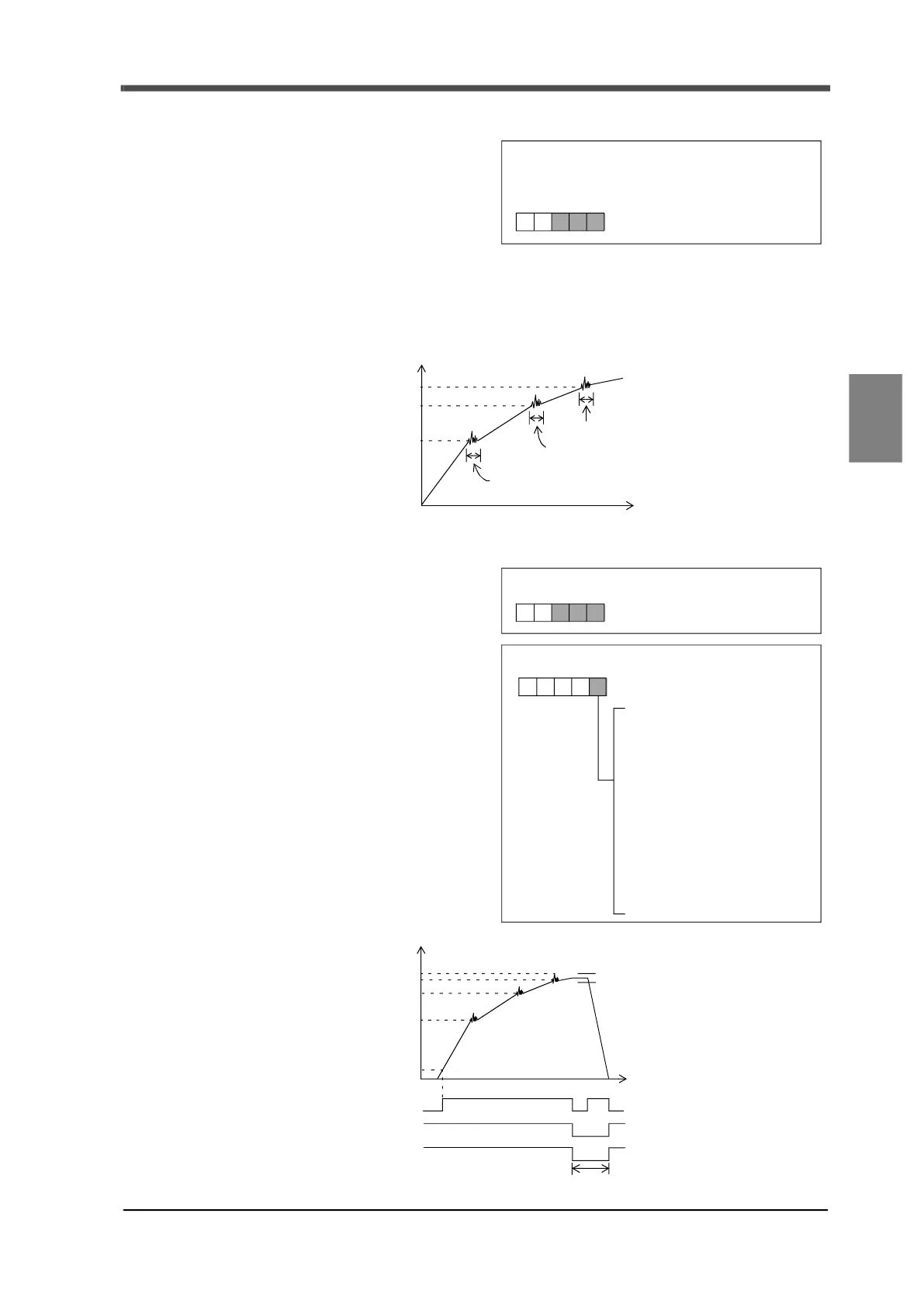

Performing Final Discharge
Chapter
4
4-7-4.Judging time/Comparison inhibit time
Comparison can be inhibited for a certain period
of time to prevent inappropriate control
operation due to mechanical vibration caused by
valve opening/closing. Comparison inhibit time
operates when the weight value reaches (final -
set point 2), (final - set point 1).
Similar to comparison inhibit time, this function is used to inhibit comparison judgme
nt for a certain
period of time to prevent inappropriate judgment due to mechanical vibration caused by valve opening/
closing. Judging time operates when the weight value reaches (final - compensation).
4-7-5. Complete output time/Complete signal output mode
Set the time to output the complete signal when
weighing is complete.
Determine the timing to output the complete
signal in complete signal output
mode.
[Comparison inhibit time 1/judging time/
(Input range: 0.00 to 9.99)
(Setting mode 1-1/1-2/1-8)
comparison inhibit time 2]
0
Final - set point 1
Final - set point 2
Final - compensation
Comparison inhibit time 1
Judging time
Comparison inhibit time 2
[Complete output time] (Setting mode 1-3)
(Input range: 0.00 to 9.99)
[Weighing function 2] (Setting mode 2-2)
2: Turns ON only for the com-
plete output time either after
the SP3 signal has turned
ON and the judging timer has
elapsed or from when the
weight value has become
stable.
1: Only complete signal is OK
from when the weight value
has become stable after the
judging timer has elapsed
0: Complete signal after judging
timer has elapsed.
Complete signal output mode
0
Near zero
Final - set point 1
Final - set point 2
Final - compensation
Under
Time
Stable output
Complete output
Complete time
ON
ON
Final
Over
NET
Complete output time
