Unipulse F701+ User Manual

65
6 Useful Functions
65
Useful Functions
Chapter
6
6-10-2.Settings related to SRS-232C
■ Settings for RS-232C I/F
The setting values for the PC or PLC to be connected to and the RS-232C of the main unit must be the
same.
6-10-3.Communication mode
- Communication mode 0
Communicates by command from the host computer.
(Weight values are not transmitted automatically.)
In-transmission delimiter is selectable from CR and CR+LF.
- Communication mode 1
Transmits gross weight continuously.
Ignores all R, W, and C commands.
- Communication mode 2
Transmits net weight continuously.
Ignores all R, W, and C commands.
- Communication mode 3
Transmits gross weight and net weight continuously.
Ignores all R, W, and C commands.

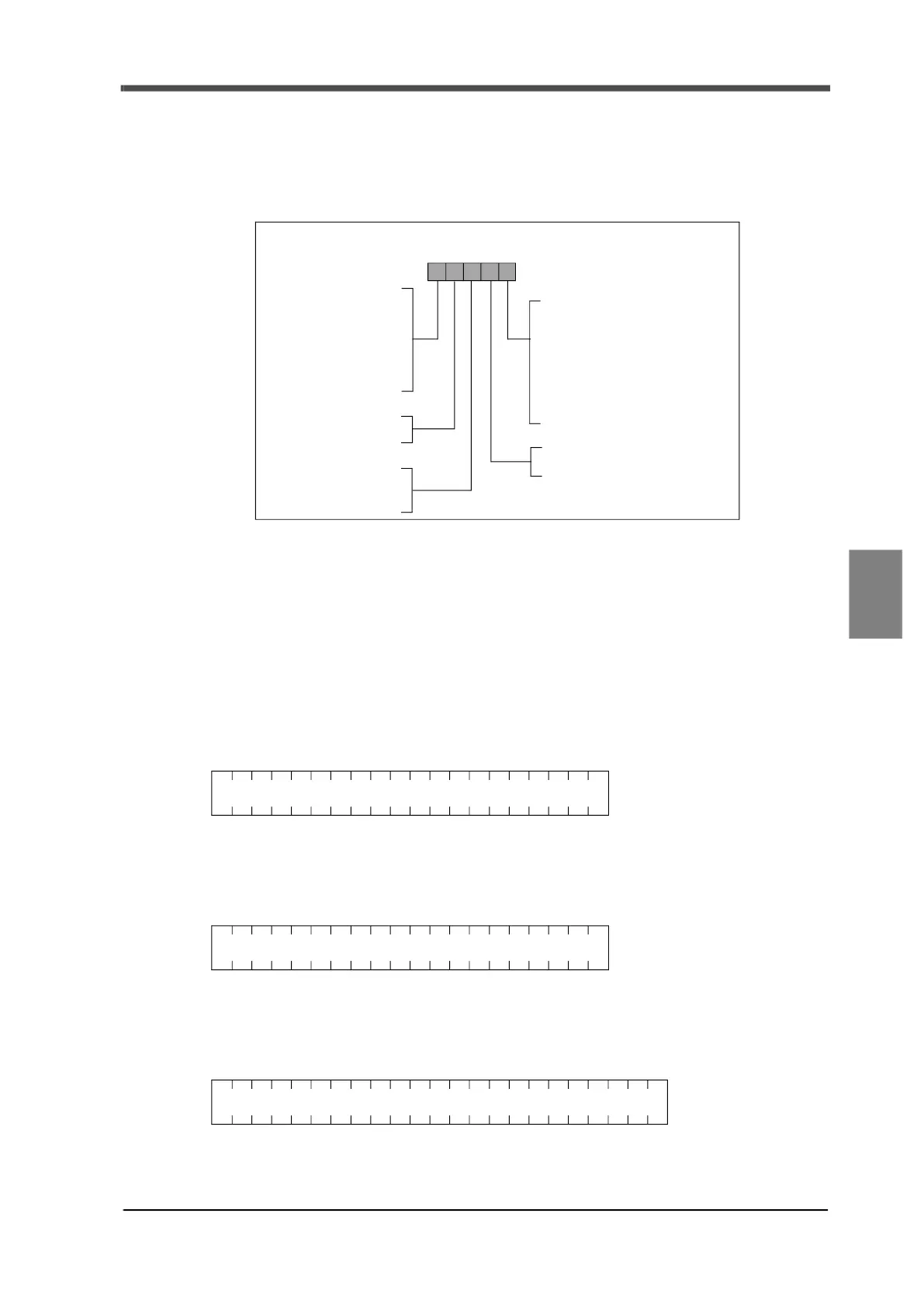

[Settings for RS-232C I/F] (setting mode 4-4)
Terminator
Stop bit
6: Printer mode
5: 115.2kbps
4: 57600 bps
3: 38400 bps
2: 19200 bps
1: 9600 bps
0: 4800 bps
Baud rate selection
7: Communication mode 6
6: Communication mode 5
5: Communication mode 4
4: Communication mode 3
3: Communication mode 2
2: Communication mode 1
1: Communication mode 0/CR+LF
0: Communication mode 0/CR
1: 2 bits
0: 1 bit
1: 8 bits
0: 7 bits
Character length
Parity bit
2: Even
1: Odd
0: None
Transmission format 1 (20 bytes)
Transmission format 2 (20 bytes)
Transmission format 3 (23 bytes)
