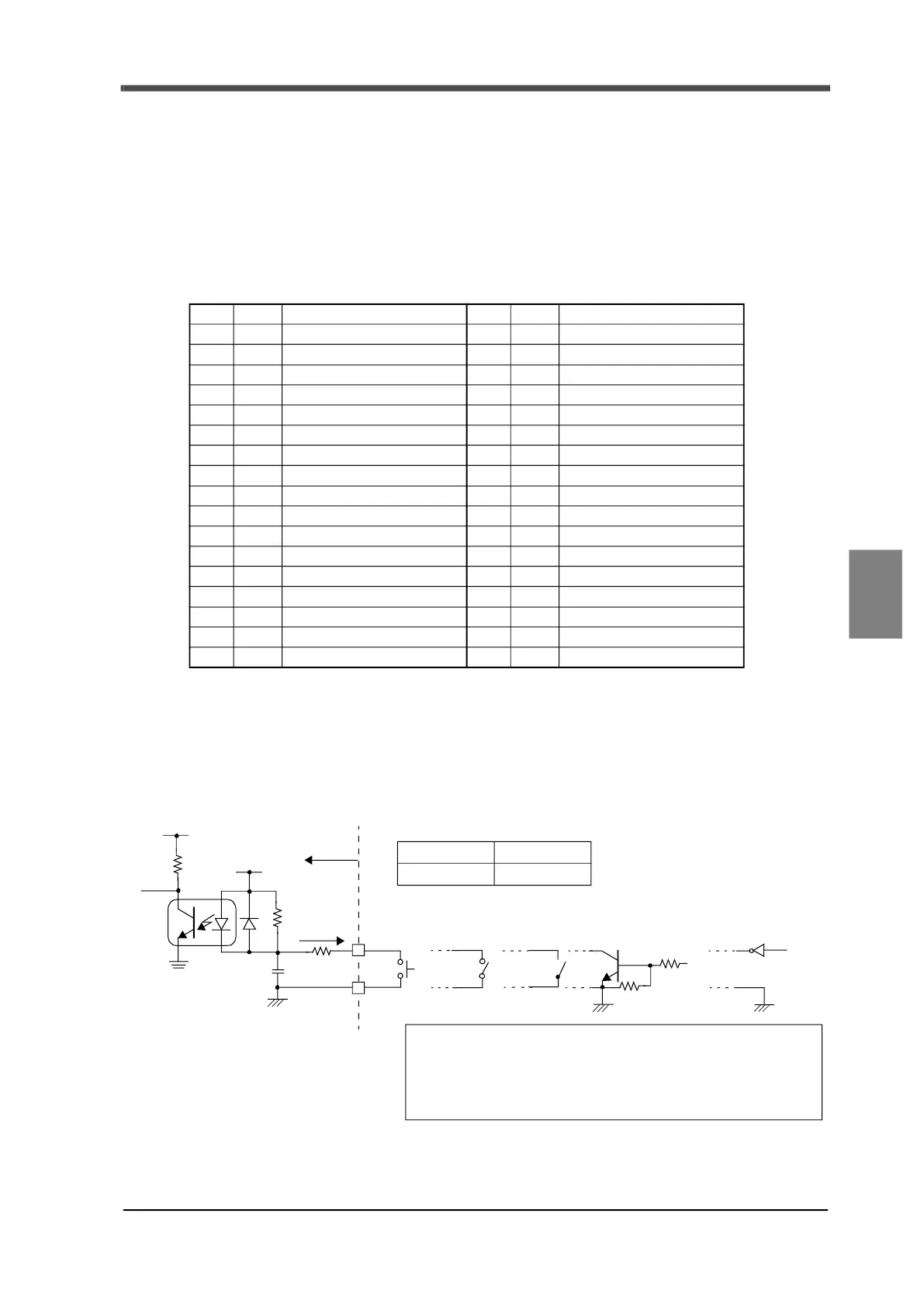

6-12. Using the BCD parallel data output interface (option)
BCD data output is an interface to retrieve a weight value as a BCD code data. This interface is
convenient for processing such as controls, totals, and records by connecting to a computer, process
controller, sequencer, etc. The I/O circuit and internal circuits are electrically insulated with a photo-
coupler.
6-12-1.Connector pin assignments
*: The common (COM: 1, 19pin) is internally connected.
6-12-2.Equivalent circuit (input)
The signal input circuit inputs signals by making a short-circuit or open-circuit between the input
terminal and COM terminal. Short-circuit is achieved with contacts (relays, switches andso on) and
non-contacts (transistors, TTL open collector output and so on).
Compatible connector: 57-30360 manufactured b
y DDK (accessory) or equivalent
1 * COM 19 * COM
2 OUT 1 20 OUT 20000
3 OUT 2 21 OUT 40000
4 OUT 4 22 OUT 80000
5 OUT 8 23 OUT MINUS
6 OUT 10 24 OUT OVER
7 OUT 20 25 OUT P.C
8 OUT 40 26 OUT STROBE
9 OUT 80 27 IN Data hold
10 OUT 100 28 IN Logic switch
11 OUT 200 29 IN Output selection 1
12 OUT 400 30 IN Output selection 2
13 OUT 800 31 IN
14 OUT 1000 32 IN
15 OUT 2000 33 IN
16 OUT 4000 34 IN
17 OUT 8000 35
18 OUT 10000 36
Vcc
F701+
Inside
IC=
COM
Transistor
+12V
Push
IN
IN
Open-circuit OFF
Short-circuit ON
- Do not apply voltage to the signal input circuit from outside.
- An external element must be an element in which Ic=10mA
or more can be applied.
- External element leak must be 100μA or below.
switch
TTL open collector output
(ON when IN is "H")
approx. 6mA
Toggle
switch
Relay
contact
