4
1 Before Getting Started
4
Before Getting Started
Chapter
1

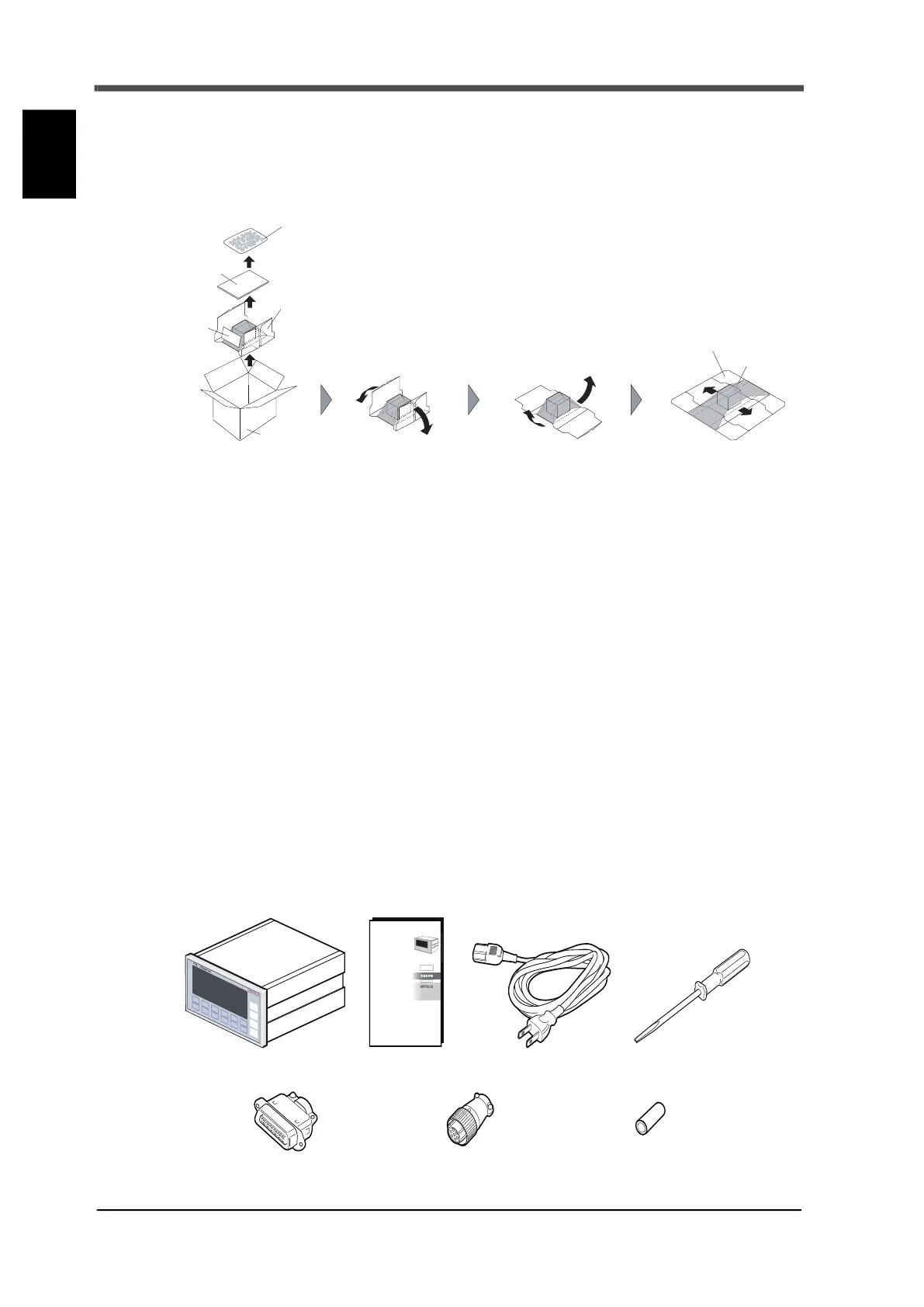

1-3. Unpacking precautions
The attachments are packed in the carton box with the product. Take out the attachments and the
product holder from the individual box. Then take out the product from the product holder as shown in
the figures below.
1-4. Product compliant to RoHS2 Directive
The parts and attachments (including the instruction manual, packaging box, etc.) used for this unit are
compliant with the RoHS2 Directive, restricting the use of hazardous substances with regard to adverse
effects on the environment and human body.
■RoHS2 Directive
It is based on the restriction of the use of certain hazardous substances in electrical and electronic
equipment (EEE). The Directive restricts the use of specific substances in electrical and electronic
equipments that could harm environment and huma
n body. The substances are lead, mercury, cadium,
hexavalent chromium, PBB (polybrominated biphenyls), PBDE (polybrominated diphenyl ethers),
DEHP (bis(2-ethylhexyl) phthalate), BBP (benzyl butyl phthalate), DBP (dibutyl phthalate), and DIBP
(diisobutyl phthalate).
1-5. Package contents
The following items are included in the package box. Be sure to check the contents before use.
Foam cushioning material
Product holder
Product holder
Product
Operation manual
Accessories
Individual package box
(1)Take out the operation
manual, attachments
and product holder from
the individual box.
(2)Take out the product from
the product holder. Fold
the bent parts of the
cardboard back down.
(3)Then restore the lower
part of the cardboard in
the 90 degrees of (2)
upward to ease the
tension of the film.
(4)Take out the product from
between the film and
cardboard.
•
)$)$
F701+ main unit F701+ operation manual AC input cord
Load cell connector Connector rubber for load cellExternal I/O connector
--- One set --- One piece --- One piece
--- One unit --- One copy --- One piece
Mini-screwdriver
--- One piece
To Next Page
