1.3. Configuring PANO Sensor Settings
VAKCAP.exe program is required for PANO Sensor Calibration operation.
Path: C:\VCaptureSW\Acquisition\Pano\WidePano folder
Before the PANO Sensor Calibration operation begins, the operator must back up the prior
PANO Sensor Calibration folder.
PANO Sensor Calibration file folder: C:\VCaptureSW\Acquisition\Pano\WidePano\CAL
folder
1) Run VAKCAP.exe.

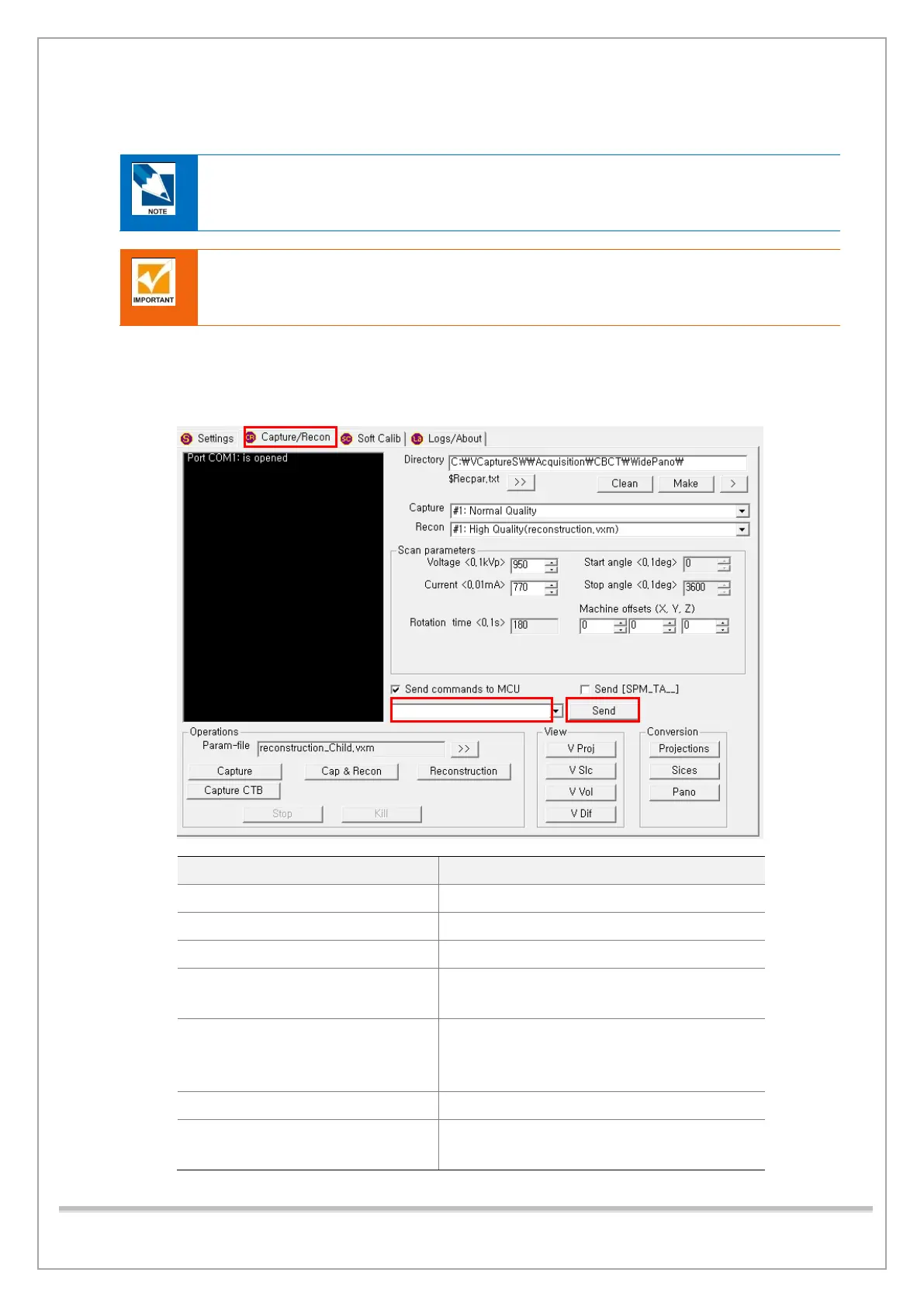

2) Click the Capture/Recon tab and type the following commands in the command field and click
Send.
Commands Description
[SPM_PANO] Panoramic mode Initialization
[SPM_PSON] PANO sensor Power On
[SPM_FISS_0001] Sensor Sensitivity & Binning mode setting
[SPM_FIPM_0004] Sensor Partial mode setting
// Sensor size: 0000~0032
[SPM_FISM_0001] Sensor Internal/External mode setting
//0000: Internal
//0001: External
[SPM_FOVO] Open all 4-axis collimators
[SPM_COLM_0008]
Collimator Position set
//0008: (AL) Open
