6.1. Before CBCT CT Number Calibration

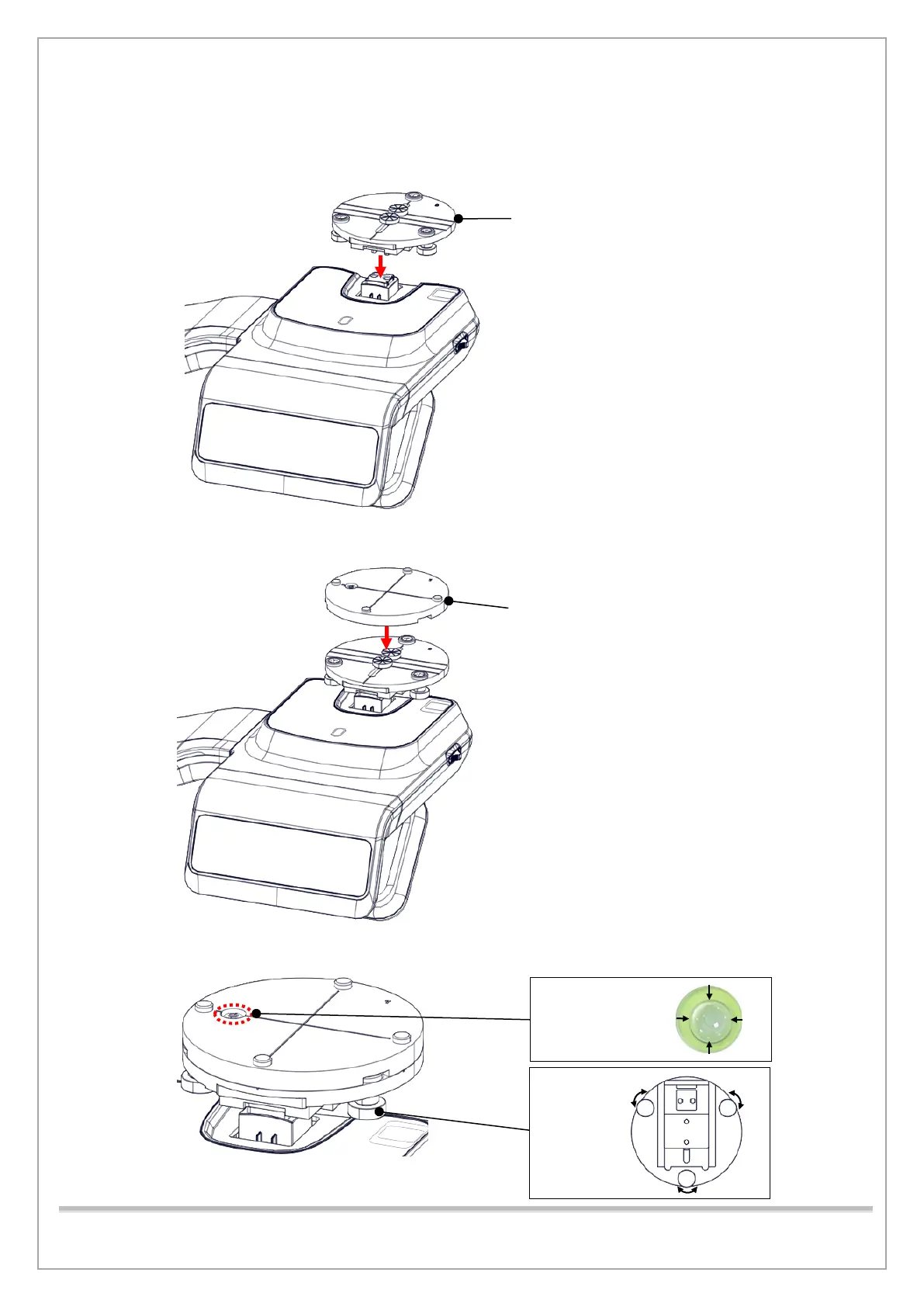

1) Put the PHANTOM JIG ASS’Y BOTTOM on the unit as shown below.
2) Put the PHANTOM JIG ASS’Y TOP on the PHANTOM JIG ASS’Y BOTTOM as shown below.
3) Make the PHANTOM JIG ASS’Y level by using BUBBLE LEVEL and three ALIGN PINs.
PHANTOM JIG ASS’Y BOTTOM
BUBBLE LEVEL
ALIGN PIN
PHANTOM JIG ASS’Y TOP
