Vatech Smart Plus PHT-35LHS - Cephalometric Unit Part

Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
18 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED
2.4. Cephalometric Unit Part

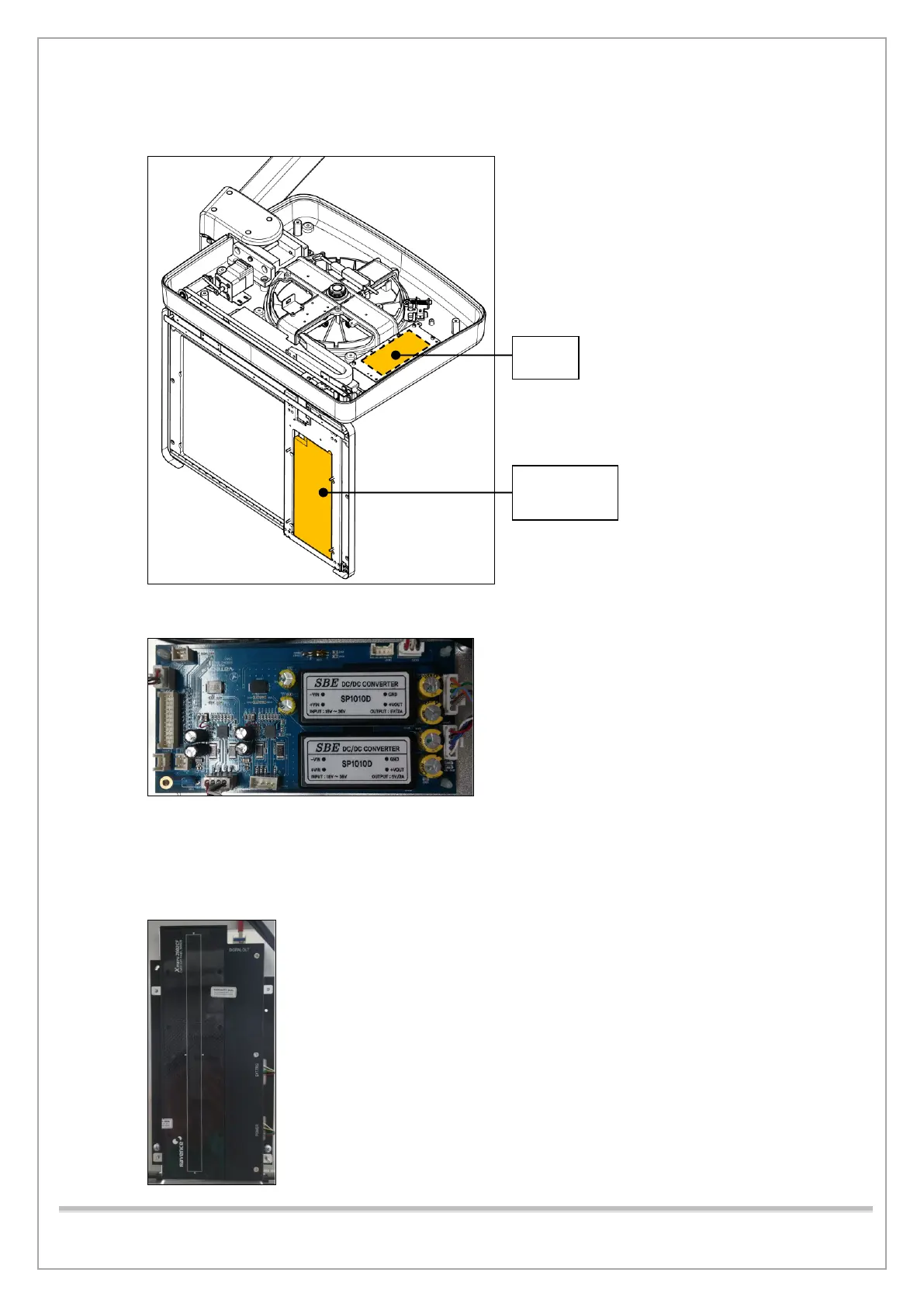

 SUB040 BOARD
- The interface between MCU018 Board and CEPH motors
- Communication with CEPH sensors
- Sensor Power Regulation: 24V -> 7V, 5V, -5V
 CEPH SENSOR
SUB040
BOARD
CEPH
SENSOR
(Xmaru2602CF)
