4.2. Performing PANO Image Inspection
Line Pair and Low Contrast Resolution

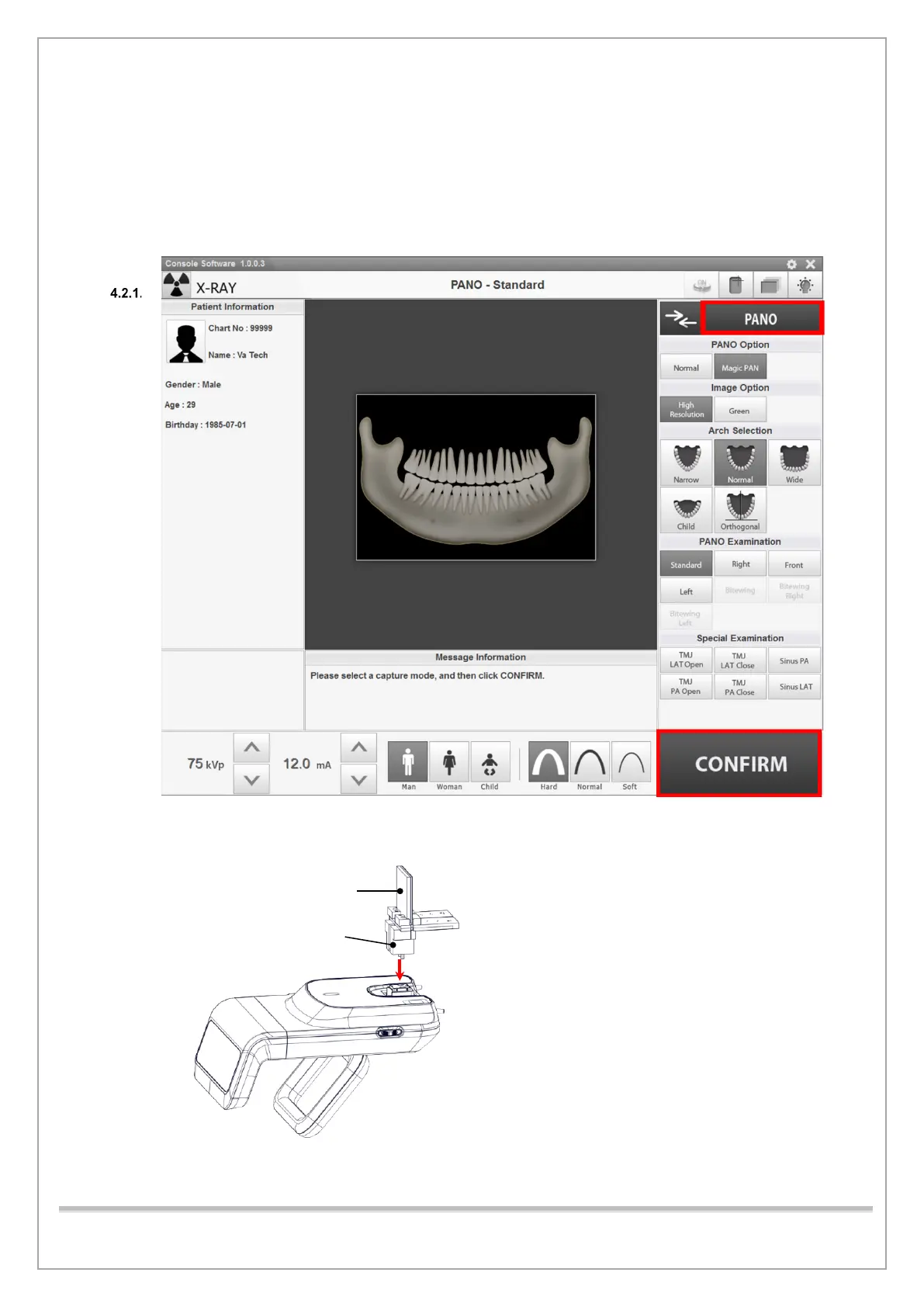

1) Run Console Software and click PANO to go into the Panoramic mode.
2) Click CONFIRM.
3) Attach PANO BALL Phantom + Quart Phantom Essay on Chinrest as shown below.
Quart Phantom
Ball Phantom
