2.4. Bead Phantom Image Acquisition
1) Put the tripod on the floor near the equipment

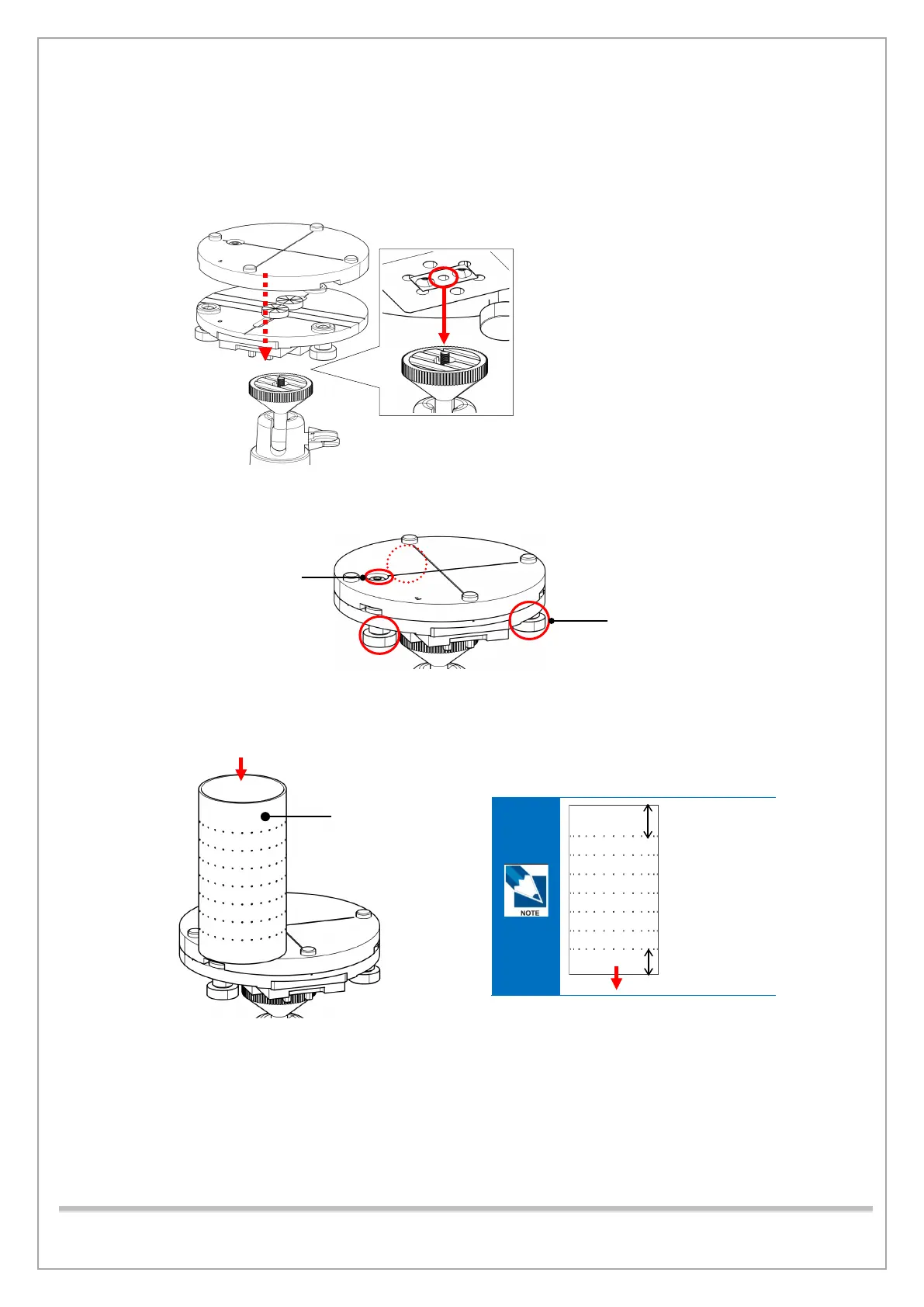

2) Assemble the PHANTOM JIG ASS’Y to the tripod as shown below.
3) Make the PHANTOM JIG ASS’Y level by using BUBBLE LEVEL and three ALIGN PINs.
4) Put the BEAD PHANTOM for Smart Plus on the PHANTOM JIG ASS’Y.
BEAD PHANTOM
for Smart Plus
BUBBLE LEVEL
ALIGN PIN
Long
Short
