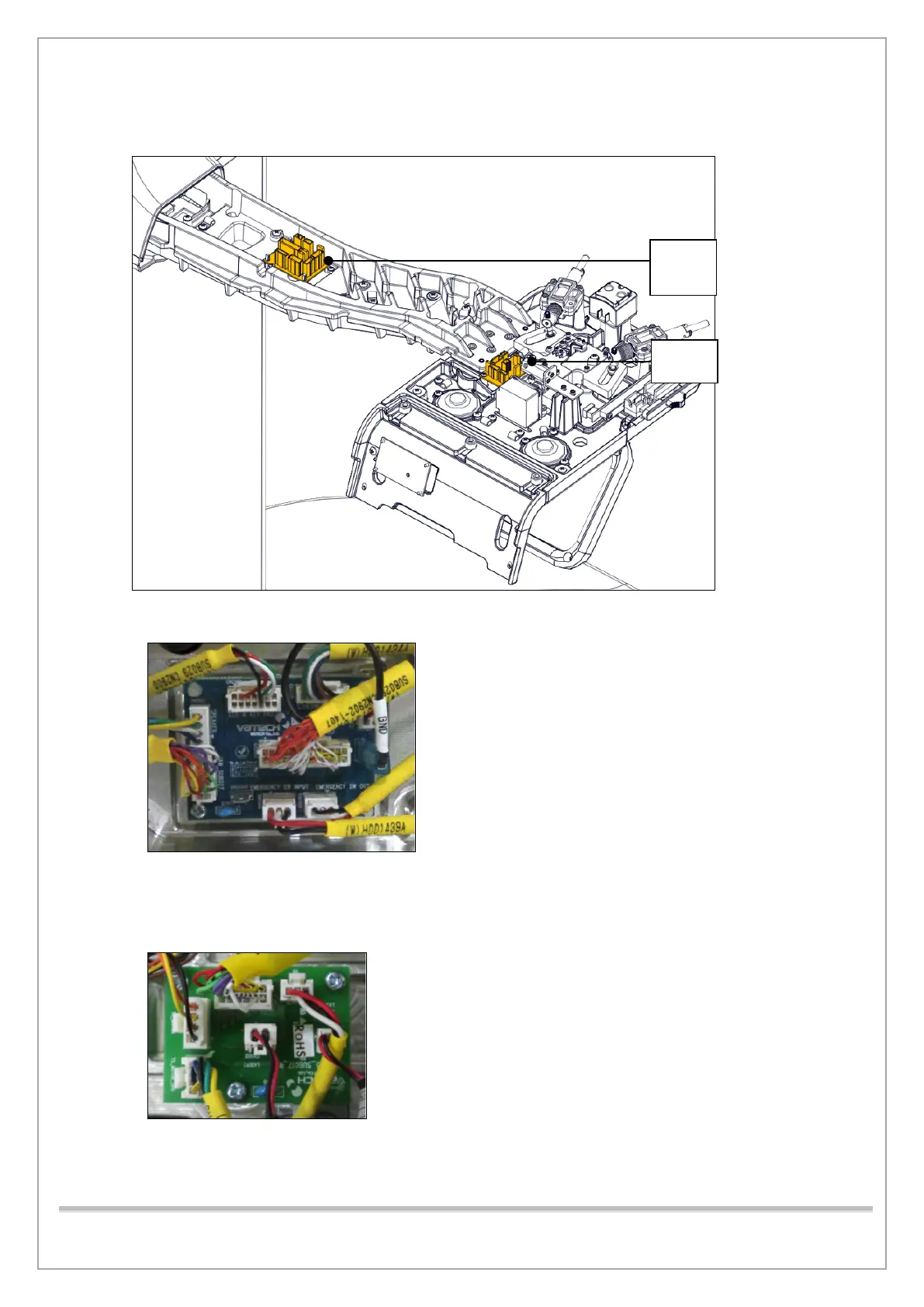

2.3. Handle Frame Part
 SUB029 BOARD
- Control signal interfacing of LCD Module, Keypad, Laser, Column Up/Down, Temple support
- Signal interfacing of Sound source, Emergency switch input, Canine VR
 SUB017 BOARD
- Control signal interfacing of Temple support, Laser, Canine VR
SUB029
BOARD
(JAW)
SUB017
BOARD
