Vatech Smart Plus PHT-35LHS - Performing CEPH Geometry Calibration

Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
141 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED
2. Performing CEPH Geometry Calibration
1) Follow the procedure below to perform the CEPH geometry calibration.
2) Run Console Software.

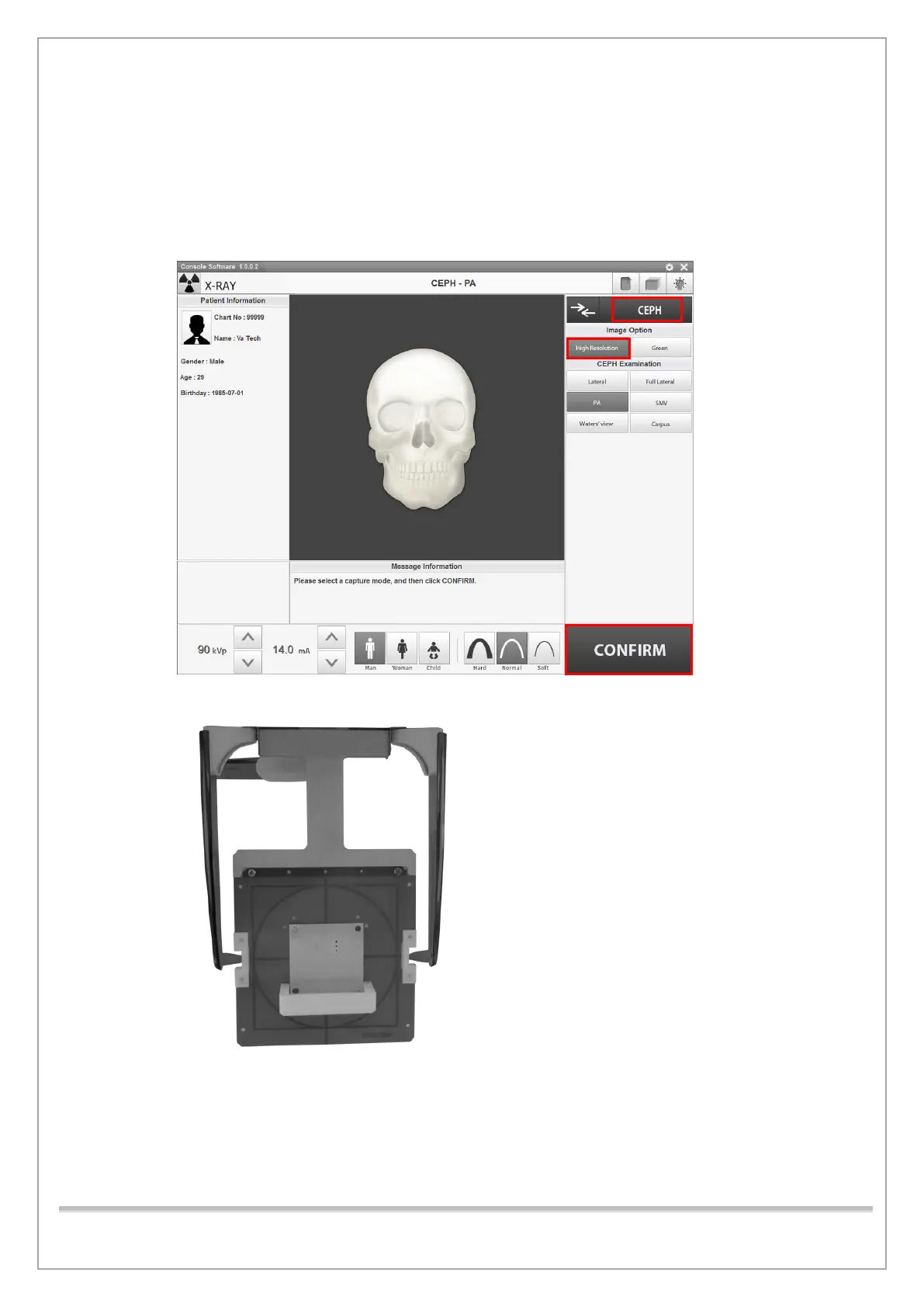

3) Click CEPH > High Resolution > PA > CONFIRM and wait until READY button is enabled.
4) Attach CEPH PHANTOM A’ssy and Quart Phantom as shown in the figure.
5) Click READY.
