4.1. Before CBCT Rotator Position Alignment

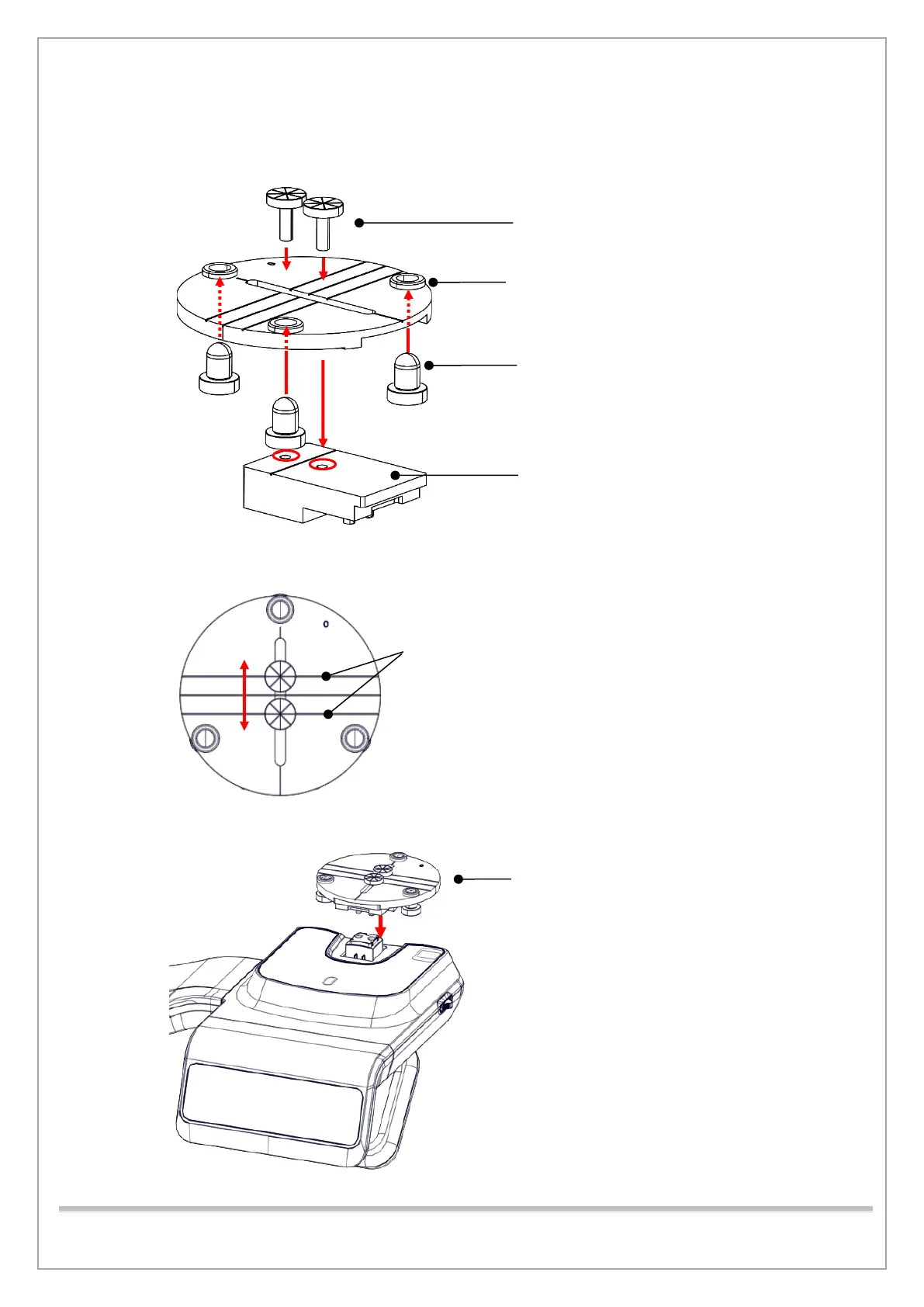

1) Assemble the PHANTOM JIG ASS’Y as shown in the figure.
2) Align the PHANTOM FIXING BOLTs to the PHANTOM JIG BOTTOM baseline as shown below
and turn the bolts clockwise to tighten them.
3) Put the PHANTOM JIG ASS’Y BOTTOM on the unit as shown below.
PHANTOM FIXING BOLT x 2
PHANTOM JIG BOTTOM
PHANTOM JIG BLOCK
PHANTOM ALIGN PIN x 3
PHANTOM JIG BOTTOM base lines
PHANTOM JIG ASS’Y BOTTOM
