Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
67 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED

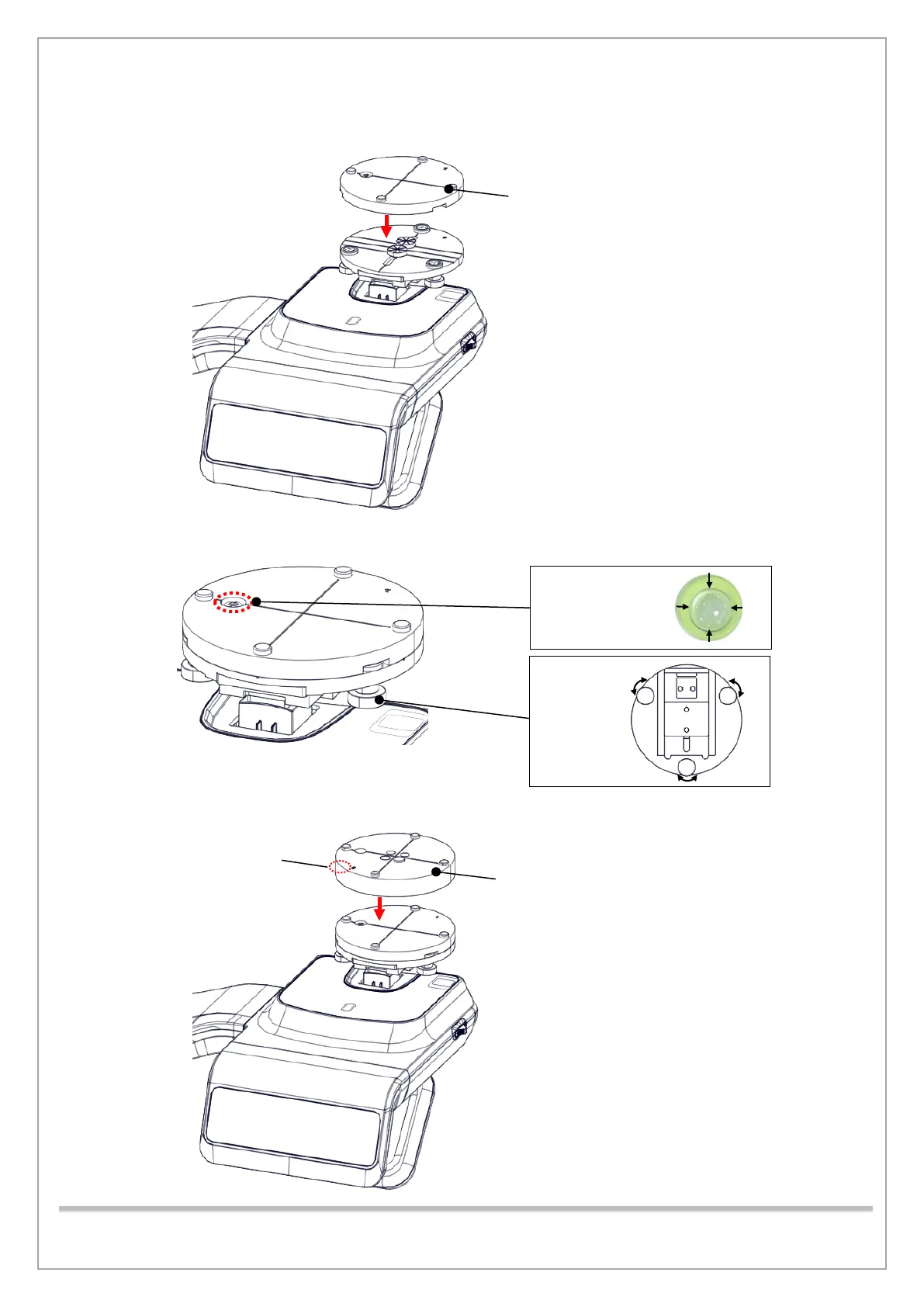

4) Put the PHANTOM JIG ASS’Y TOP on the PHANTOM JIG ASS’Y BOTTOM as shown below.
5) Make the PHANTOM JIG ASS’Y level by using BUBBLE LEVEL and three ALIGN PINs.
6) Put CT NUMBER CHECK PHANTOM on the PHANTOM JIG ASS’Y.
BUBBLE LEVEL
ALIGN PIN
ID Number
PHANTOM JIG ASS’Y TOP
CT NUMBER CHECK PHANTOM
