Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
COPYRIGHT© 2018 VATECH.
4. How to Disassemble Smart Plus (PHT-35LHS) Covers
Read all notes thoroughly before you stable disassembling covers of Smart Plus (PHT-35LHS)
The following illustrations may look different from actual products depending on the options.
Truss head screws on each cover are covered with rubber caps. Remove rubber caps first
to unscrew the truss head screws and open the covers.
In this manual, the procedures for removing the rubber caps are omitted for convenience.
4.1. Vertical Frame Part

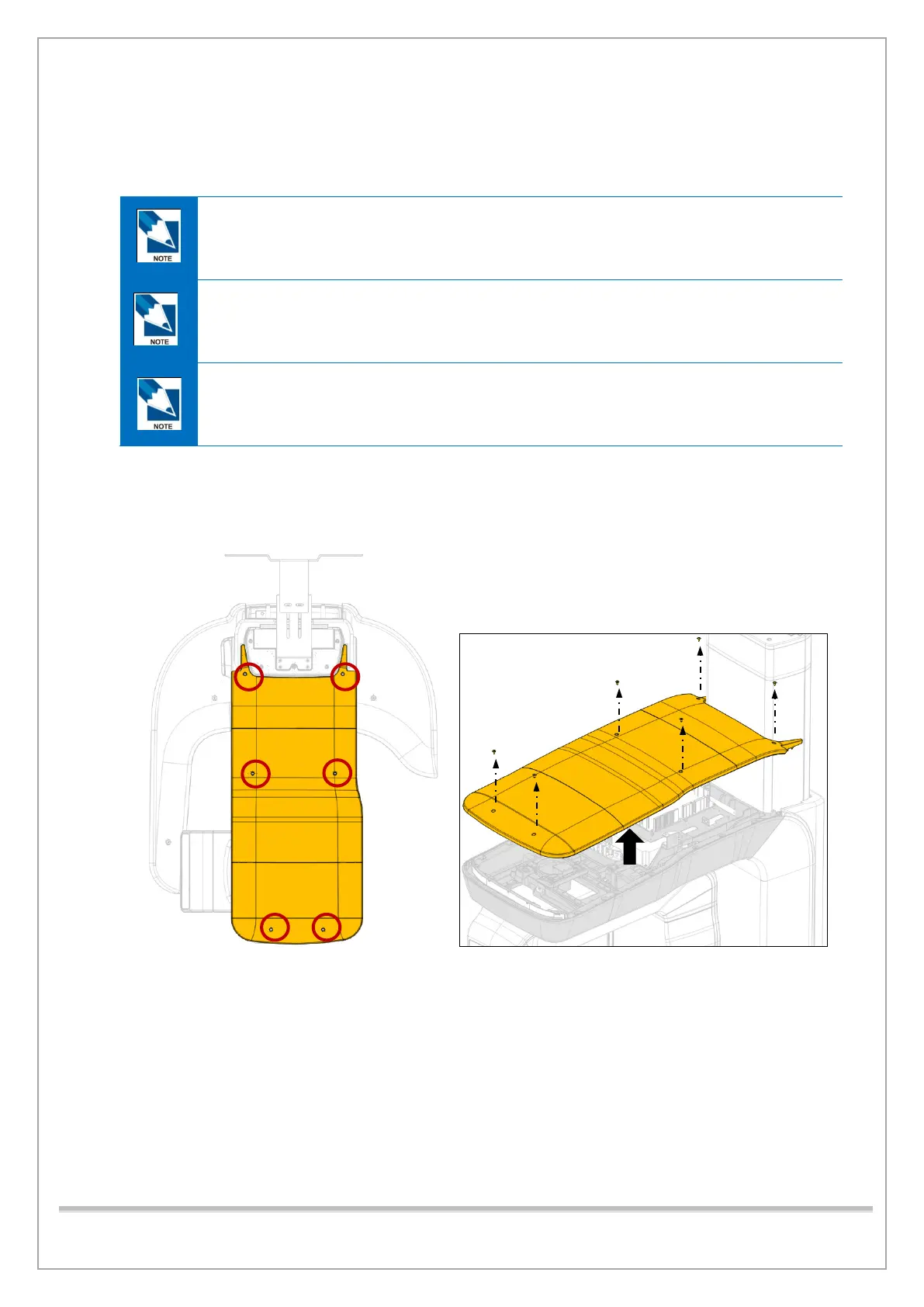

DISASSEMBLY OF THE VERTICAL UPPER COVER
By doing this, you can access:
- MAIN MCU BOARD (MCU018)
- POWER BOARD (VT-PWR-010)
- NOISE FILTER
To Next Page
