Vatech Smart Plus PHT-35LHS - Performing PANO Sensor Dark Calibration

Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
113 / 188
COPYRIGHT© 2018 VATECH.
ALL RIGHTS RESERVED
1.4. Performing PANO Sensor Dark Calibration

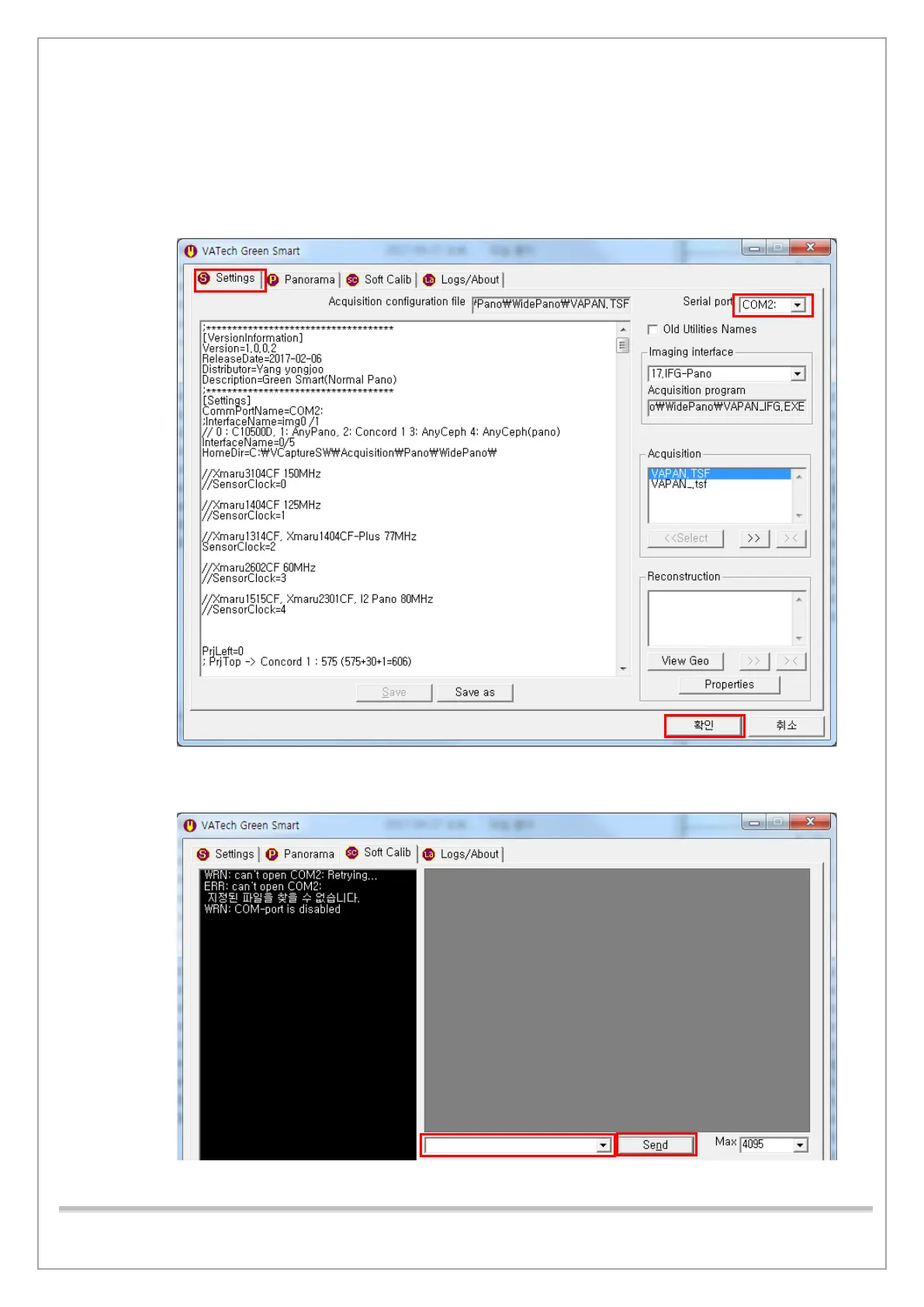

1) Run VAKCAP.exe.
2) Click Settings. In the Serial port box, select a COM Port Number in use. Then click OK and
restart the program.
3) Click the Soft Calib tab and type [SPM_PANO], and then click Send to initiate the system into
PANO mode.
