5.2. Performing CBCT Background Calibration
In Green Mode

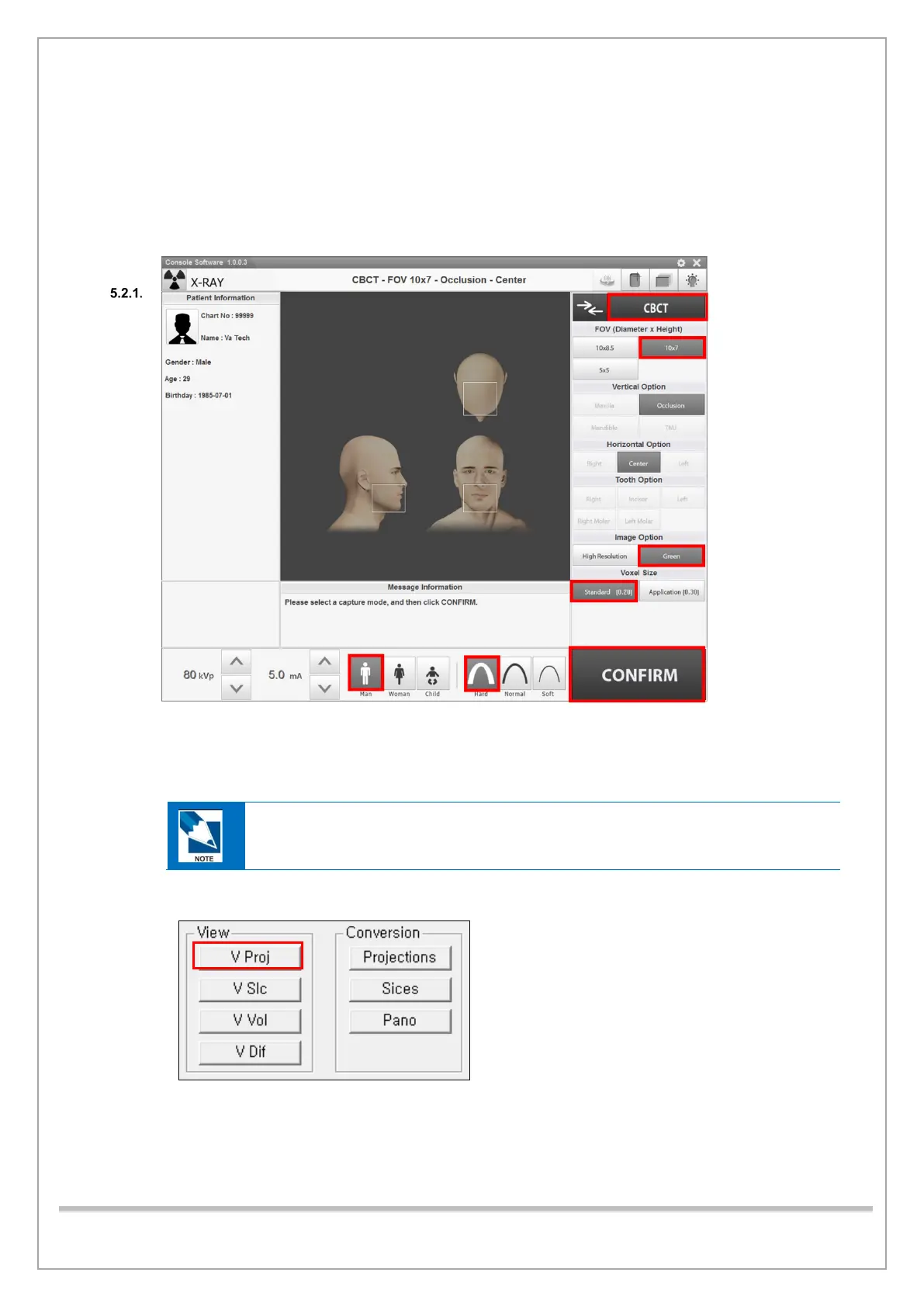

1) Run Console Software and click CBCT to go into CBCT mode.
2) Set the parameters as shown below and click CONFIRM.
3) Click READY when enabled and acquire the image according to the Console Software
guidance.
4) After the image acquisition is complete, exit the capture software and run VAKCAP.exe.
VAKCAP.exe path: C:\VCaptureSW\Acquisition\CBCT\WidePano
5) Click the Capture/Recon tab and click V Proj to open View 16.
