Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
COPYRIGHT© 2018 VATECH.

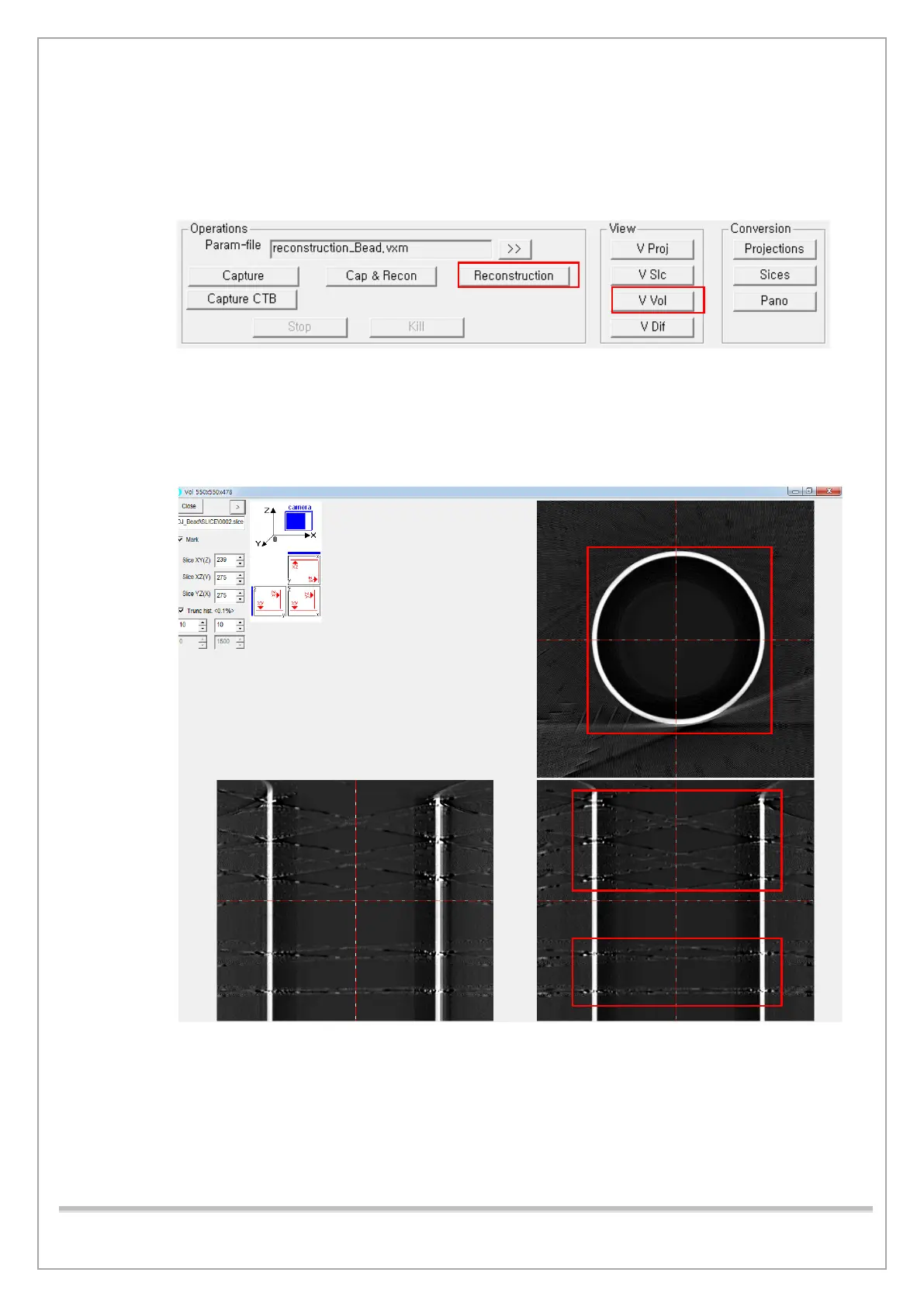

2.5. Bead Phantom Image Reconstruction
1) When the exposure is completed, click Reconstruction to reconstruct the Bead Phantom image.
2) When the reconstruction is completed, click V Vol to open the reconstructed image.
3) Make sure that the following criteria are met while examining the image:
• The phantom bead image is aligned with the center of the screen.
• Three bead lines appear in the upper part.
• Two bead lines appear in the lower part.
4) If the bead phantom image is not aligned with the screen’s center, change the bead phantom
position, and do the exposure again.
