3.2. CEPH Ear-Rod Alignment

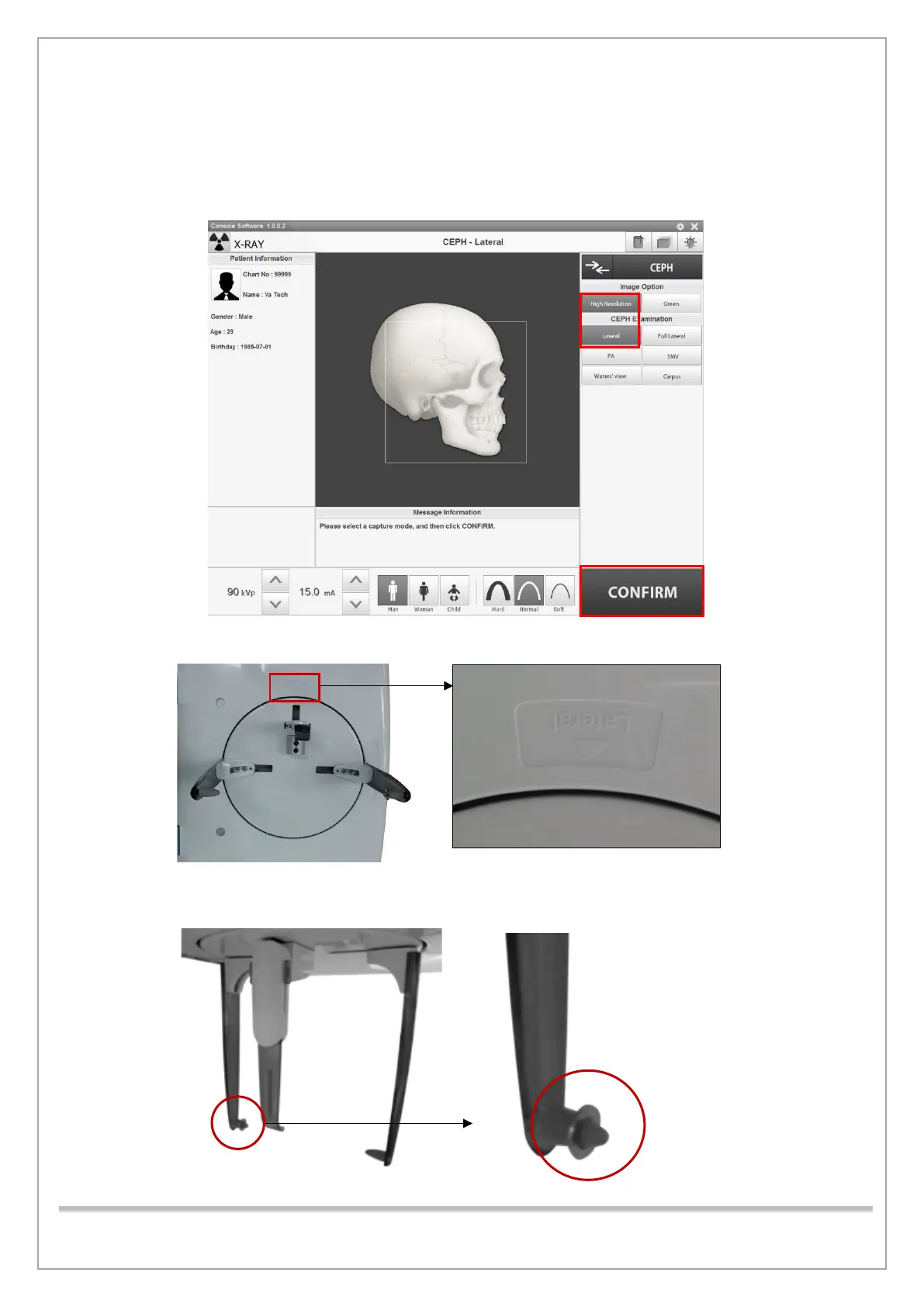

1) Run Console Software.
2) Click CEPH > High Resolution > Lateral > CONFIRM and wait until READY button is enabled.
3) Turn CEPH Ear-Rod to the Lateral Mode position as shown in the figure.
4) Put a flat washer into the right Ear-Rod as shown below.
