Smart Plus (PHT-35LHS)
Technical Manual
VT-TECH-Smart Plus-001
COPYRIGHT© 2018 VATECH.

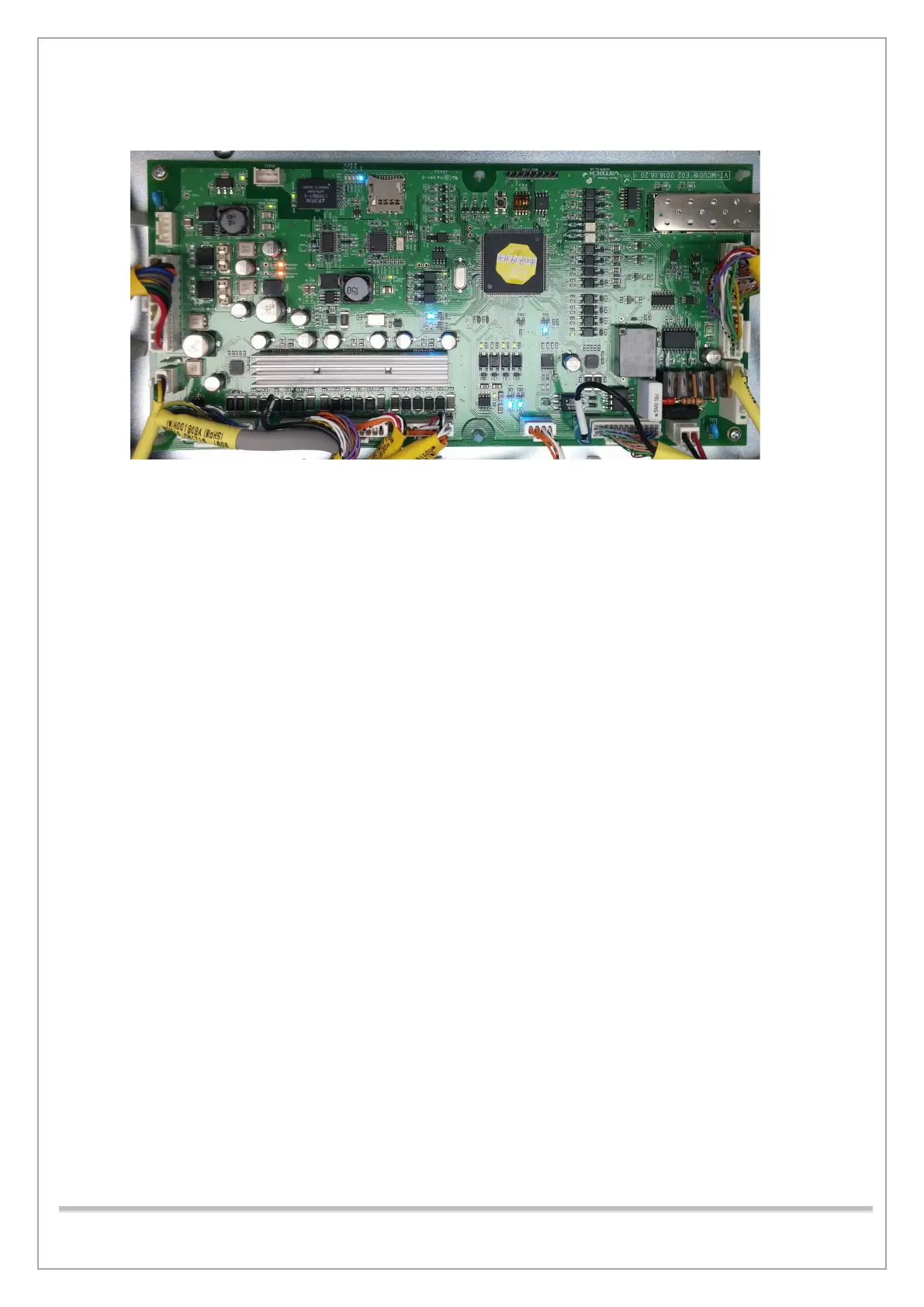

MAIN MCU BOARD (MCU018)
- Stepper motor control
- : X & Y-AXIS, Rotator, Sensor, Collimator, and Temple support motor
- DC motor control signal output
- : Generator tilting motor, Column Up/Down motor
- Generator Inverter Board control and CAN communication (Sensor, Inverter B/D, Keypad,
Collimator)
- X-Ray Detector (CT/PANO, CEPH-Scan) control
- : Output Sensor pulse, Control Power ON/OFF
- Membrane S/W Control
- MP3 Voice output
- External switch and indicator exposure lamp input
- Fan control and X-ray exposure warning
- Whole system control through Digital Input & Output
