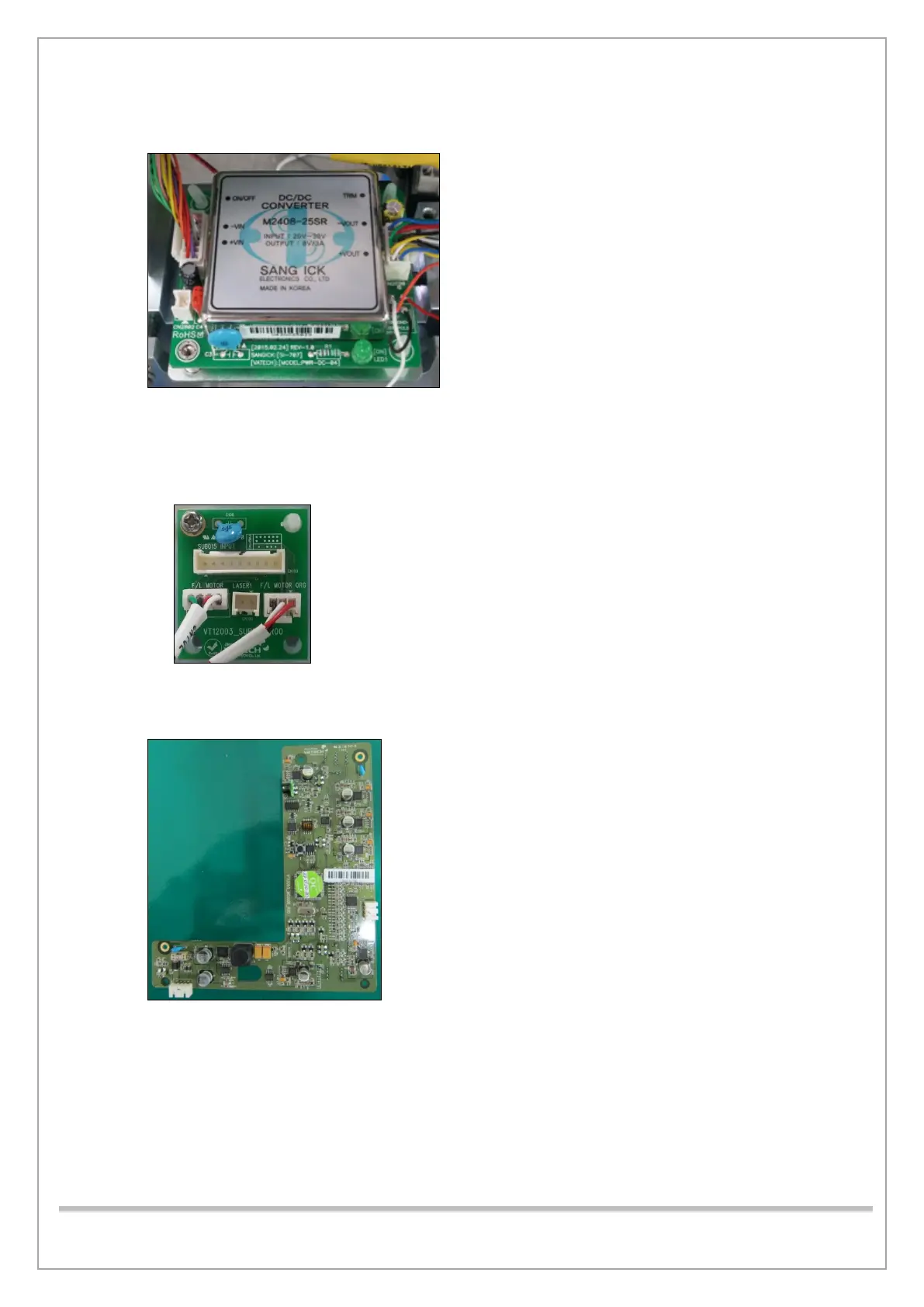

 DC POWER BOARD (DC-04)
- Control signal interfacing of Sensor moving the motor, Rotator motor, Sensor
- Power interfacing of Sensor
 SUB015 BOARD (Laser)
- Laser and Laser motor control signal interfacing
 COLLIMATOR MCU BOARD (MCU006)
- Collimator control
- Collimator align laser control
