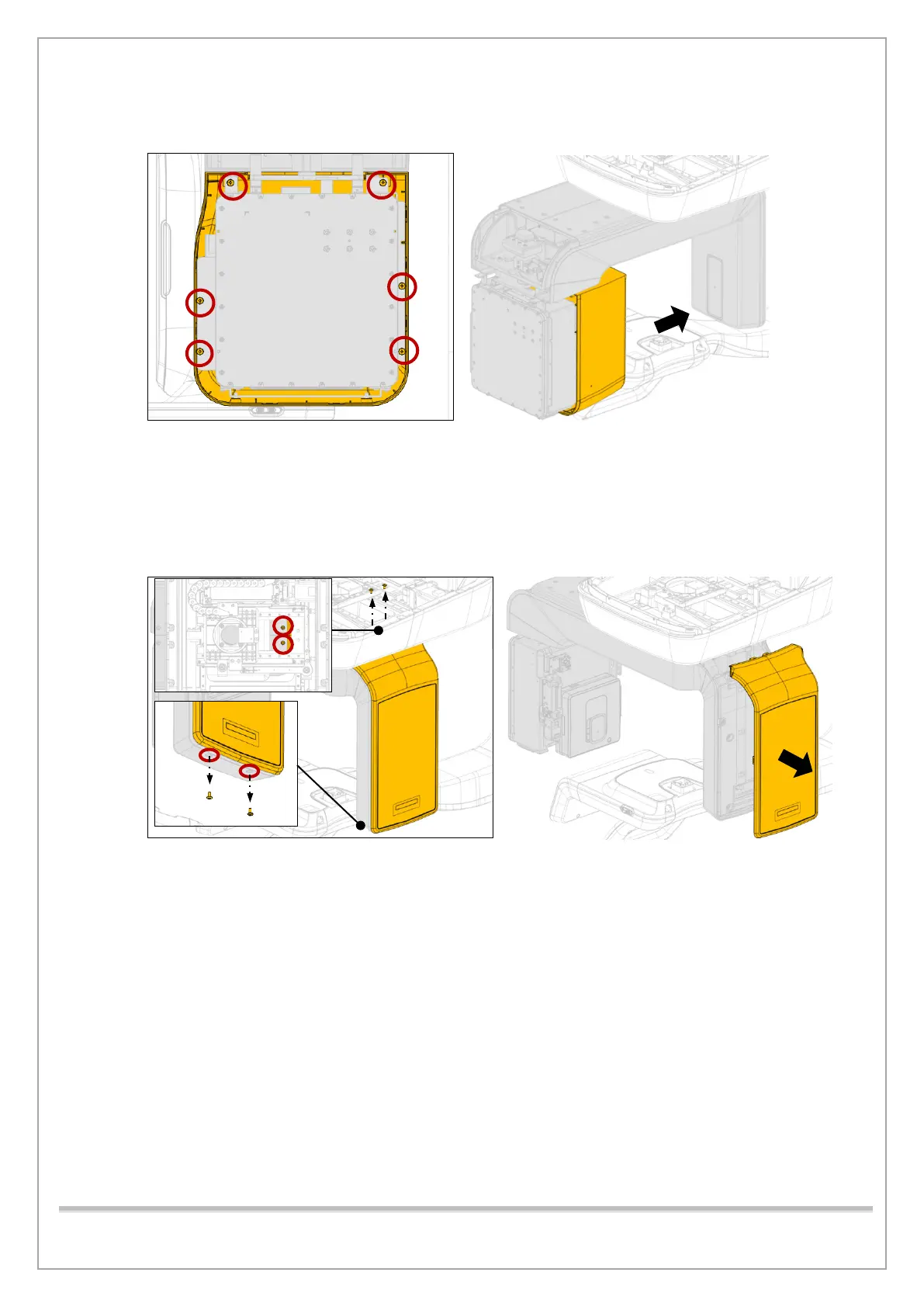

 DISASSEMBLY OF THE ROTATOR TUBE FRONT COVER
By doing this, you can access:
- TUBE, COLLIMATOR ASS’Y, COLLIMATOR MCU BOARD (MCU006), SUB015 BOAR
 DISASSEMBLY OF THE ROTATOR SENSOR REAR COVER
By doing this, you can access:
- DC POWER BOARD(DC-04)
