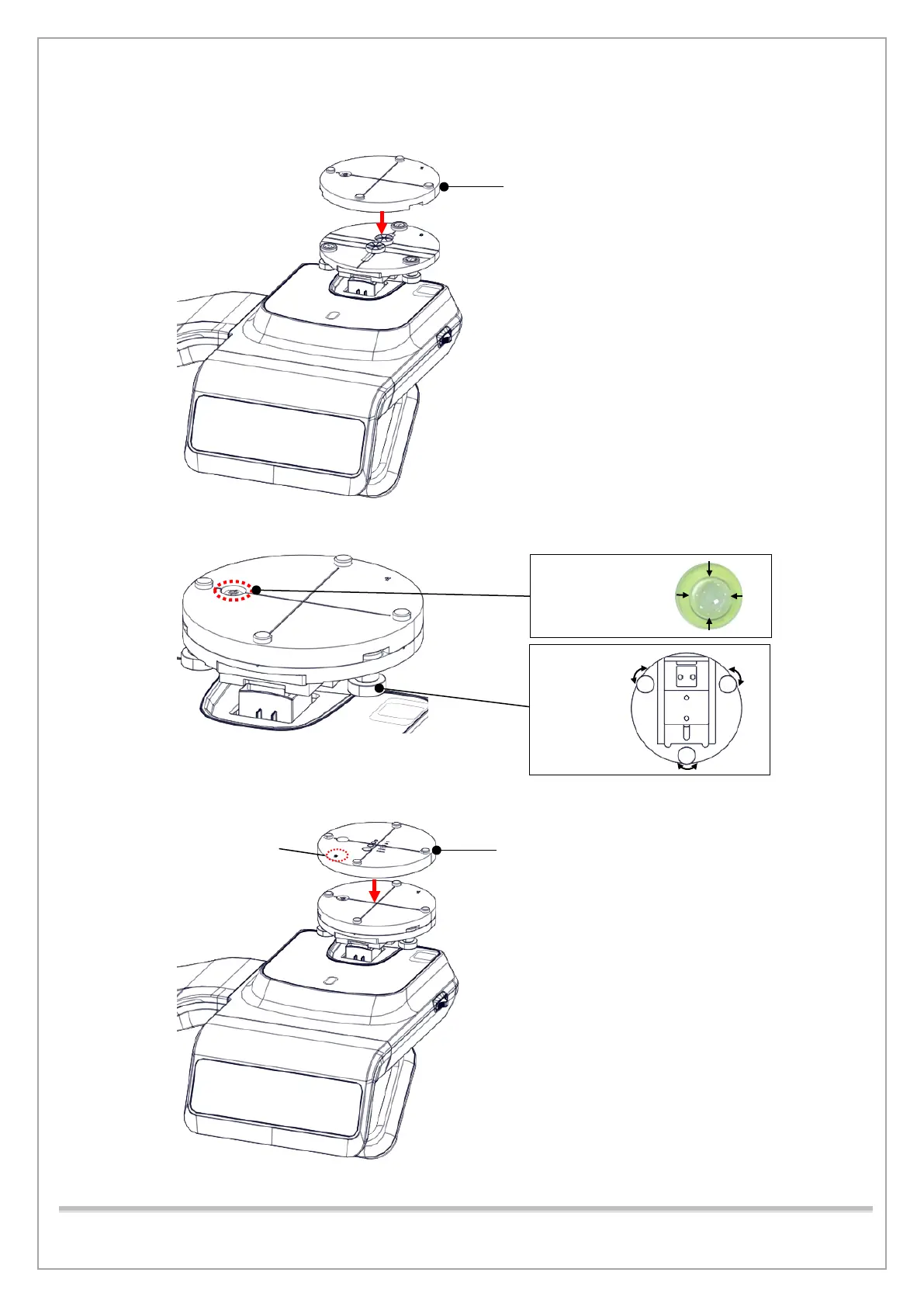

4) Put the PHANTOM JIG ASS’Y TOP on the PHANTOM JIG ASS’Y BOTTOM as shown below.
5) Make the PHANTOM JIG ASS’Y level by using BUBBLE LEVEL and three ALIGN PINs.
6) Put the S&C CHECK PHANTOM on the PHANTOM JIG ASS’Y
BUBBLE LEVEL
ALIGN PIN
PHANTOM JIG ASS’Y TOP
ID Number
S&C CHECK PHANTOM
