8.2.2.5 Comparison of the signals DosOK and SingleDosOK for Scenario ON and Scenario OFF

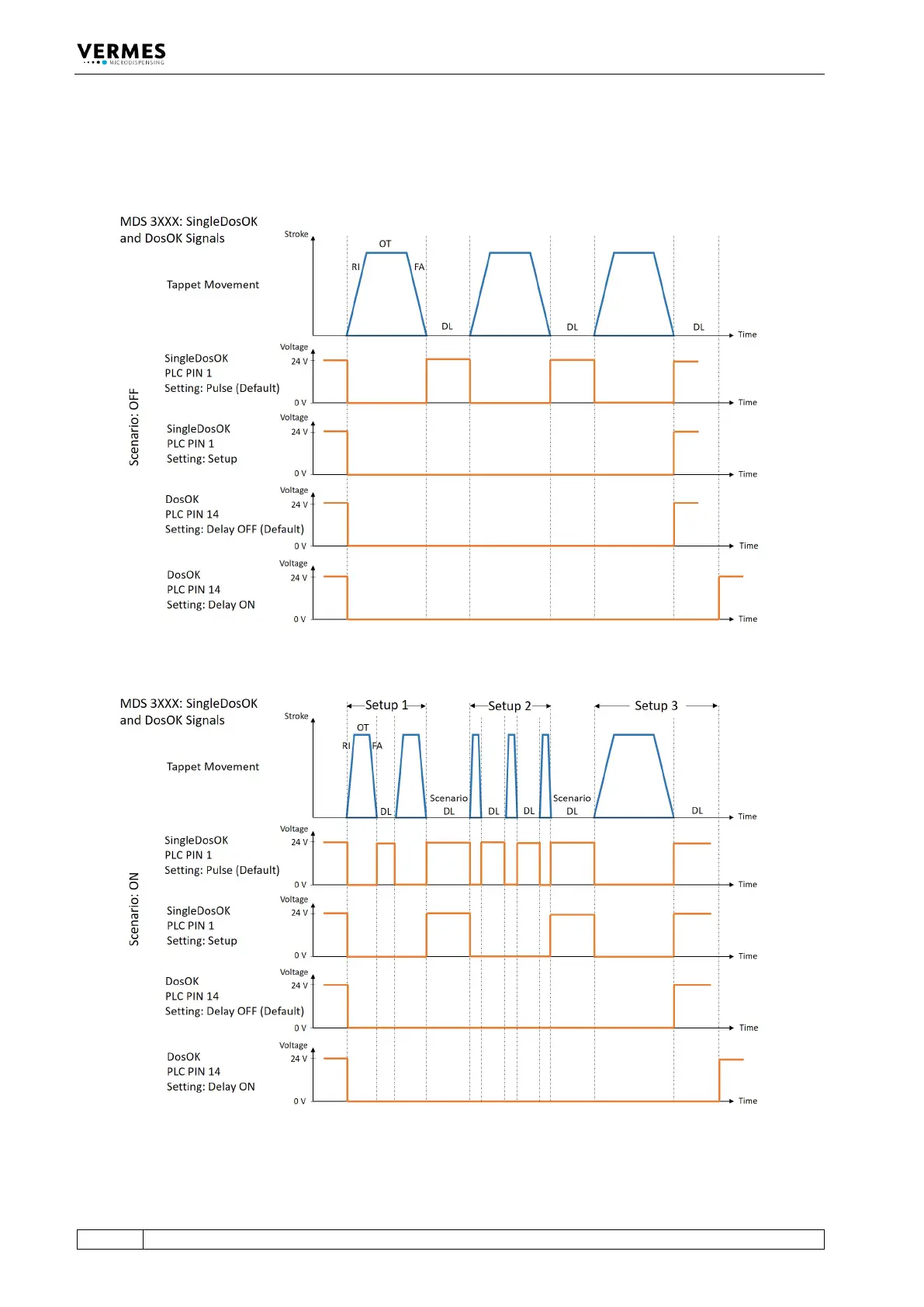

The following two figures show the signals DosOK and SingleDosOK in relation to the tappet
movement. In the first figure, scenarios are off, in the second figure, scenarios are ON.
Fig. 67: PLC signals with Scenario OFF
Fig. 68: PLC signals with Scenario ON
