Vermes MDS 358X - Connecting a Cooler; Fig. 29: Heater MDH-48-BY; Fig. 30: Heater Cable 48 V; Fig. 31: Flow Control Valve FCV-AC 6.0 M12

Initial Operation
54
VTK-TR-BA-072e-1 - User Manual MDS 358X Series

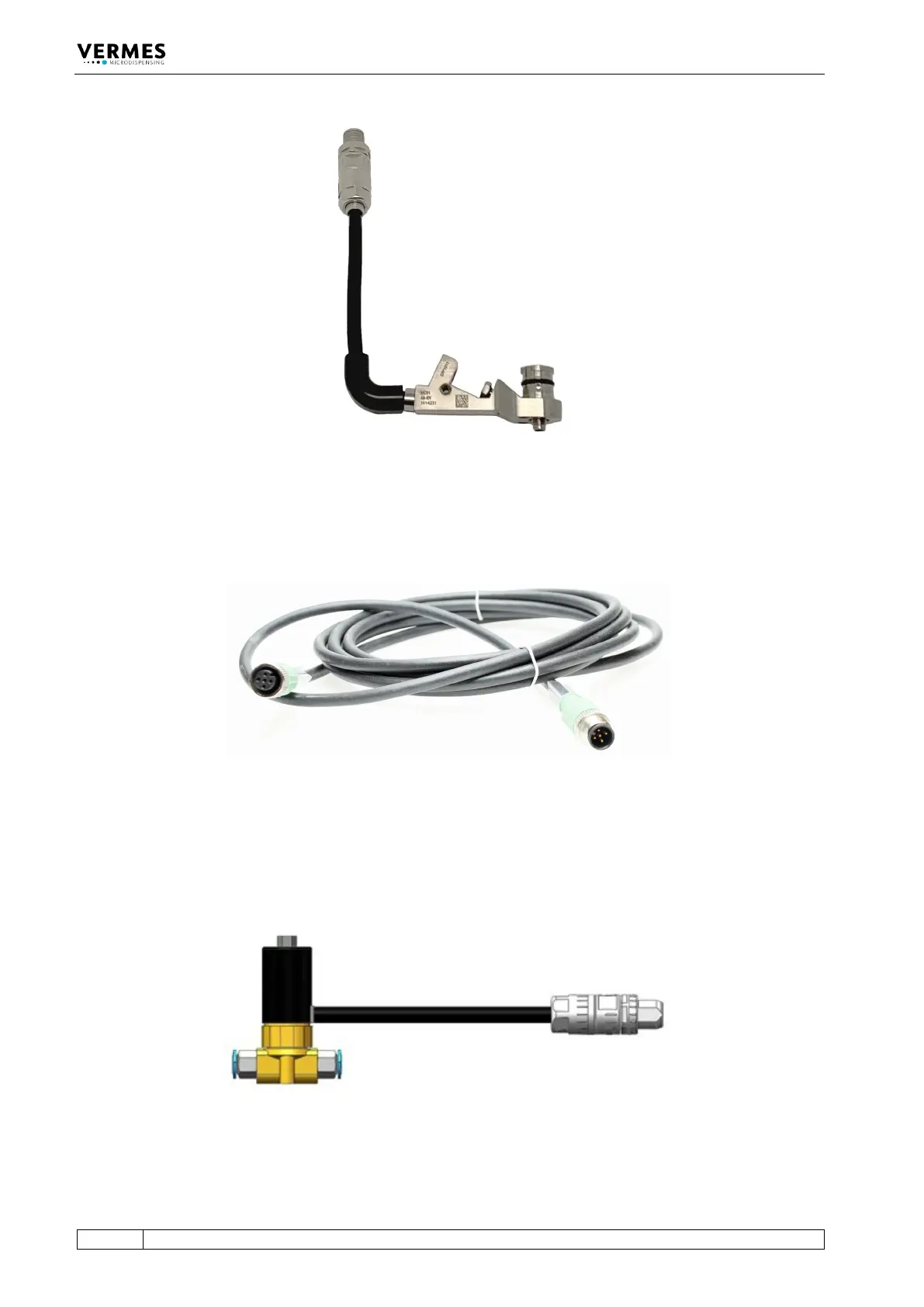

Fig. 29: Heater MDH-48-BY
The Heater Cable 48 V is available in different length (e.g. 2 m, order no. 1014064, see Fig. 30). To
connect the connector of the heater to the rear side of the control unit (“Heater”), use the heater
cable.
Fig. 30: Heater cable 48 V
6.3.3.5 Connecting a Cooler
As an example. the Flow Control Valve FCV-AC 6.0 M12 (order no. 1016265, see Fig. 31) is shown
to demonstrate the connection of a cooler.
Fig. 31: Flow Control Valve FCV-AC 6.0 M12
To connect a cooler to the MDC, you need the Connection Cable for FCV-AC/HF M12 to MDC
(length 2 m, order no. 1016252, see Fig. 32, page 55).
