6 Initial Operation
6.1 Delivery
VERMES systems are shipped in carefully packed state. Transport damages however can never be
totally excluded, and deadlines stated in insurance contracts should not be exceeded.
6.1.1 Unpacking
After receiving the merchandise:
– Check visually, if any damages can be detected.
If yes:
Detected damages must be notified to the carrier. As soon as the complaint has been confirmed
in writing, contact the responsible forwarder and inform VERMES Microdispensing.
If no damage is detected:
– Open the package.
– Remove any contained subcomponents and parts of the microdispensing system from the
package and check the delivery for completeness.
6.1.2 Content
According to the purchase order, the following components may be included; some of them are
already preassembled:
1 Control unit MDC
2 MicroDispensing Valve MDV
3 Fluid box*
4 Nozzle fixation nut*
5 Nozzle insert*
6 MDT 303 - Nozzle Insert
Changing Tool
7 MDT 329 - L-Shape hexagon Key
2 mm
8 MDT 327 – Multi-Function Tool
9 Tappet Grease TF 1 ml syringe
10 MDT 323 - Nozzle Insert –
Squeezing Out Tool TA
11 Actuator cable (red)*
12 Sensor cable (yellow)*
*These parts are included only, if ordered explicitly.

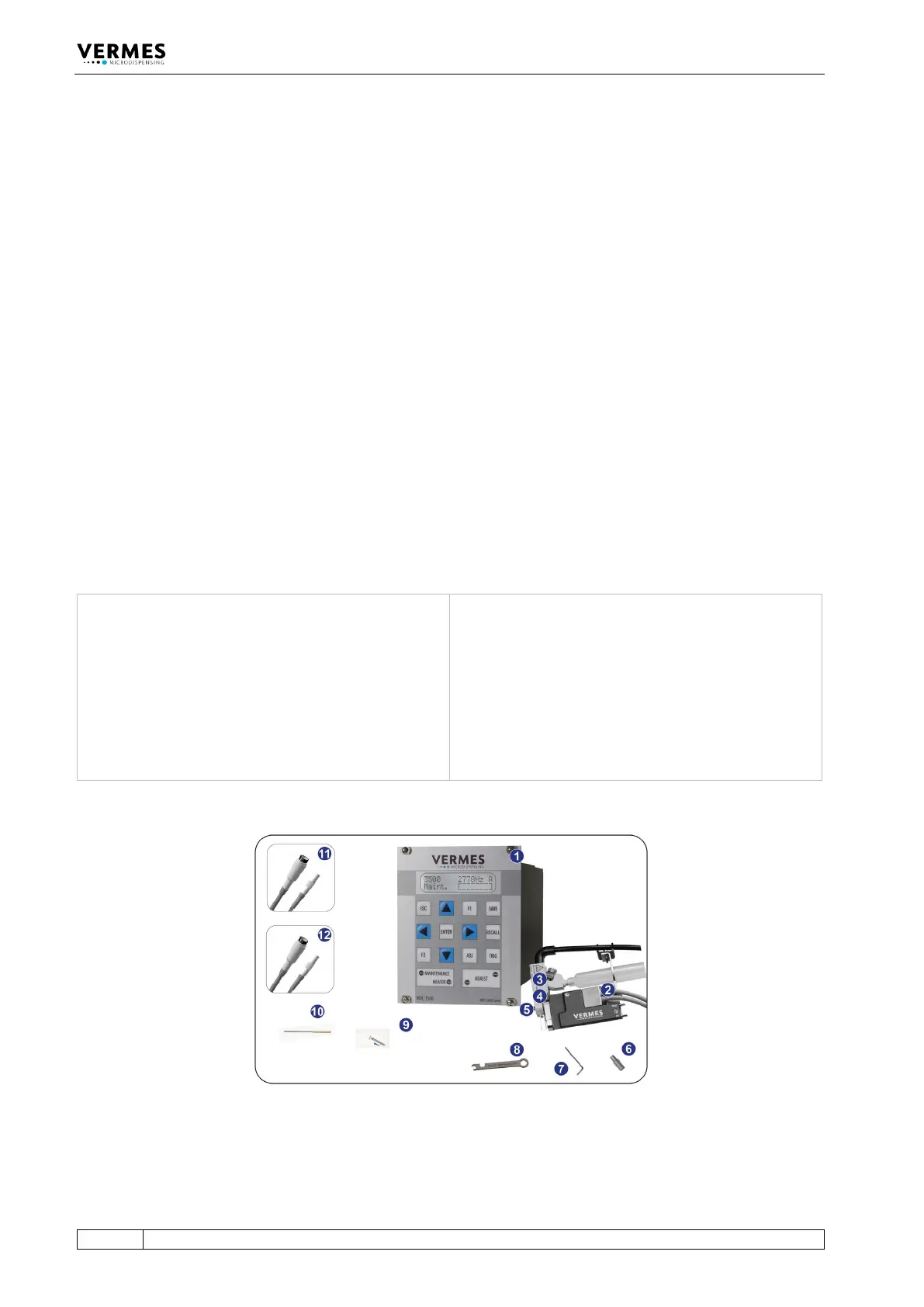

Fig. 20: Content
