Microdispensing Valve

VTK-TR-BA-072e-1 - User Manual MDS 358X Series

5.2 Explosion View Valve

The explosion view of an MDV 3580. Usually the cable connections point upwards, but on

request, they can be oriented differently, so that the cables point to the side. You can change the

orientation of the compressed air connections according to your needs. To do so, you will need a

hexagon key, size 1.5.

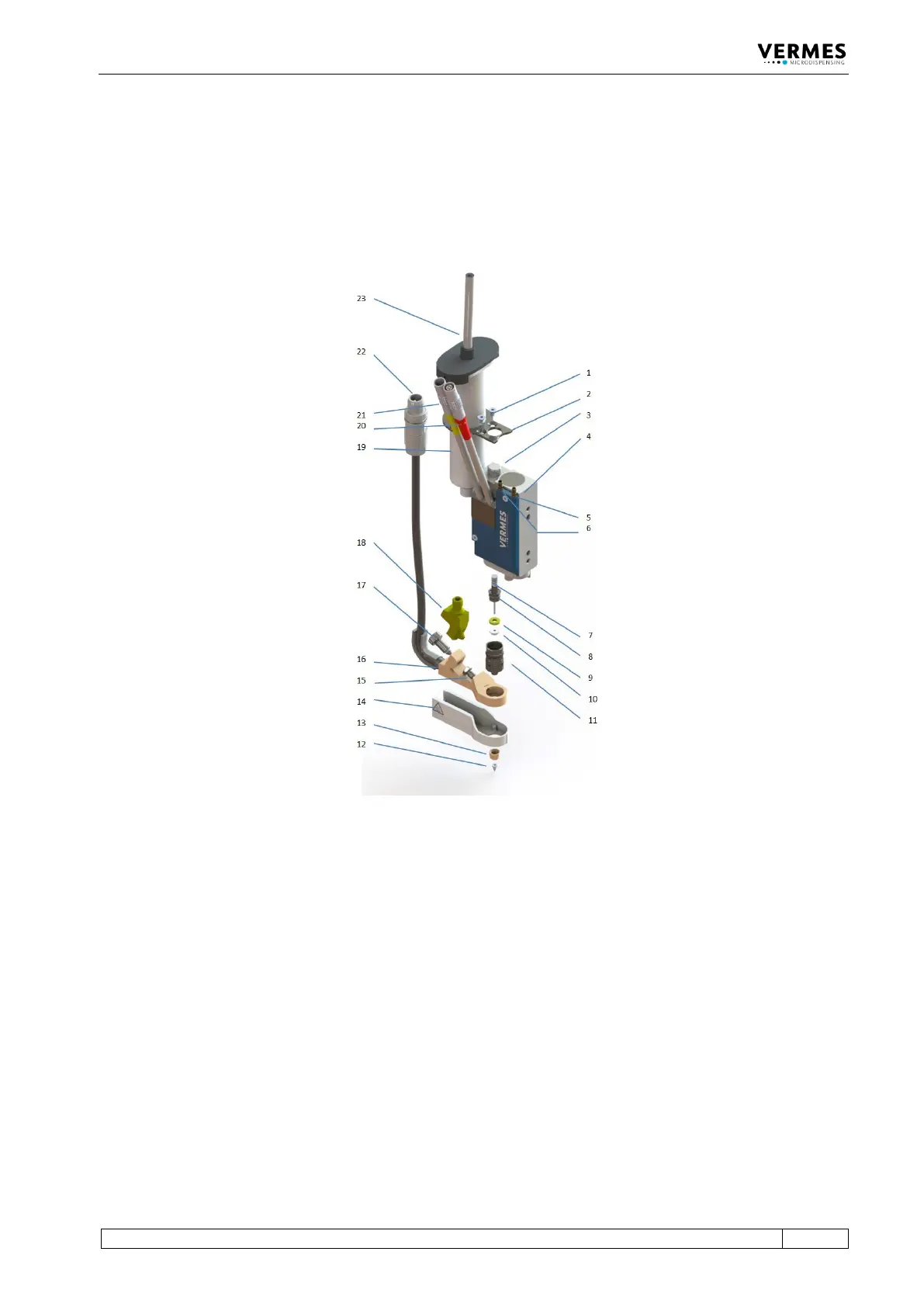

Fig. 19: Explosion view valve

1 Set of screws for cartridge holder

2 Cartridge holder

3 Adjust screw

4 Microdispensing valve

5 Connections for compressed air

for valve cooling – in (use

optional)

6 Connections for compressed air

for valve cooling – out (use

optional)

7 Tappet rod with tappet spring

8 Tappet centering screw

9 Tappet centering piece

10 Tappet sealing PE

11 Fluid box body with O-ring BY

12 Nozzle insert

13 Nozzle fixation nut

14 Isolation body (optional)

15 Connector BY

16 Heater MDH-48-BY

17 Tightening screw

18 Cartridge base CHI

19 Cartridge

20 Cable connection – Actuator

(red)

21 Cable connection – Sensor

(yellow)

22 Connection for heater cable

23 Connection for compressed air
