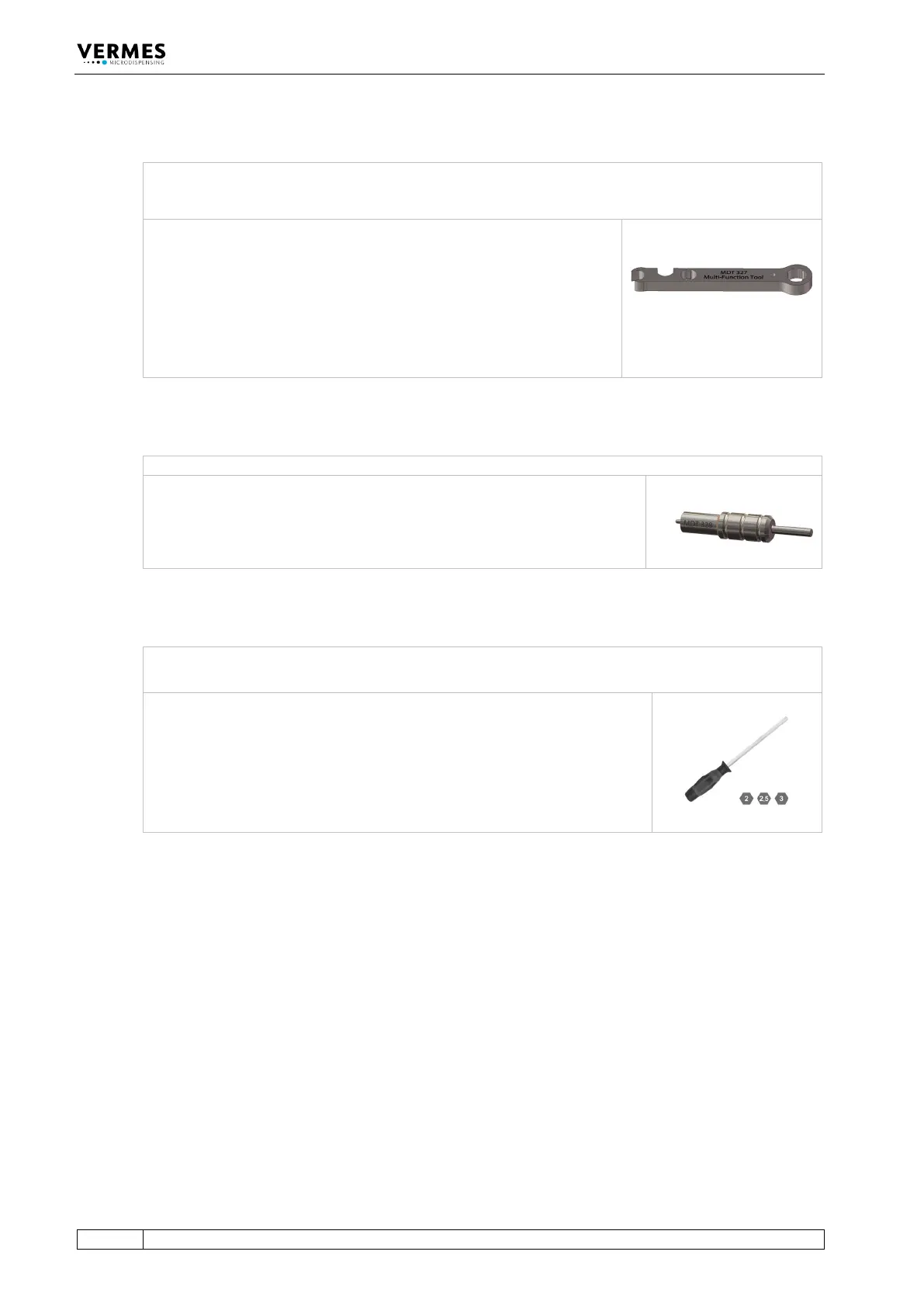

3.3.7 MDT 327 - Multi-Function Tool
The knobs of the MDT 327 grip into the nozzle adjustment nut or into the slots of the tightening screw
(gearing VM-A). Other end open-ended wrenches (size 7) and (size 8). They are needed for mounting
the system.
Intended Purpose:
1. Performing the adjust
2. Fixing the tightening screw to the fluid box
3. Fixing the Nozzle Fixation Nut
4. Opening/closing Luer-Lock connector
5. Changing of tappet guidance (in combination with MDT 303)
6. Mounting and dismounting a tappet
7. Picking up a nozzle insert
Tab. 12: MDT 327 - Multi-Function Tool (Order no. 1014440)
3.3.8 MDT 328 - Tappet Sealing Changing Tool
The MDT 328 is used to mount and demount the tappet sealing and the tappet centering piece.
Intended Purpose:
1. Squeezing out of the tappet sealing from the fluid box
2. Squeezing out of the tappet centering piece from the fluid box
3. Pushing the tappet sealing into the fluid box
Tab. 13: MDT 328 - Tappet Sealing Changing Tool (Order no. 1014503)
3.3.9 Hexagon Key Set
The set includes three hexagon keys (sizes 2, 2.5 and 3) for hex-screws, with blades made of
hardened steel and ergonomic grips.
Intended Purpose:
1. Mounting and demounting the fluid box (2)
2. Mounting and demounting the tappet guard (2)
2. Mounting and demounting the isolation body (2)
4. Mounting and demounting the cartridge holder (2 or 2.5, depending on
type)
5. Fixing of the valve, in-situ (3)
Tab. 14: Hexagon Key Set (Order no. 1012993)
