5 Microdispensing Valve
This chapter contains relevant information about the valve. It describes the structure and the
hardware configuration.
5.1 Composition
The Microdispensing valves of Vermes Microdispensing are modular. A valve is composed of
seven different modules:
• Valve body (includes Electronics module and Actuator system) (1)
• Tappet (not visible) (2)
• Tappet sealing (not visible) (3)
• Nozzle insert (not visible) (4)
• Nozzle fixation nut (5)
• Heater MDH-48-BY with fluid box (6)
• Media supply (7)

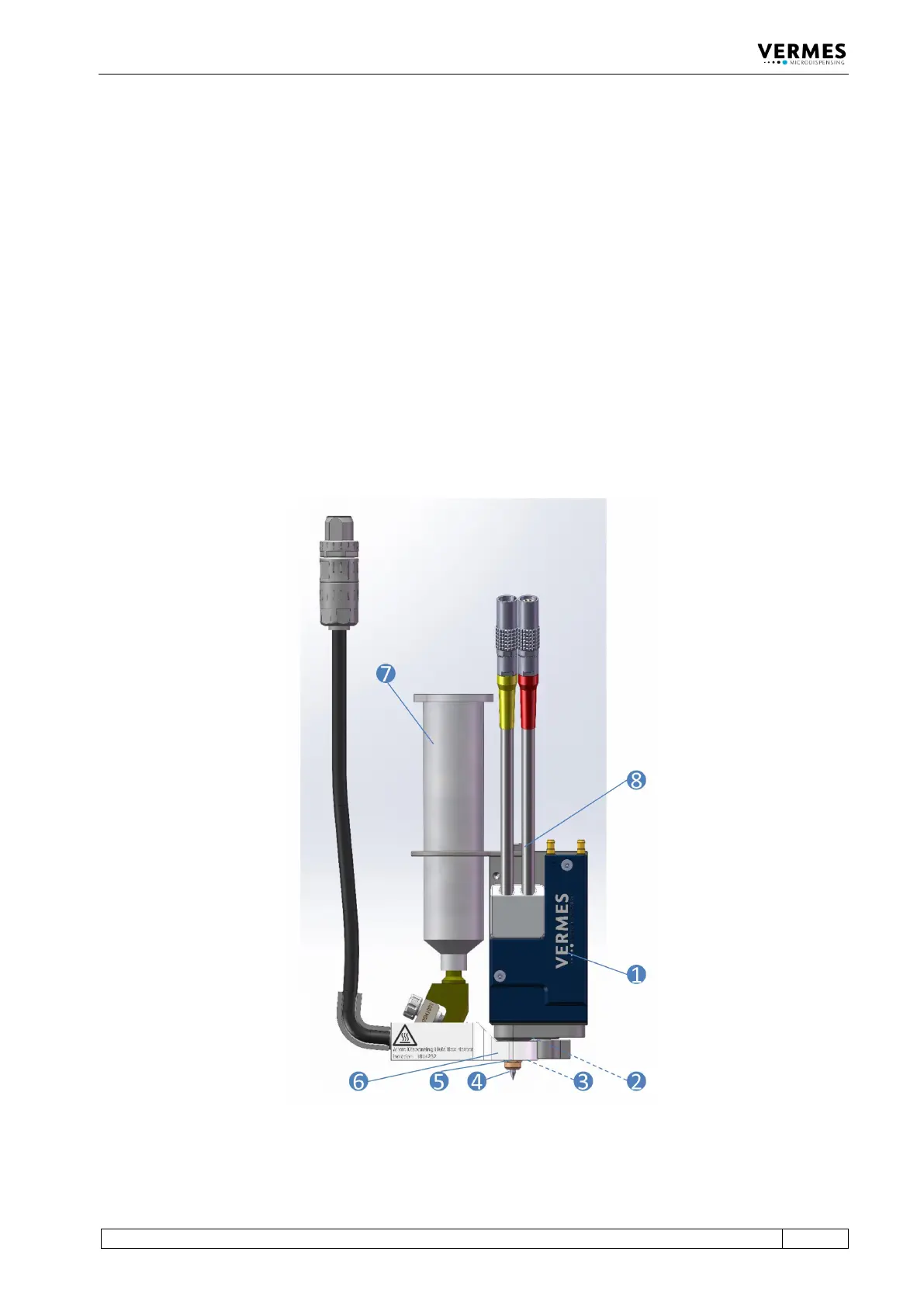

Fig. 18: Composition
