Cleaning
VTK-TR-BA-072e-1 - User Manual MDS 358X Series

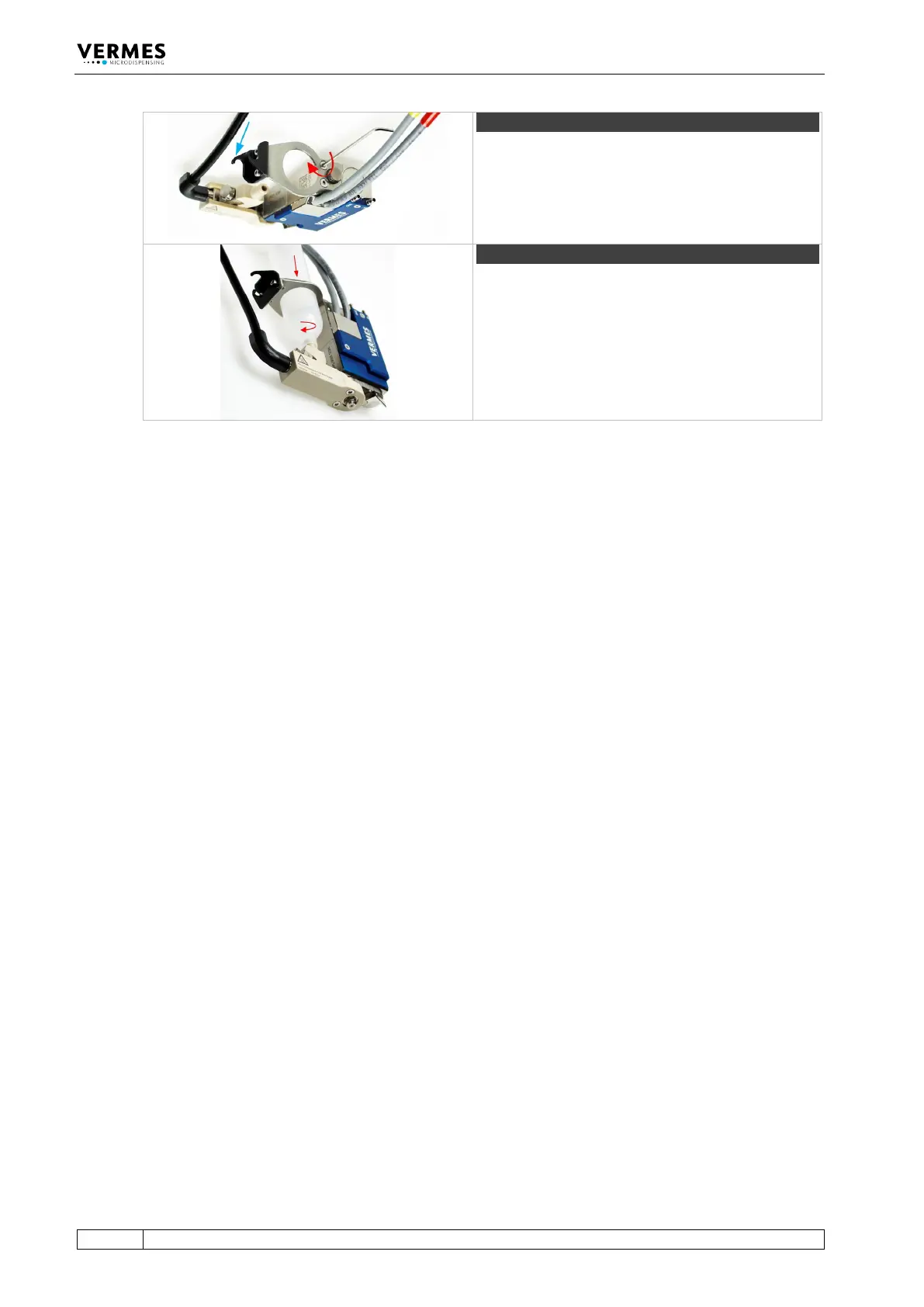

Step 10 (cartridge holder)
Screw the cartridge holder on top of the valve body
(torque between 40 – 50 cN.m). Use the MDT 329 or
a hexagon socket key size 2. Depending on the size
of the cartridge, you have to select the correct
cartridge holder. Hook the heater connection of the
fluid box into the cartridge holder (see blue arrow).
Push the cartridge through the cartridge holder and
screw it clockwise into the thread of the cartridge
base.
Tab. 31: Assembling of the valve
– Finally, connect the actuator and sensor cables as well as the compressed air. You can find
more detailed information in paragraph 6.2, page 45 and paragraph 6.3, page 49.
