VTK-TR-BA-072e-1 - User Manual MDS 358X Series
14.3 Dimensional Drawing MDV 3580

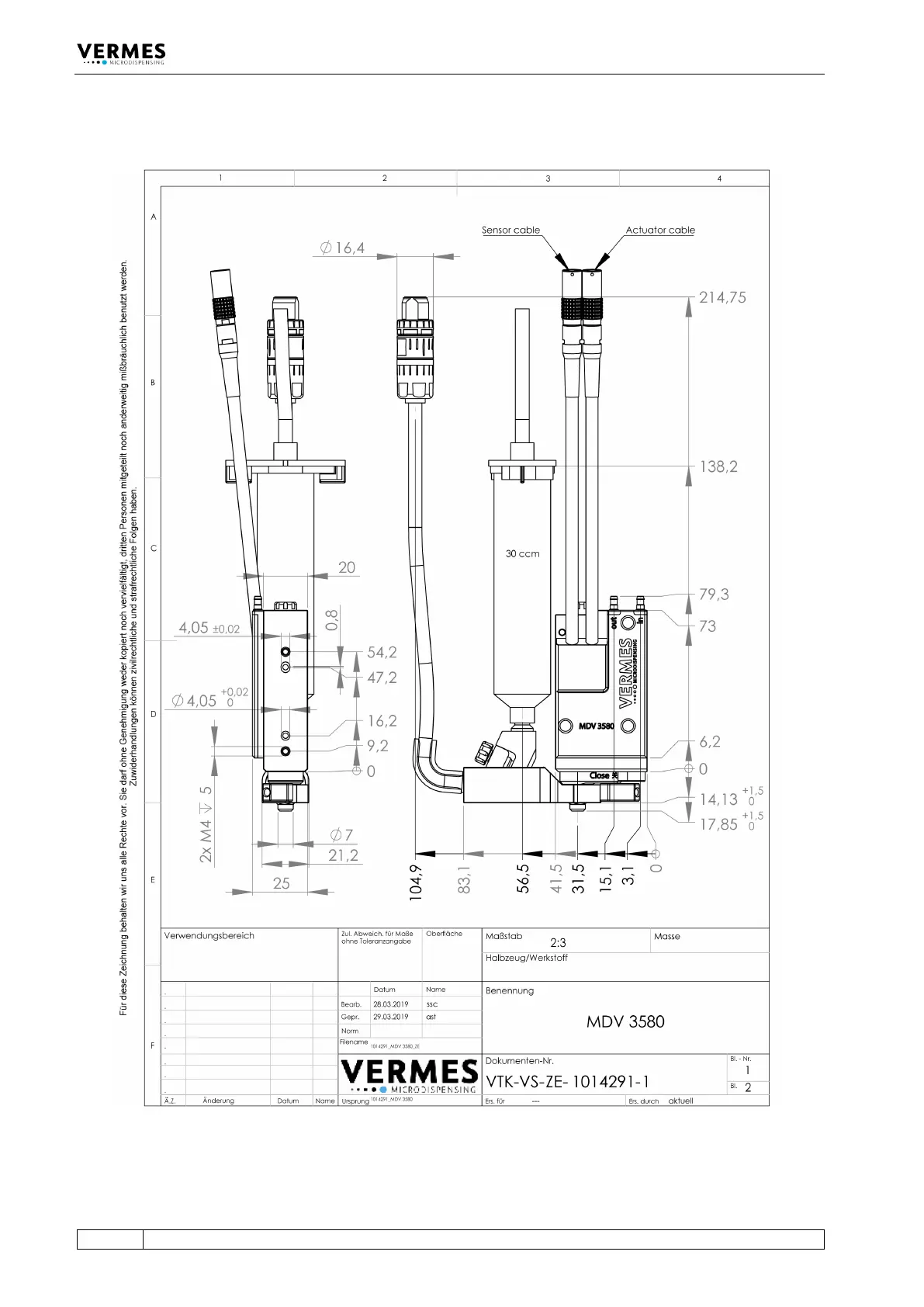

Fig. 77: Dimensional Drawing MDV 3580 front and sides
