Control Unit MDC

VTK-TR-BA-072e-1 - User Manual MDS 358X Series

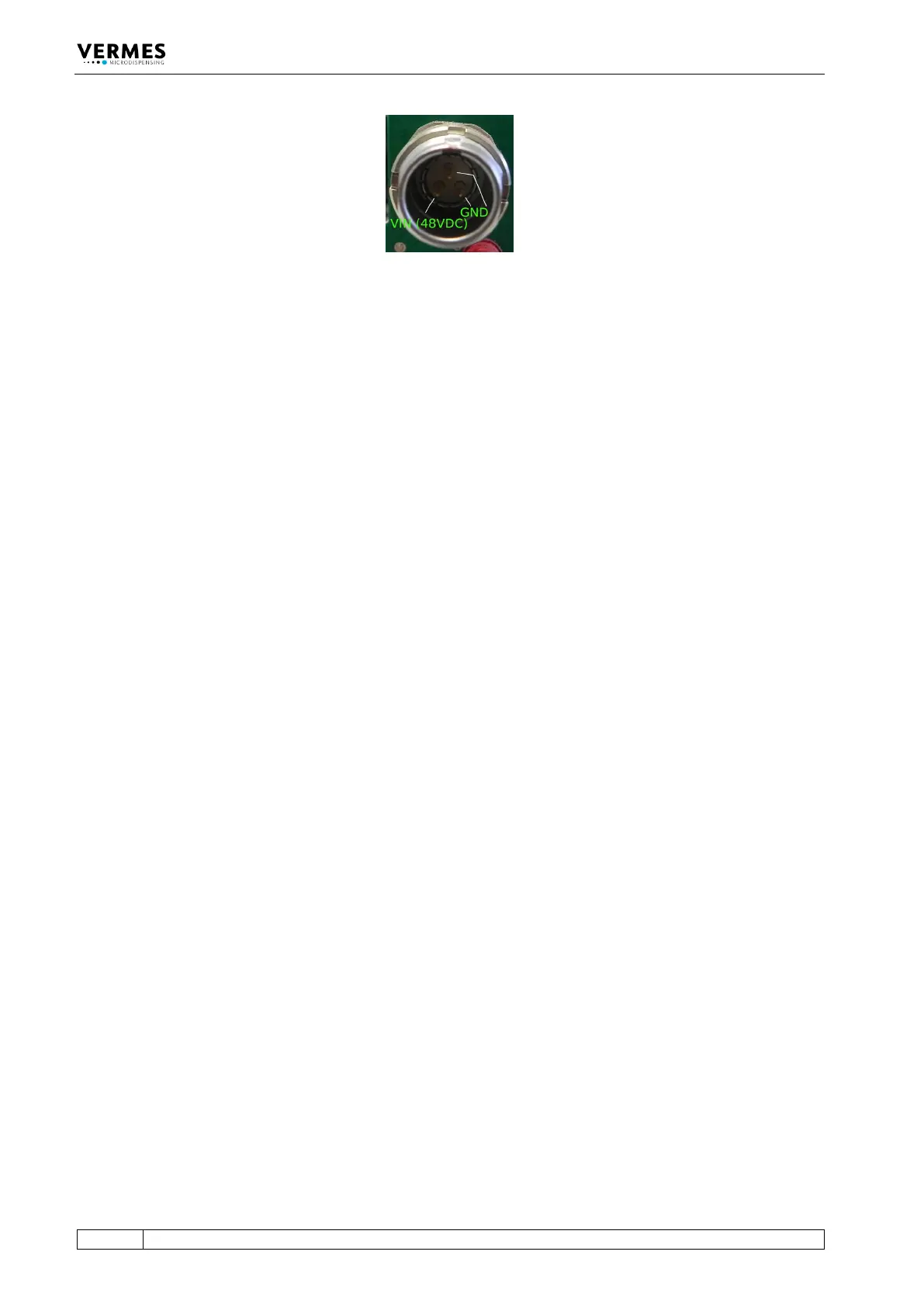

Fig. 3: Connection for power supply 48 V DC – pin functions

Actuator socket:

For the connection of the actuator cable.

10 A fuse:

For the protection of the electronic parts inside of the control unit.

PLC interface (15-pin):

Different inputs and outputs may be connected. For the communication protocol, refer to (see

paragraph 7.8 "Select Pins", page 68).

Socket for cooling:

The connection cable for FCV (for the valve cooling) has to be connected here.

Socket for heating:

The heater cable has to be connected here.
