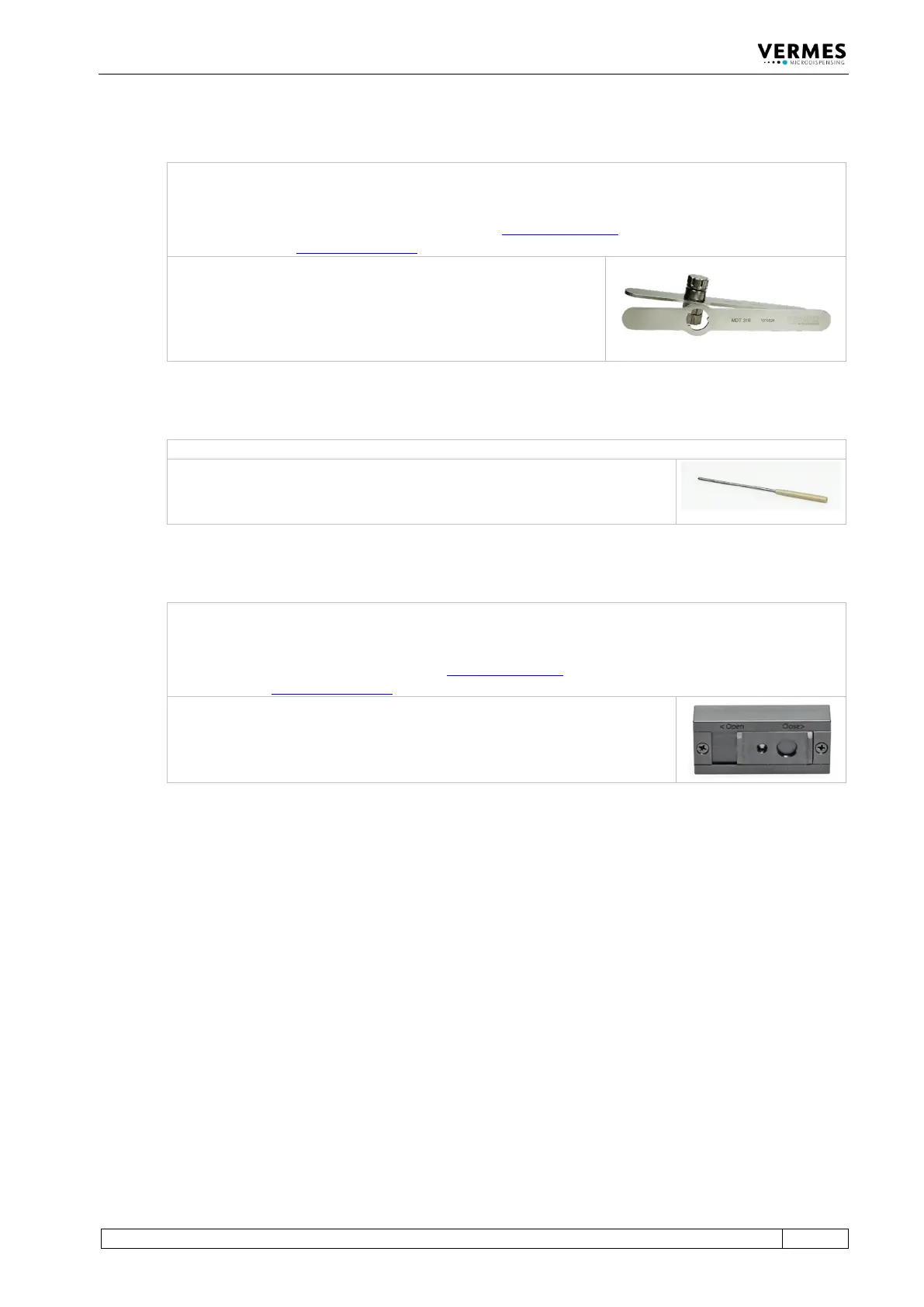

3.3.4 MDT 316 - Nozzle Insert Cleaning Tool
The MDT 316 is used to clean clogged nozzle inserts made of carbide metal, ceramics or diamond
(series N11 to N22). This is achieved by pumping a fat or grease with high pressure through the nozzle
channel. Additional information is in the Quick Reference Guide MDT 316 Nozzle Insert Cleaning Tool.
You can download it from the VERMES homepage (
www.vermes.com). The necessary password you can
get from our sales (sales@vermes.com).
Intended Purpose:
1. Cleaning of clogged nozzle inserts
Tab. 9: MDT 316 - Nozzle Insert Cleaning Tool (Order no. 1013324)
3.3.5 MDT 323 - Nozzle Insert – Squeezing Out Tool TA
The MDT 323 has a thin and a wide end. Both are meant for different applications.
Intended Purpose:
1. Detaching the nozzle insert from the fluid box (thin end)
2. Detaching the tappet sealing (wide end)
Tab. 10: MDT 323 - Nozzle Insert – Squeezing Out Tool TA (Order no. 1014283)
3.3.6 MDT 324 - Nozzle Insert Cleaning Holder
The MDT 324 has a receptacle, in which the nozzle insert is placed to be held tight. Then you can clean
the nozzle insert with compressed air without the danger of blowing it away accidently. Additional
information is in the Quick Reference Guide “Nozzle Insert Cleaning Holder MDT 324”. You can
download it from the VERMES homepage (
www.vermes.com). The necessary password you can get
from our sales (sales@vermes.com).
Intended Purpose:
1. For holding a nozzle insert during cleaning with compressed air
Tab. 11: MDT 324 - Nozzle Insert Cleaning Holder (Order no. 1014310)
