Setting Up
38
2.2.2 Low Pressure Oxygen Supply
1. Connecting a Low Pressure O
2
Supply Adapter requires a Low
Pressure O
2
Filter/Adapter,
fitted with a 22mm female port.
Remove the air inlet filter by
turning it counterclockwise.
Then install the Low Pressure
O
2
Filter/Adapter with a
clockwise turn.
2. You are now ready to connect
the Low Pressure O
2
Supply
Adapter to the air inlet port of
the ventilator.

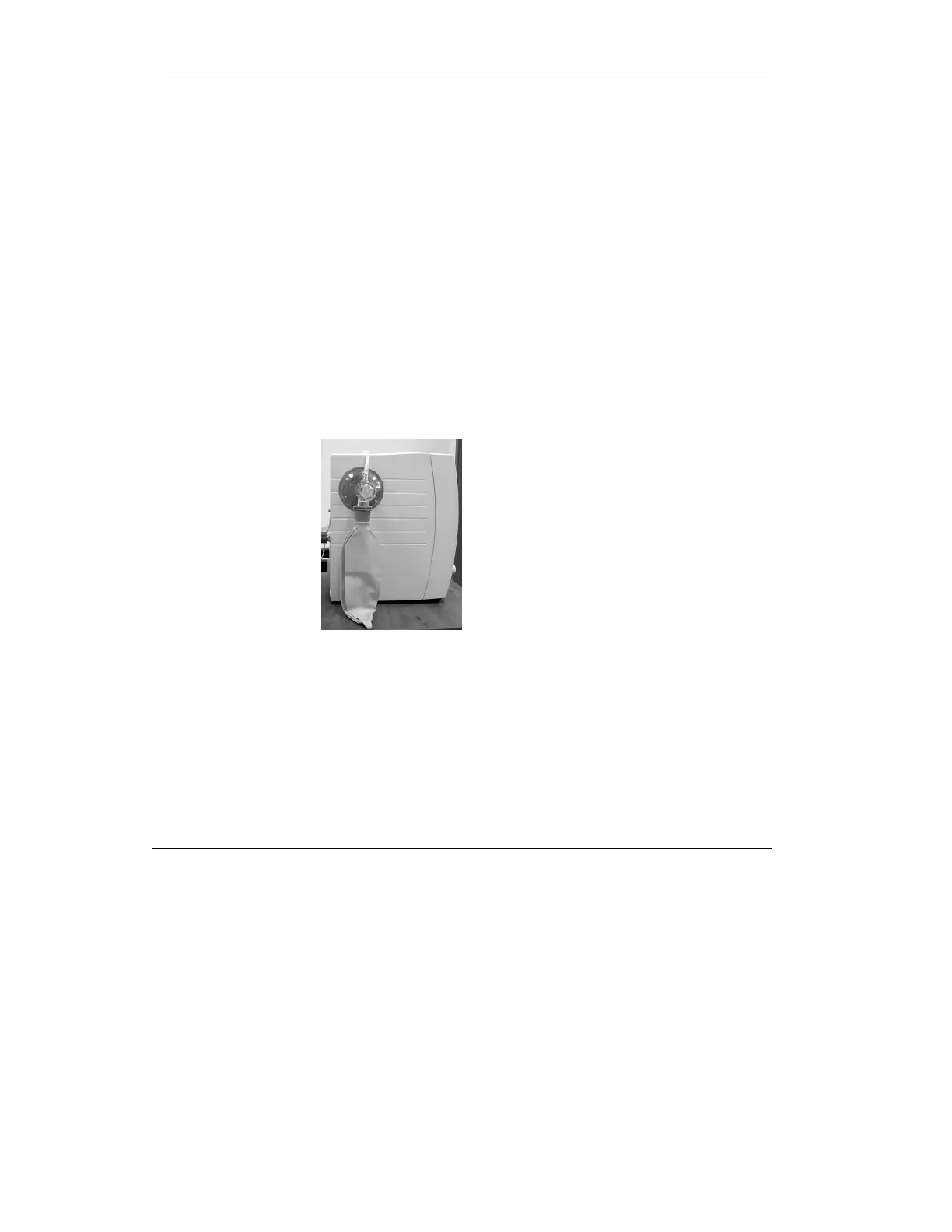

Figure 2.10 Low Pressure O
2
supply adapter and filter installed
3. Be sure that “Low” is selected
under “Oxygen Supply
(Pressure)” in the Advanced
Settings menu (see page 132).
CAUTION: Do not attempt to use the FiO
2
option above
60% when using a low pressure oxygen supply.
