VHF E5 - Page 56

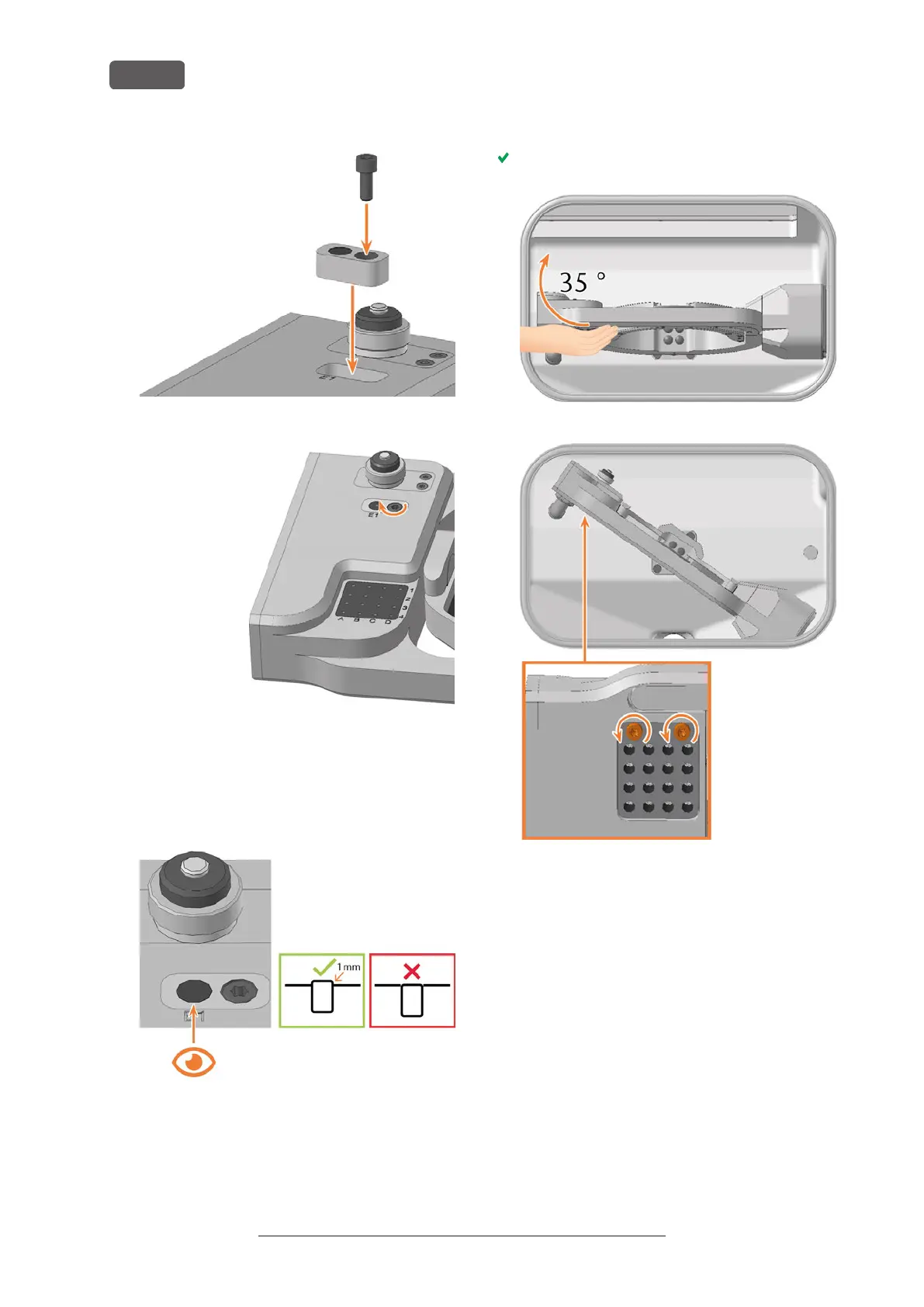

FIG. 121
FIG. 122
13. Ensure that the top of the AirTool insert is 1mm
above the surface of the A-B axis module.
If this is not the case, realign the insert or holder.
FIG. 123
14. Turn the A-B axis module clockwise by 35°.
15. Unscrew the 2 screws on the tool magazine insert
holder on the lower left side of the A-B axis module.
The tool magazine holder and the screws slide
into your hand.
FIG. 124
FIG. 125
Original Operating Instructions:E5
Version: 4/27/2023
Maintenance
EN 56
