FIG. 126

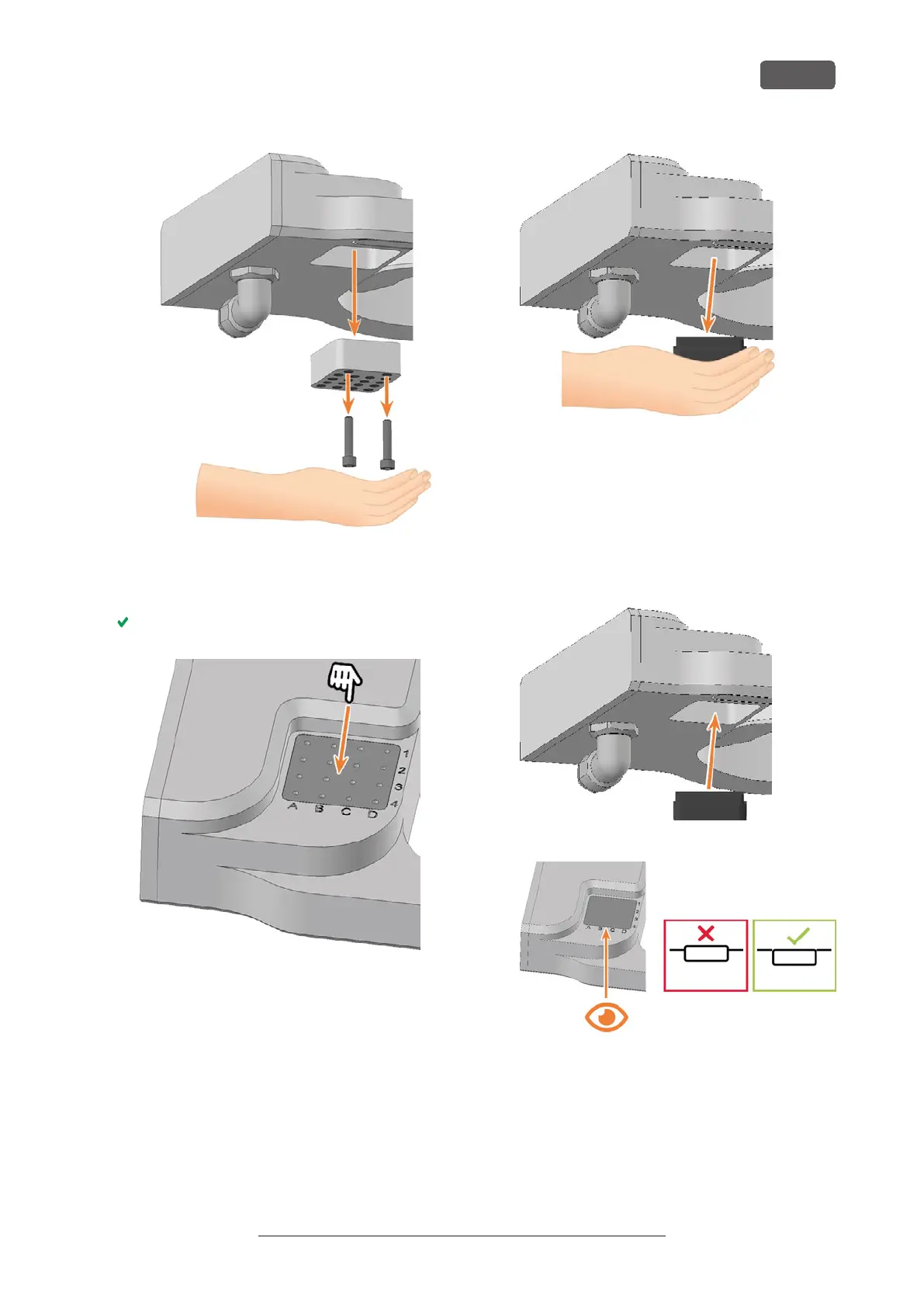

16. Press the tool magazine insert down out of the
opening.
The tool magazine insert slides out of the opening
into your hand.
FIG. 127
FIG. 128
17. Get the required spare parts.
18. Insert the tool magazine insert from below into the
opening and clamp it.
Ensure that the top of the tool magazine insert is
flush with the surface of the A-B axis module.
If this is not the case, correct the position of the
insert.
FIG. 129
FIG. 130
19. Align the holder so that the screw holes are located
at the front edge of the opening. Insert the holder
into the opening.
