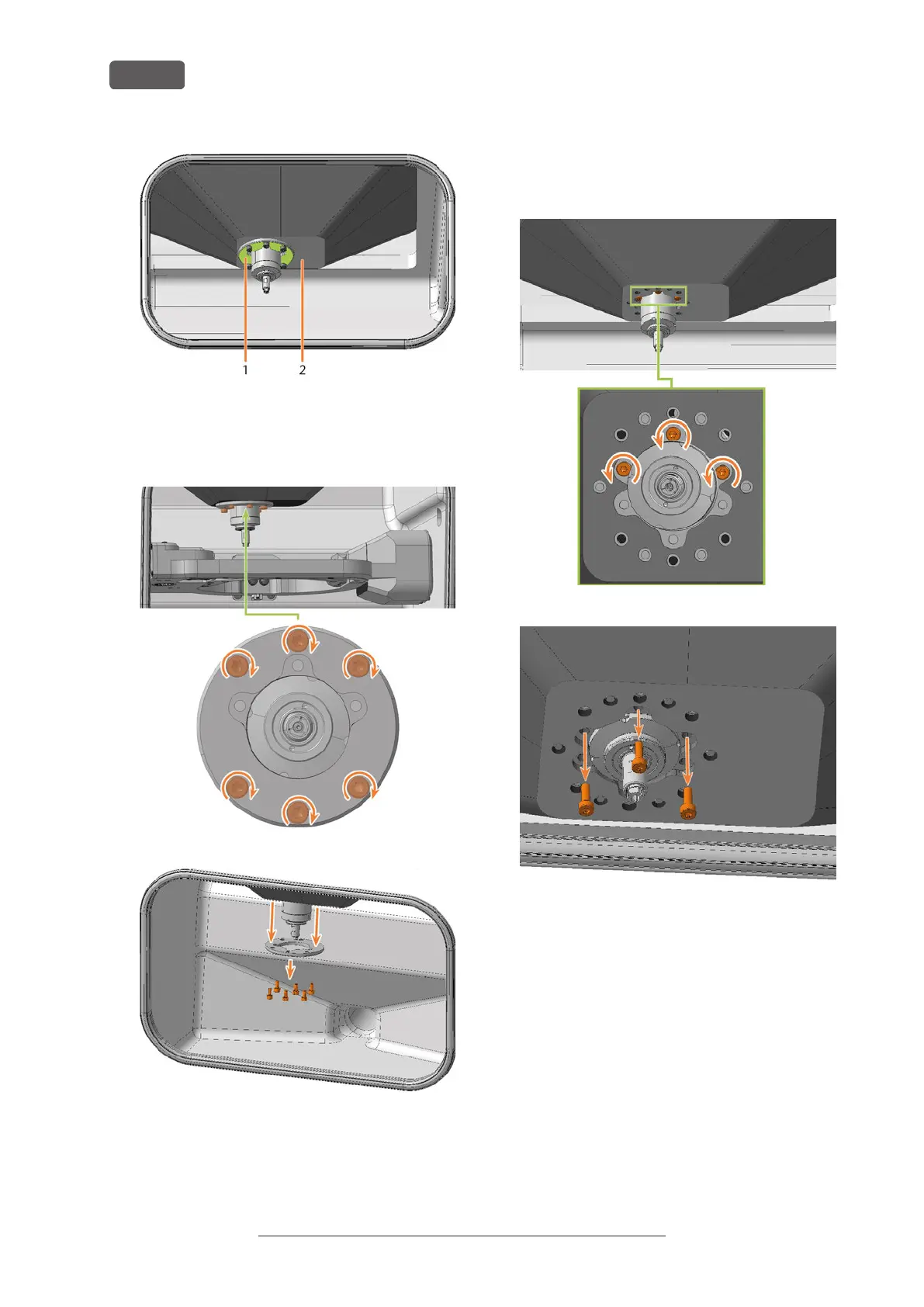

FIG. 138
1. Mounting washer
2. Bellow
FIG. 139
FIG. 140
9. Using the TX10 angle screwdriver, loosen the 3
screws securing the bellow.
10. Pull the bellow down over the spindle until the
bellow has reached maximum expansion.
11. Close the working chamber door.
FIG. 141
FIG. 142 SPINDLE SHOWN IN HIGHER POSITION FOR CLARITY
