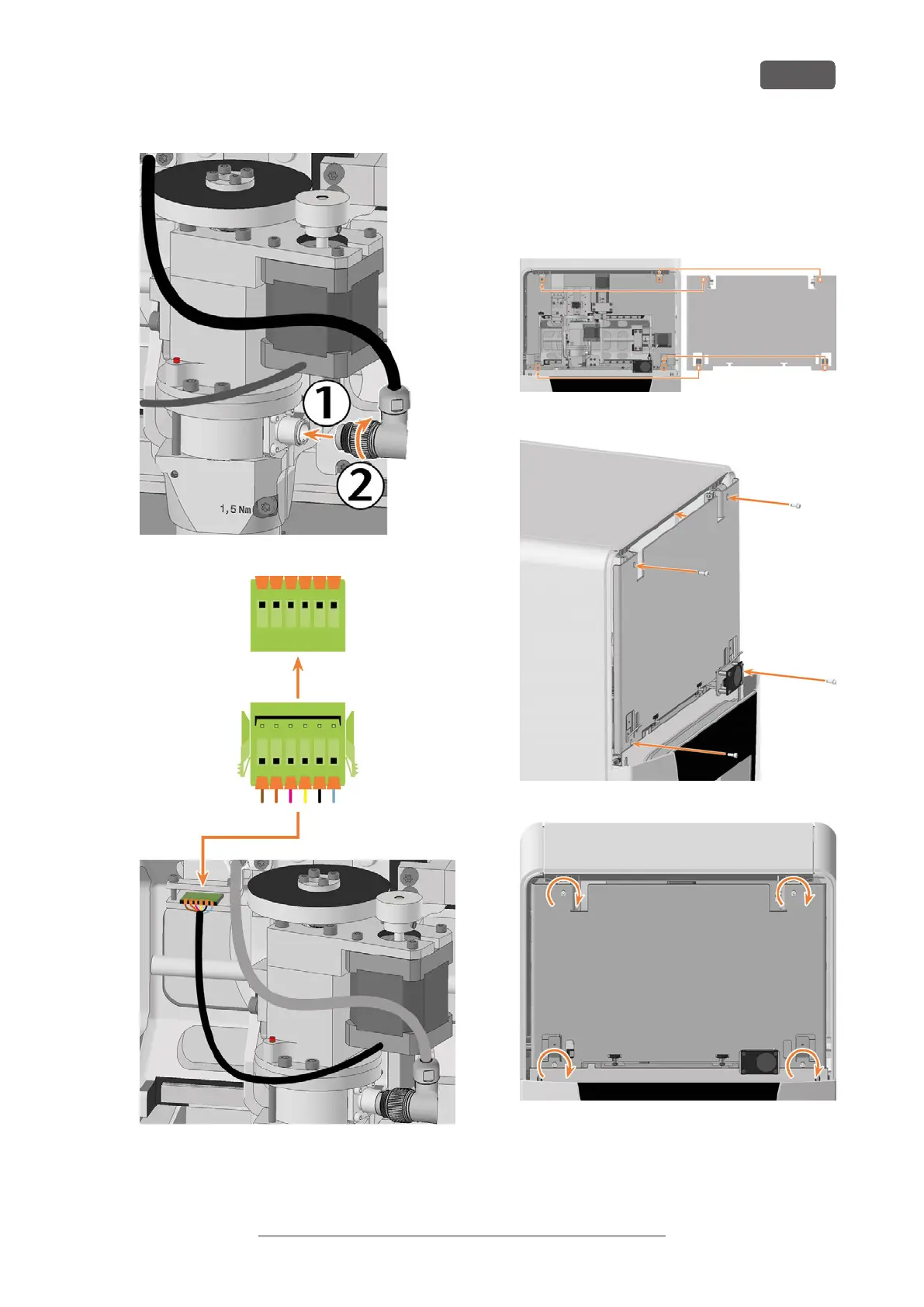

FIG. 177
FIG. 178
22. Position the safety cover so that the 4 screw holes
are located above the 4 screw holes in the machine
housing.
23. Secure the safety cover to the machine housing
using the 1.5 Nm torque screwdriver.
FIG. 179
FIG. 180
FIG. 181
24. Attach the top service cover:
Maintenance
EN 71
Original Operating Instructions: E5
Version: 4/27/2023
